Summary
- Min Lifting Height:3m
- Max Lifting Height:6m
- Rated Loading Capacity:3000kg
- Power Source:battery
- Type:3 ton electric forklift
- Model Number:XCB-L30
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
Specifications
- Weight:5100.000kg
- Condition:New
- Moving Type:Other
- Load center distance:500mm
- Min.Turning radius:2770mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

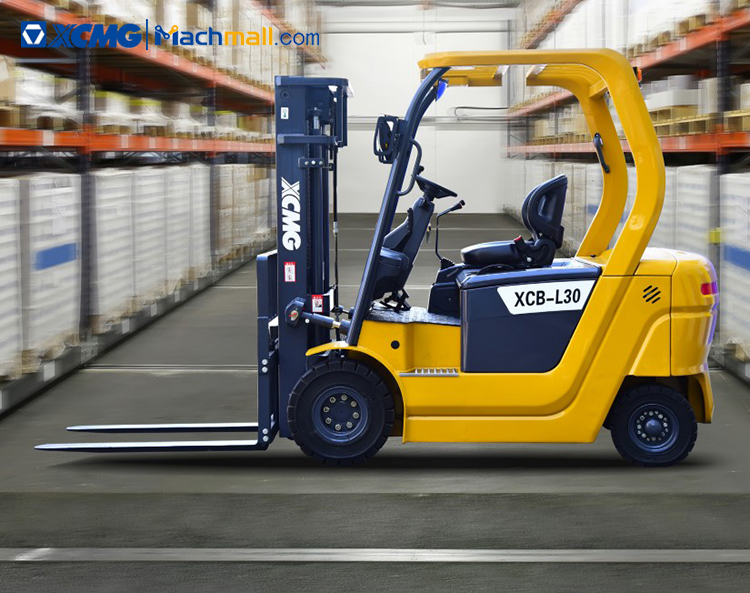

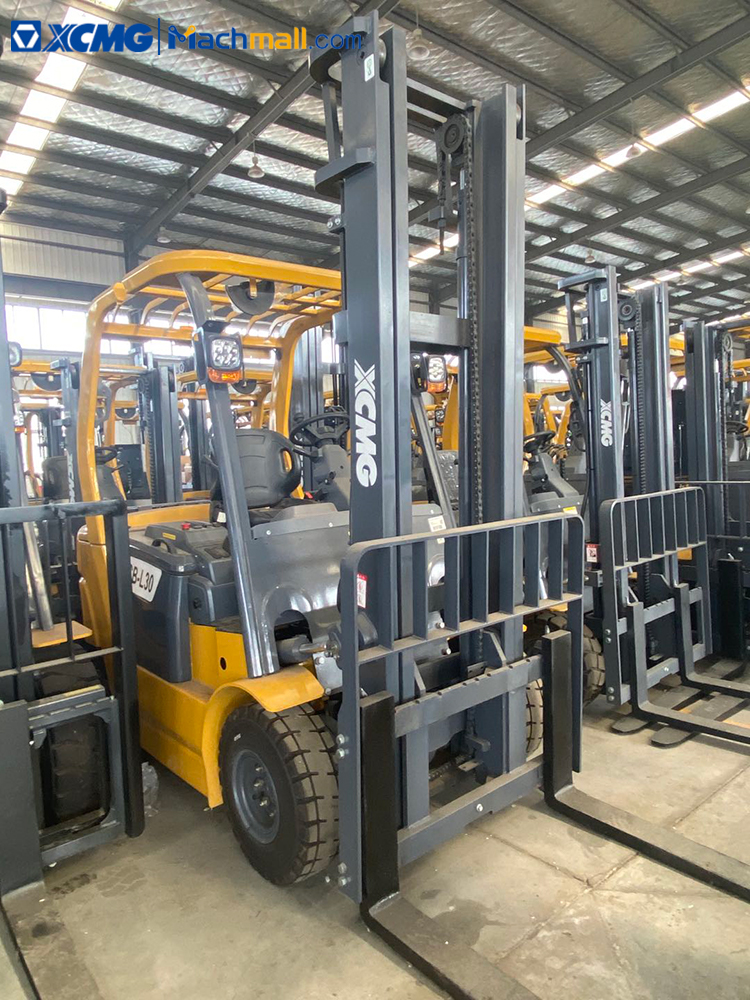

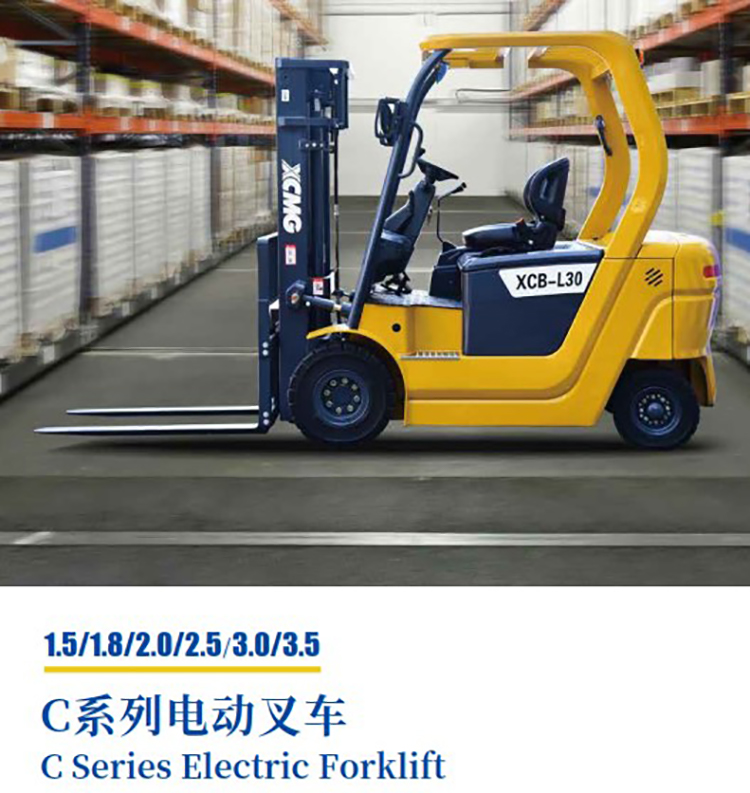

XCMG 3 ton forklift with 80V battery 2 - 7m mast height.
XCMG 3 ton forklift with 80V battery 2 - 7m mast height has a novel appearance and breaks through the industry's shape. The roof guard and the car body are integrally connected. It has strong performance. It has four speed modes, two lifting modes and a climbing ability comparable to internal combustion forklifts.

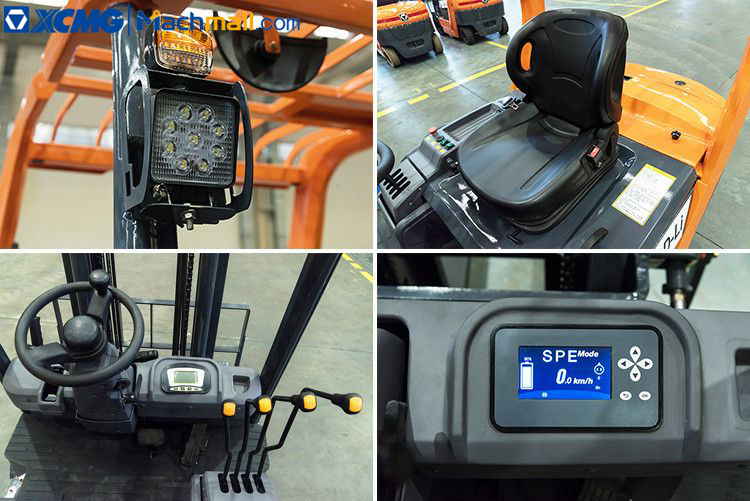

Features:
1.Safe and reliable: starting, accelerating, and braking smoothly; hydraulic system adopts double seal; sixth-generation hydraulic cylinder, internal circulation oil circuit, on-load buffer
2.Convenient maintenance: tool-free disassembly of cover parts, larger maintenance space, and more accessible maintenance location.
3.Comfortable operation: dual-degree-of-freedom steering mechanism to create a more comfortable operation experience.
4.Super performance: four speed modes, two lifting modes and climbing ability comparable to internal combustion forklifts.
5.Diversified configurations: with rich product configurations to meet the differentiated needs of customers.
Model |
Unit |
XCB-L30 |
||
Rated capacity |
kg |
3000 |
||
Load center distance |
mm |
500 |
||
Size |
Max.lifting height |
mm |
3000 |
|
Free lifting height |
mm |
145 |
||
Mast tilt angle front/rear |
° |
6/12 |
||
Length fork excluded |
mm |
2555 |
||
Width |
mm |
1270 |
||
Mast height |
mm |
2060 |
||
Overhead guard height |
mm |
2200 |
||
Min.under clearance |
mm |
135 |
||
Wheel base |
mm |
1680 |
||
Min.Turning radius |
mm |
2770 |
||
Performance |
Travelling speed loaded/unloaded |
km/h |
16/17 |
|
Lifting speed loaded/unloaded |
mm/s |
330/450 |
||
Gradeability loaded/unloaded |
% |
15/17 |
||
Motor&Battery |
Motor |
Drive motor power |
kW |
16.6 |
Pump motor power |
kW |
13.5 |
||
Battery |
Voltage |
V |
80 |
|
Amphere |
Ah |
420/450/540 |
