XCMG manufacturer QY20B 20 ton mobile truck crane price
Summary
- Model Number:QY20B
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Max. Lifting Height:32.7m
- Max. Lifting Load:20 ton
Specifications
- Weight:26020.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

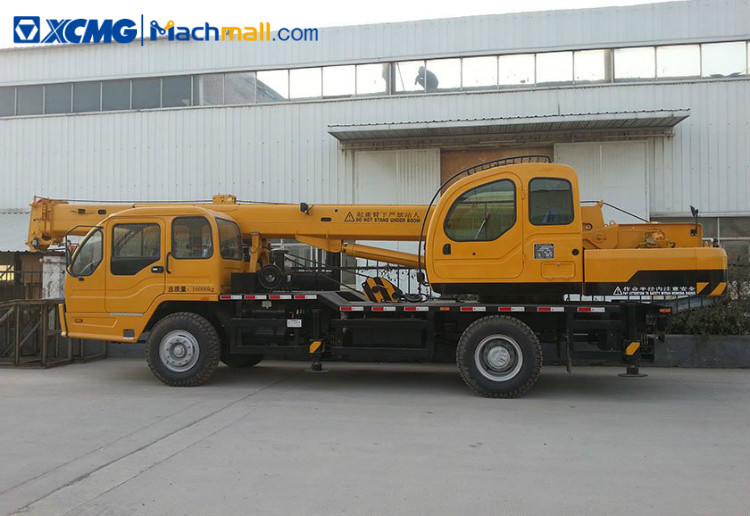

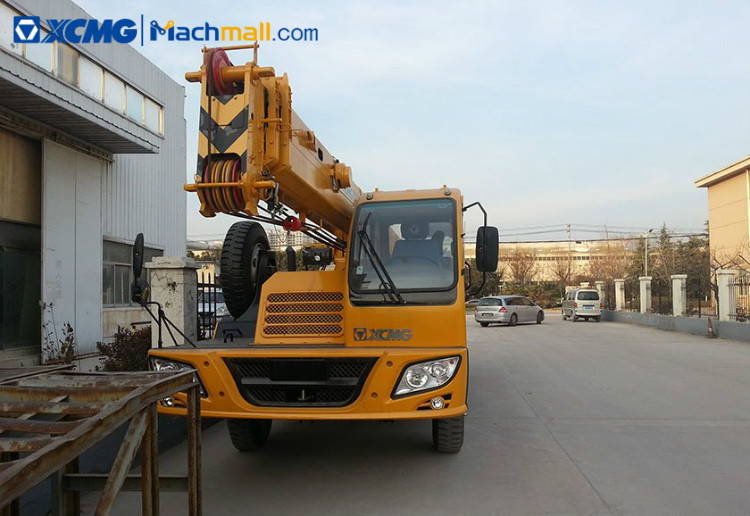

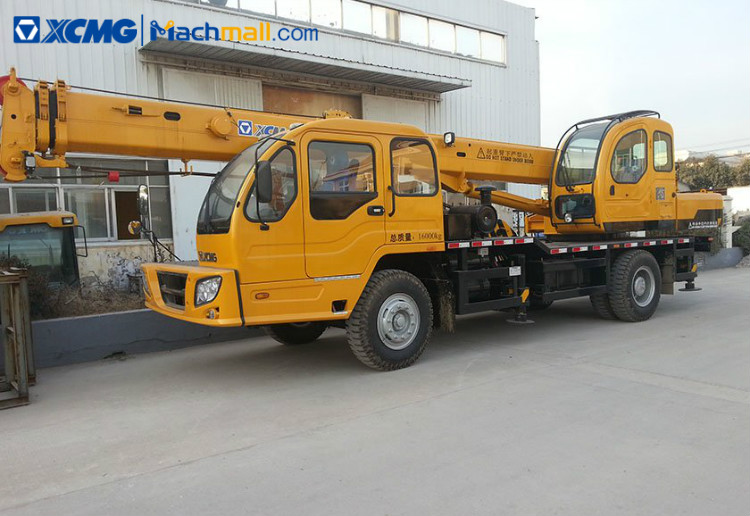

XCMG manufacturer QY20B 20 ton mobile truck crane.
XCMG QY20B 20 ton mobile truck crane is very popular in the market. The perfect integration of the design and structure realizes the automation of welding, which is more reliable.
Main parameters:
Max. rated total lifting capacity: 20T
Fully extended boom: 24.5M
Fully extended boom+jib:32M
Main configuration:
* SHANGCHAI engine,D6114ZLQ5B
* Wire rope
* Hirschmann PAT
*Heater
*Full dimension cab
|
Dimension |
Unit |
QY20B |
|
Overall length |
mm |
12350 |
|
Overall width |
mm |
2500 |
|
Overall height |
mm |
3355 |
|
Weight |
|
|
|
Total weight in travel |
kg |
26020 |
|
Front axle load |
kg |
6900 |
|
Rear axle load |
kg |
19120 |
|
Power |
|
|
|
Engine model |
|
D6114ZLQ5B |
|
Engine rated power |
kW/(r/min) |
165/2000 |
|
Engine rated torque |
N.m/(r/min) |
1100/1400 |
|
Travel |
|
|
|
Max. travel speed |
km/h |
75 |
|
Min. turning diameter |
m |
20 |
|
Min. ground clearance |
mm |
270 |
|
Approach angle |
° |
21 |
|
Departure angle |
° |
11 |
|
Max. grade ability |
% |
35 |
|
Fuel consumption for 100km |
L |
≈35 |
|
Main performance |
|
|
|
Max. rated total lifting capacity |
t |
20 |
|
Min. rated working radius |
mm |
3000 |
|
Turning radius at turntable tail |
m |
3.385 |
|
Max. lifting torque |
kN.m |
860 |
|
Base boom |
m |
10.06 |
|
Fully extended boom |
m |
32.76 |
|
Fully extended boom+jib |
m |
42.12 |
|
Longitudinal outrigger span |
m |
4.97 |
|
Lateral outrigger span |
m |
5.4 |
