Summary
- Rated Load:2.5tons
- Dimension(Long*Breadth*High):6075*2350*3520mm
- Type:Wheel loader digger
- Place of Origin:Xuzhou, China
- Model Number:XC870HK
- Brand Name:XCMG
- Certification:CE / ISO
Specifications
- Weight:8200.000kg
- Condition:New
- Moving Type:Wheel
- Max. digging depth:4320mm
- Max. breakout:66kn
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

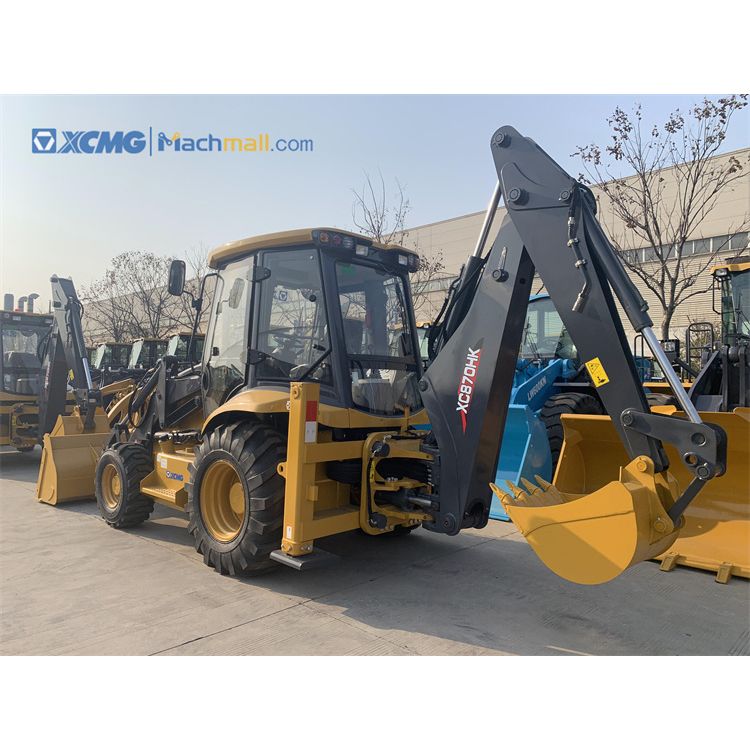

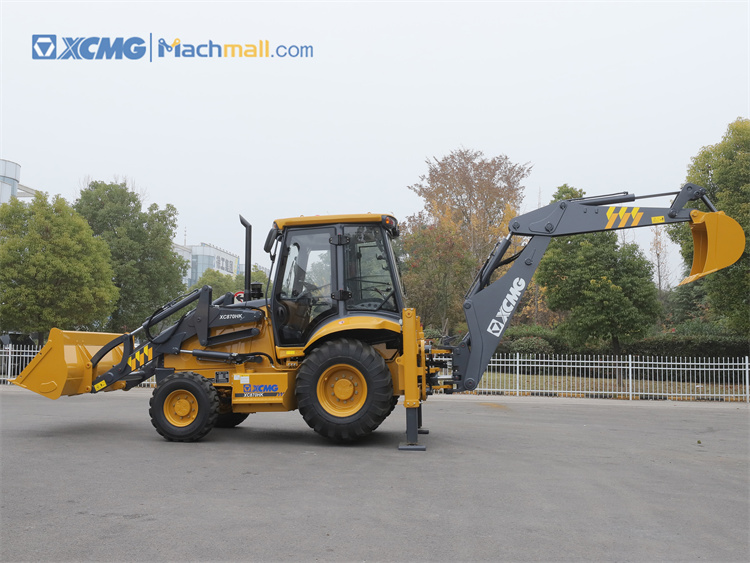

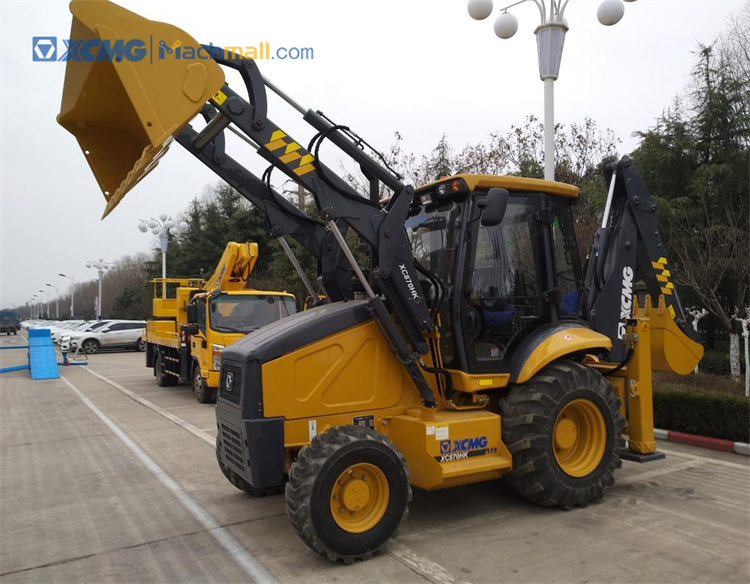

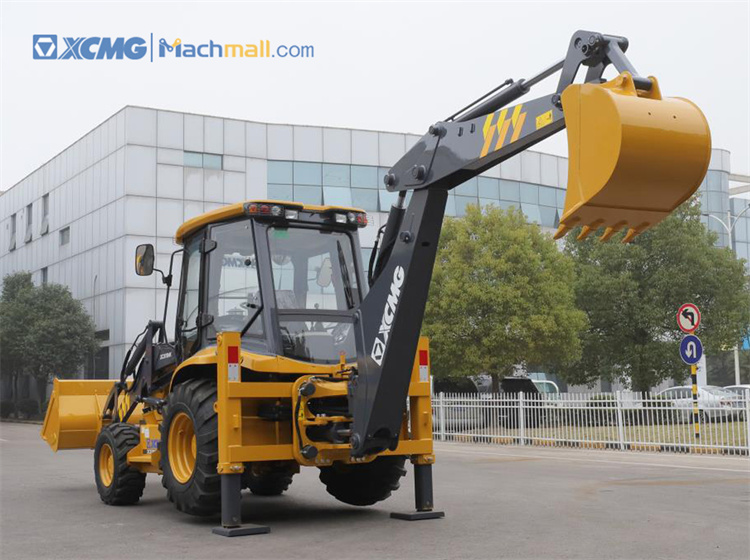

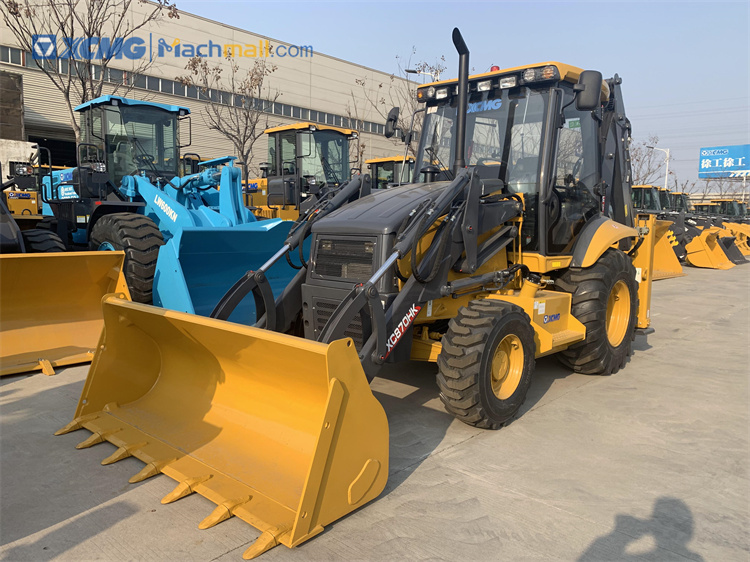

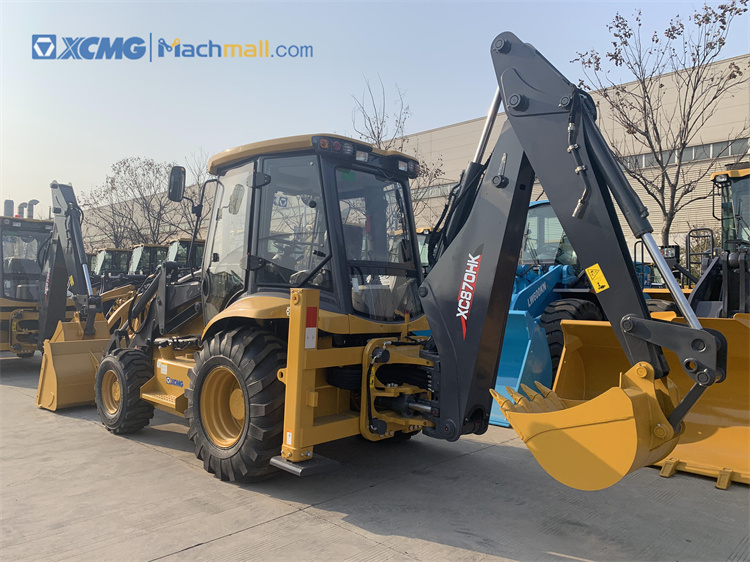

XCMG official 2.5ton Wheel Loader Digger XC870HK.
XCMG XC870HK wheel loader digger can meet the customized needs of special construction environments such as high temperature, low temperature, plateau, and heavy dust.
XC870HK wheel loader digger can be applied with diversified environment adaptability technologies, including the high temperature, low temperature, highland, and heavily dusty environments, upon the user’s customization.
Advantages and Highlights:
1, The advanced structure and hinge points on the digging end as well as the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.
2, Digging End: the high strength structural design features high operation efficiency, with the breakout force up to 63kN.
3, Loading End: the design optimized and industry leading 8-link working device features good levelness of bucket and rapid operations.
The ultra-high discharge height (2770mm) and ultra-high breakout force (66kN) lead the similiar products.
4, The 360° panoramic view luxury cab with air conditioning system features large space, good sound and heat insulation, and good shock absorption. With openable side windows and rear window, the cab realizes broader visual field and comfortable operations.
Optional attachments:
1, The digging end can be equipped with various attachments, including breaking hammer, twist drill, vibrating tamper, hydraulic shear, and planer.

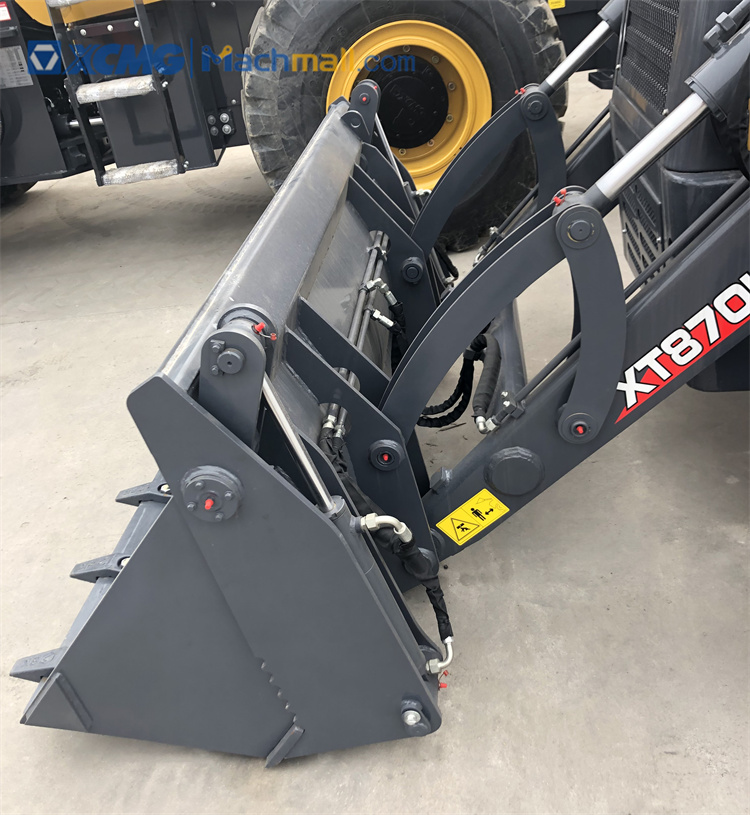

2, The loading end can be equipped with 4in1 bucket, manhole cover planer, snow shovel, and forks.
|
Description |
Parameter Value |
Unit |
||||
|
Chassis type |
|
integrated |
|
|||
|
Drive style |
|
4 drive/2 drive |
|
|||
|
Digging working device |
|
middle |
|
|||
|
Outline dimensions(L×W×H) |
|
6075×2350×3520 |
mm |
|||
|
Total weight |
|
8200 |
kg |
|||
|
Max. travel speed |
|
≥40 |
km/h |
|||
|
Wheelbase |
|
2180 |
mm |
|||
|
Engine |
Power |
82 |
74 |
74.9 |
70 |
kw |
|
Cummins |
Cummins |
Deutz dalian |
weichai |
|
||
|
Supplier |
tier 3 |
tier 2 |
tier 3 |
tier 2 |
|
|
|
Loading device |
Bucket capacity |
1 |
m3 |
|||
|
Rated load |
2500 |
kg |
||||
|
Max. breakout |
66 |
kN |
||||
|
Max. discharge height |
2770 |
mm |
||||
|
Max. discharge distance |
755 |
mm |
||||
|
System pressure |
24 |
Mpa |
||||
|
Digging device |
Bucket capacity |
0.25 |
m3 |
|||
|
Max. digging radius |
5420 |
mm |
||||
|
Max. digging depth |
4320 |
mm |
||||
|
Max. digging force |
63 |
kN |
||||
|
System pressure |
24 |
Mpa |
||||
