Summary
- Rated Load:2.5tons
- Dimension(Long*Breadth*High):7440*2350*3450mm
- Type:Small digger loader
- Place of Origin:Xuzhou, China
- Model Number:XC870K
- Brand Name:XCMG
Specifications
- Weight:7600.000kg
- Condition:New
- Moving Type:Wheel
- Drive style:4 drive / 2 drive
- Max. breakout:66kn
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

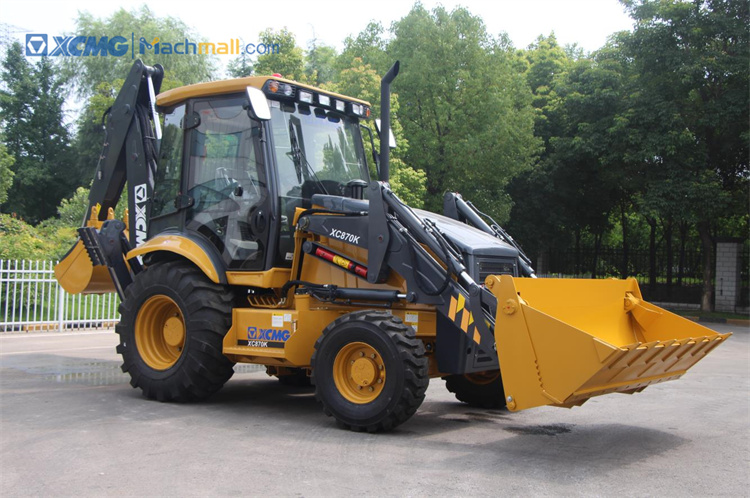

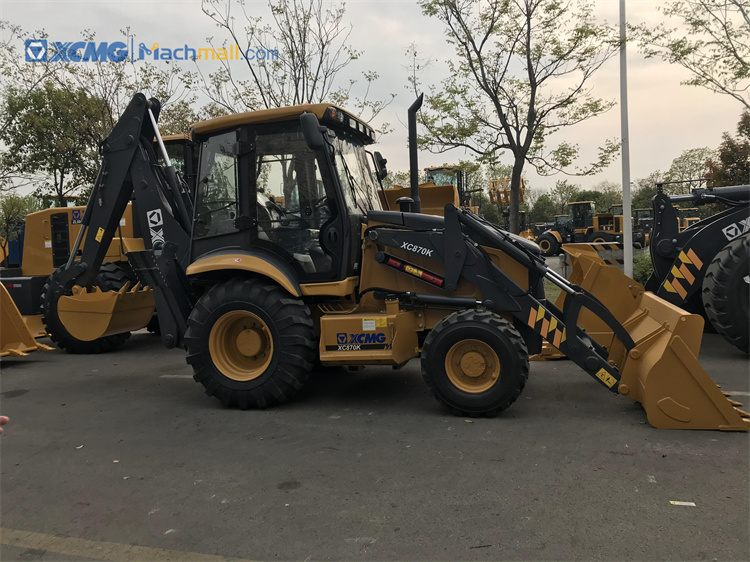

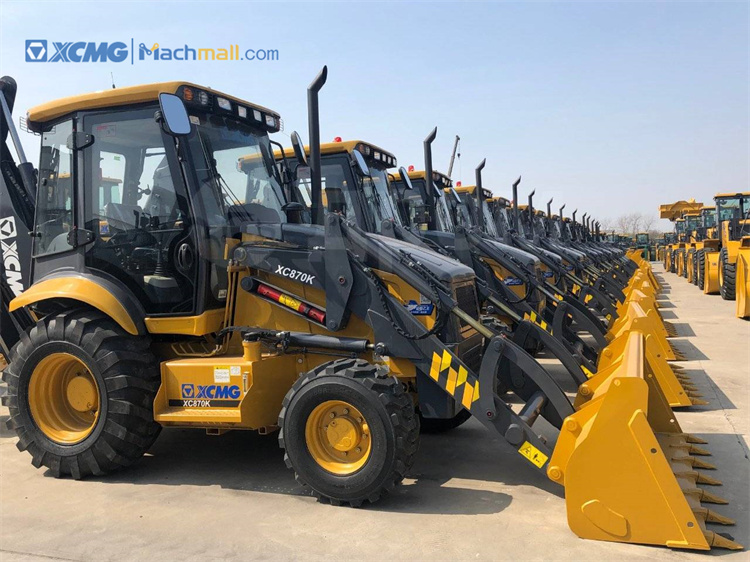

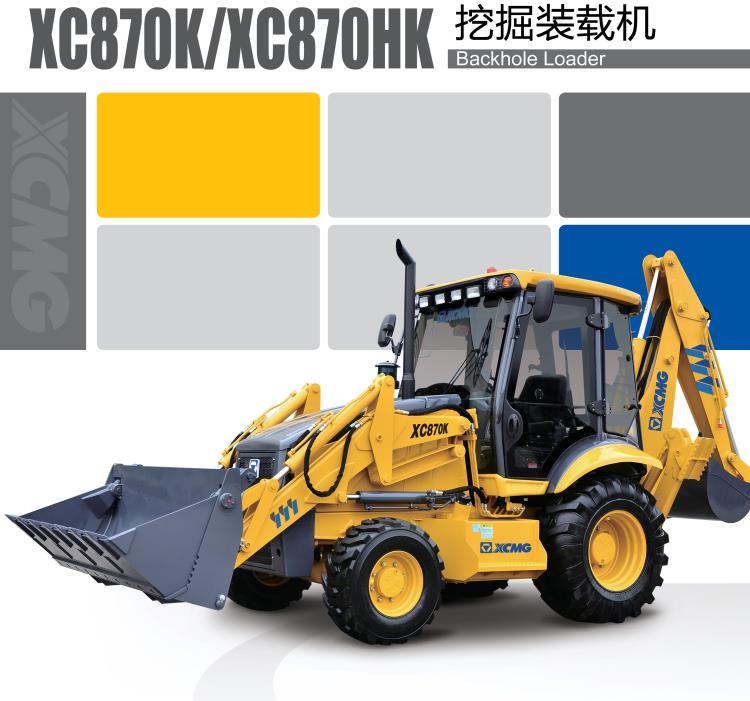

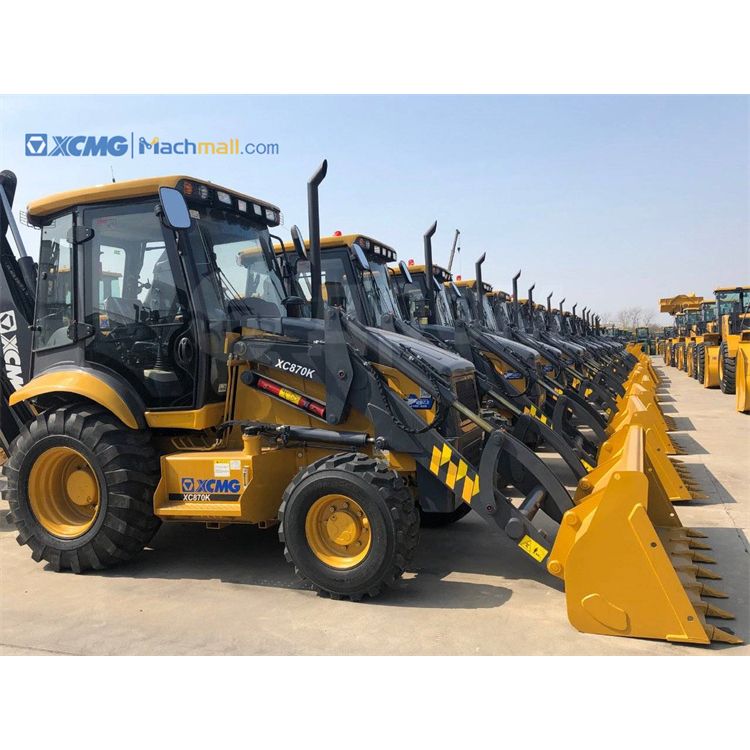

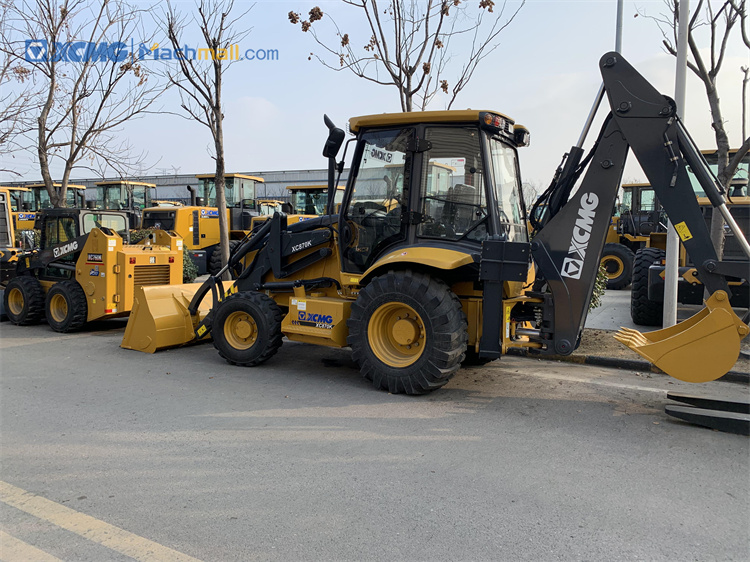

XCMG 2.5 ton Small Digger Loader.
XCMG XC870K is a K series digger loader is upgraded on the basis of the mature equipment and technical performances of present products, including the upgrade of engine emission, lightweight upgrade of structural parts, and of working device parameters, to further improve the comfort, safety, maintainability, reliabilit, supportability, and economy of the product.
Advantages and Highlights:

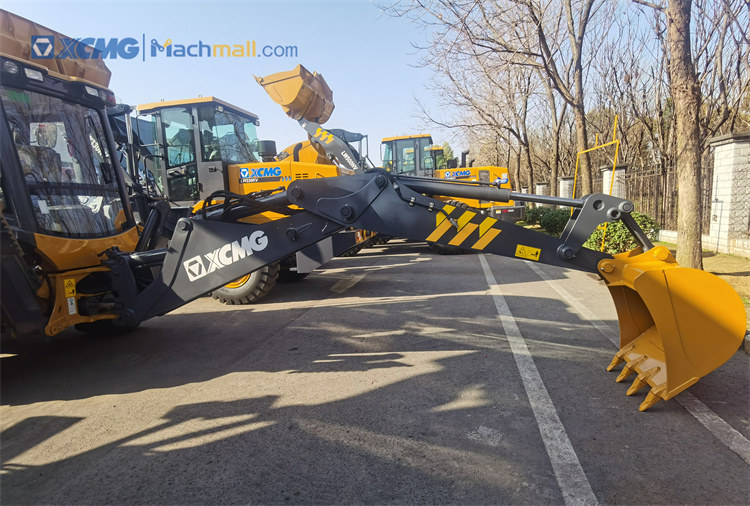

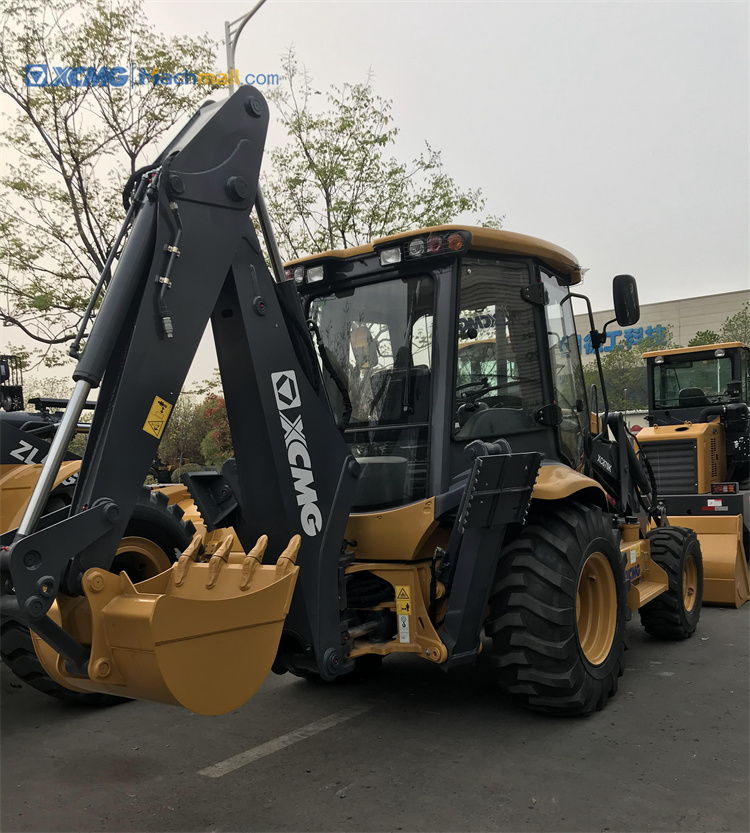

* The highest breakout force on the loading end is leading the industry by 15%~ 20% compared with like models. The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
* The high strength structural design features high operation efficiency, with the breakout force up to 63kN.
* The design optimized and industry leading 8-link working device features good levelness of bucket and rapid operations.

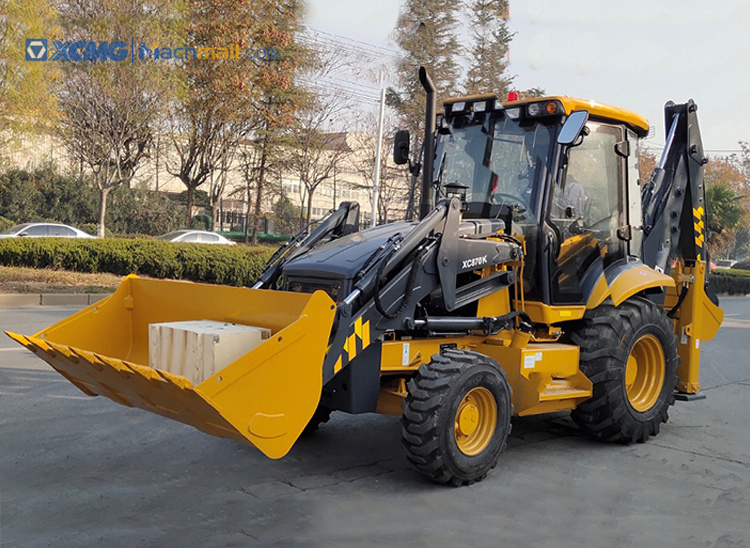

* The ultra high discharge height (2770mm) and ultra-high breakout force (66kN) lead the like products.

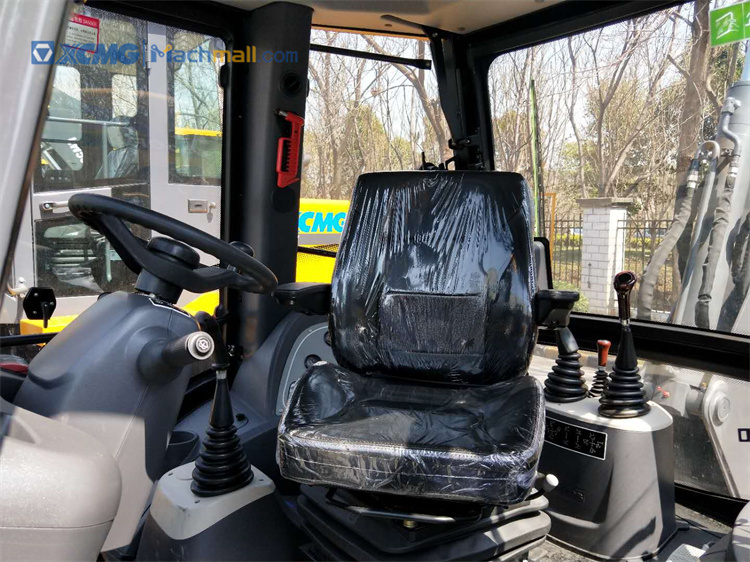

* The 360° panoramic view luxury cab with air conditioning system features large space, good sound and heat insulation, and good shock absorption. With openable side windows and rear window, the cab realizes broader visual field and comfortable operations.

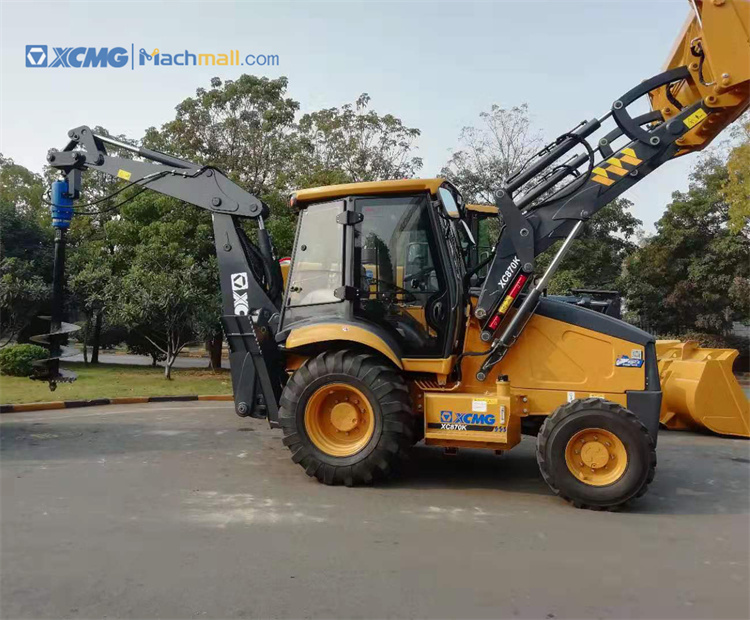

* Optional attachments: More than 10 kinds of attachments such as: 4 in 1 bucket, hammers, snow plough, augers.
|
Description |
Unit |
Parameter value |
|
|
Digging device |
Rated capacity of backhoe bucket |
m3 |
0.3 |
|
Max. digging radius |
mm |
5433 |
|
|
Max. digging depth |
mm |
4137 |
|
|
System pressure |
mpa |
18 |
|
|
Loading device |
Rated capacity of loader bucket |
m3 |
1 |
|
Rated working load |
kg |
2500 |
|
|
Max. dumping height |
mm |
2650 |
|
|
Max. dumping distance |
mm |
930 |
|
|
System pressure |
MPa |
18 |
|
|
Lifting time |
s |
≤5 |
|
|
Total cycle time |
s |
≤10 |
|
|
|
Max.steering angle |
° |
±35 |
|
Max.steering angle of dig working device |
° |
±85 |
|
|
Traceing speed I / II / III / IV |
km/h |
0-6.2 / 0-12 / 0-20 / 0-30 |
|
|
Back I / II speed |
km/h |
0-8 / 0-28.5 |
|
|
Diesel Model |
|
YC4A110-T310 / YC41390-T20 |
|
|
Modality |
|
4-stroke water-cooled inline type / 4-stroke water-cooled inline type |
|
|
Rated power |
kW |
73.5 (Turbocharged)/65 |
|
|
Rated speed |
r/min |
2200 |
|
|
Wheel base |
mm |
2600 |
|
|
Tread |
mm |
1700 |
|
|
Tires |
|
16/70-24 |
|
|
Max.digging depth |
mm |
4400 |
|
|
Max.digging radium |
mm |
5471 |
|
|
Overall dimensions(L*W*H) |
mm |
8000*2310*3424 |
|
|
Operating weight |
kg |
9500 |
|
|
Driving model |
/ |
4*4 |
|
