XCMG Manufacturer 2 ton Compact Loader Digger XT870H price
Summary
- Rated Load:2500kg
- Dimension(Long*Breadth*High):7400*2350*3450mm
- Type:Compact loader digger
- Place of Origin:Xuzhou, China
- Model Number:XT870H
- Brand Name:XCMG
Specifications
- Weight:8100.000kg
- Condition:New
- Moving Type:Wheel
- Max. digging radius:5500mm
- Bucket capacity:0.3m3
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

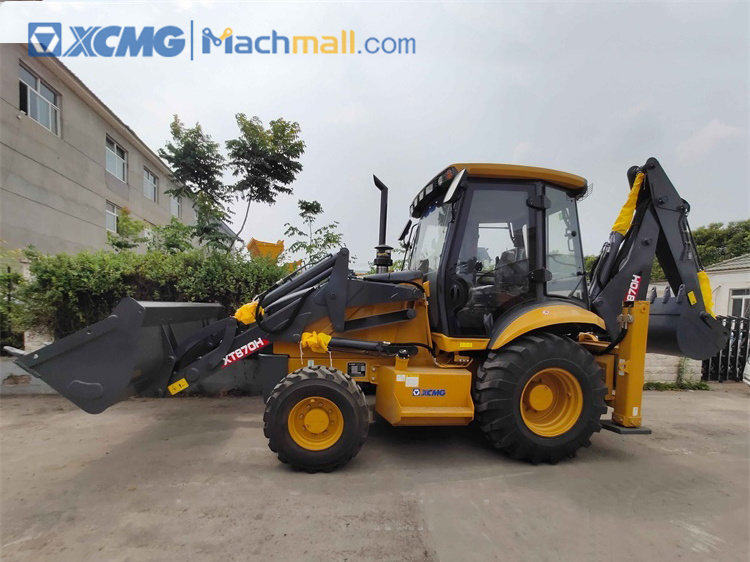

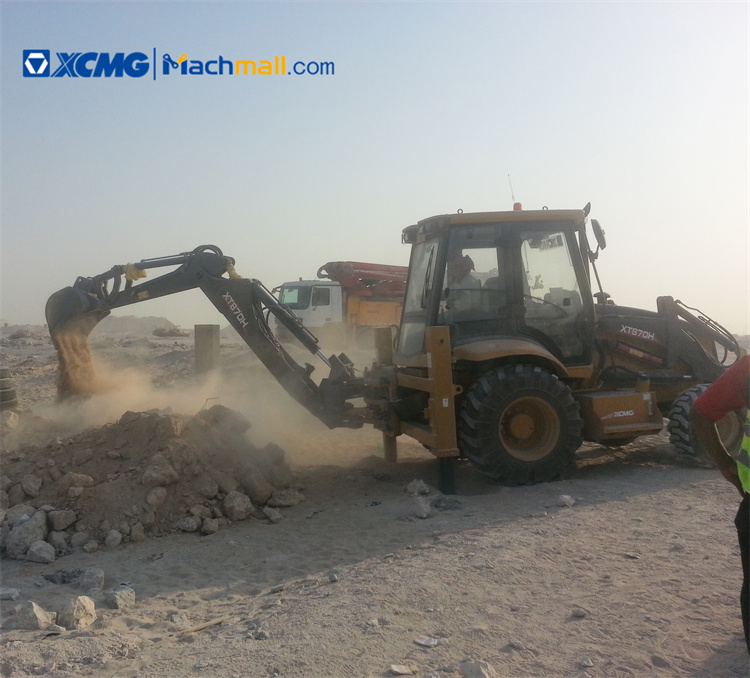

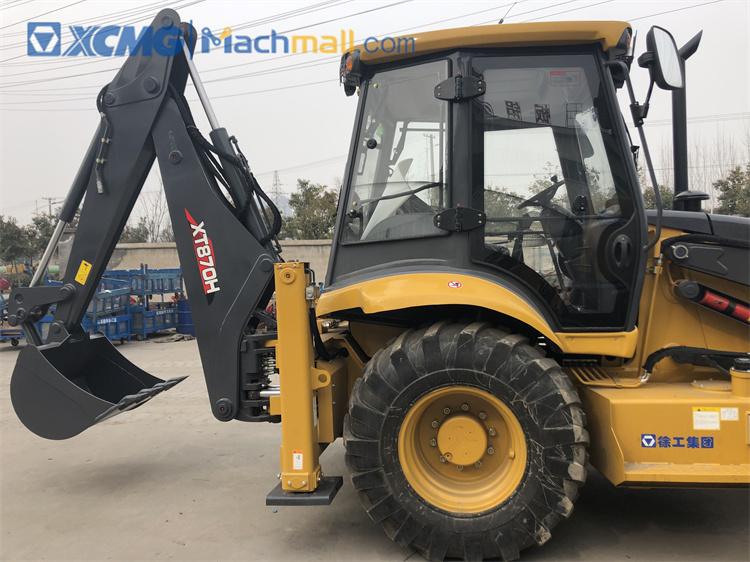

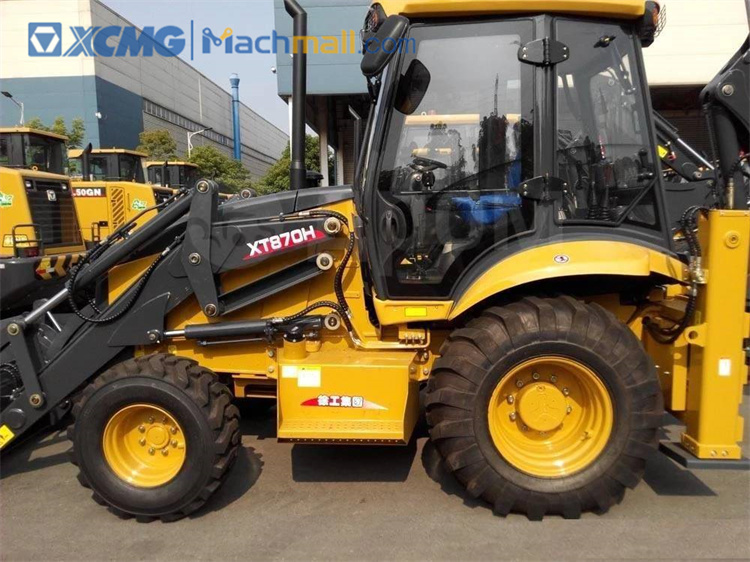

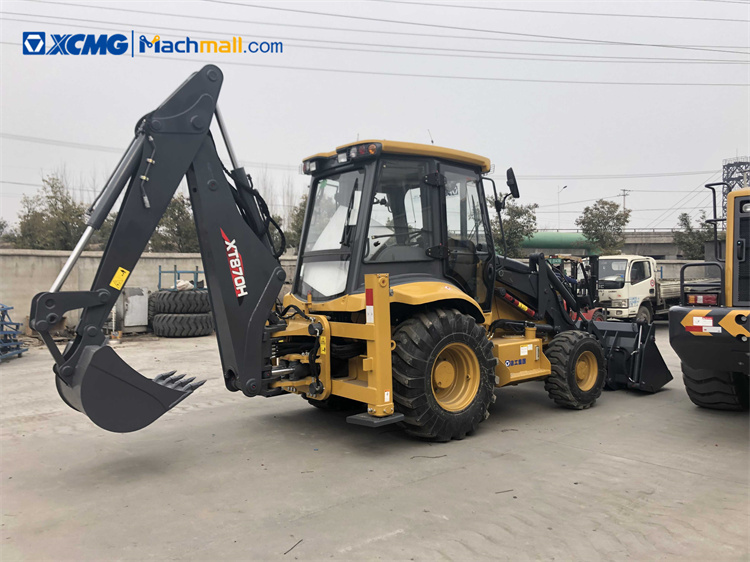

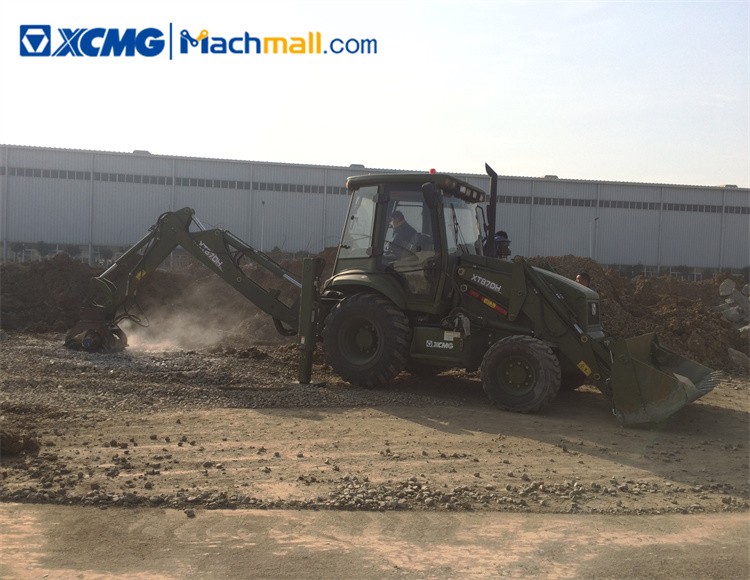

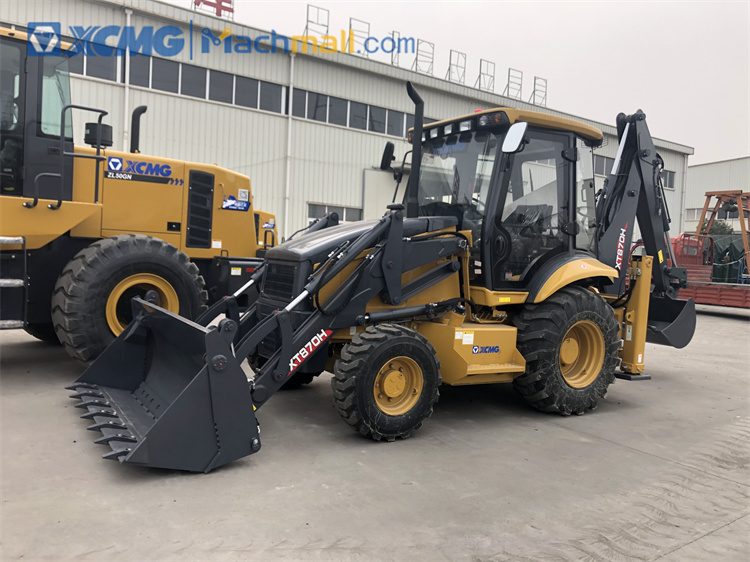

XCMG Manufacturer 2 ton Compact Loader Digger XT870H.
XCMG XT870H loader digger is a new type of construction machine used for loading and excavating, the most popular model of XCMG loader Digger.
XT870H compact loader digger is equipped with side sway on the digger device and "H" type out-rigger, is more suitable for small working space and is widely popular.
Advantages:
1. Loading end the eight-link structure, breakout force, unloading, high efficiency.
2. excavating end use in the "H" type out-rigger, beautiful appearance, strong bearing capacity, with high stability.
3. Application of stable and reliable high-speed intelligent technology off the bridge, drive, energy efficient.
4. FOPS & ROPS cab, efficient air conditioning, driving safety, operating comfort.
5. Configurable independent cooling system and ultra-low temperature cold start system is more suitable for harsh environment operations.
Optional parts:
* 4in1 bucket, hydraulic hammer, clamping device, etc.
|
Chassis type |
integrated |
Unit |
|
Total weight |
8100 |
kg |
|
Overall dimensions (LxWxH) |
7400*2350*3450 |
mm |
|
Max. travel speed |
40 |
Km/h |
|
Max. gradient |
20 |
° |
|
Wheel base |
2180 |
mm |
|
Turning radius |
3350 |
mm |
|
Max. traction force |
70 |
kN |
|
Engine |
Cummins /Deutz |
|
|
Engine power |
82/74.9 |
kw |
|
Bucket capacity |
0.8-1.2 |
m³ |
|
Rated load |
2500 |
kg |
|
Max. breakout |
66 |
kN |
|
Max. discharge height |
2770 |
mm |
|
Max. discharge distance |
705 |
mm |
|
Boom lifting time |
≤5 |
s |
|
Total cycle time |
≤10 |
s |
|
System pressure |
24 |
Mpa |
|
Bucket capacity |
0.3 |
m³ |
|
Max. digging radius |
5500 |
mm |
|
Max. digging depth |
4250 |
mm |
|
Max. digging force |
51 |
kN |
|
System pressure |
24 |
Mpa |
|
Drive Model |
4wd |
|
