1T mini excavator
Summary
Specifications
- Weight:1000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
1T mini excavator introduction
1T mini excavator are wolwa Group developed and manufactured for specific market a small excavator for rural replace human labor situation, the device uses domestic engine, mechanical manipulation, as well as optimized ergonomics patentability joystick, allow the driver to operate more convenient and comfortable.
1T mini excavator features
1, portable operation, convenient operation means, in line with the new generation of ergonomic working environment.
2, equipped with full diesel engine with strong power, low noise, low emissions, low fuel consumption, easy maintenance and so on.
3, strengthen the track, effectively strengthening the track wear, while extending the life of the track,
4, hydraulic management rational layout, greatly facilitate the inspection and maintenance of hydraulic systems.
5, high-precision instrument, excavator intelligent monitoring housekeeper.
1T mini excavator performance parameters
| 型号 Model | 1Ton | |
| 性能参数 Engine | 单位Unit | 详细参数Sepcification |
| 整车重量 Weight | Kg | 882 |
| 标准铲斗容量 Bucket capacity | m³ | 0.025 |
| 工作装置形式 Working device mode | 反铲 Backhol | |
| 额定功率 Power | Kw | 8.6 |
| 尺寸 Dimendions | 单位Unit | 详细参数Sepcification |
| 轮距 Tyre gauge | mm | 77 |
| 履带总长 Track length | mm | 1090 |
| 平台离地间隙 Platform ground clearance | mm | 380 |
| 平台尾端回转半径 Rear-end swing radius | mm | 733 |
| 底盘宽度 Width of chassis | mm | 946 |
| 履带宽度 Width of track | mm | 180 |
| 履带高度 Hight of track | mm | 320 |
| 运输长度 Over length | mm | 2550 |
| 全车高度 Machine height | mm | 1330 |
| 工作范围Operating range | 单位Unit | 详细参数Sepcification |
| 最大地面挖掘半径 Max. digging radius | mm | 2400 |
| 最大挖掘深度 Max. digging depth | mm | 1650 |
| 最大挖掘高度 Max. digging height | mm | 2490 |
| 最大卸载高度 Max. dumping height | mm | 1750 |
| 最大垂直挖机深度 Max. vertical depth | mm | 1400 |
| 最小回转半径 Min. gyration radius | mm | 1190 |
| 推土铲最大提升高度 Max. lifting height of dozer blade | mm | 325 |
| 推土铲最大提升深度 Max. lifting depth of dozer blade | mm | 175 |

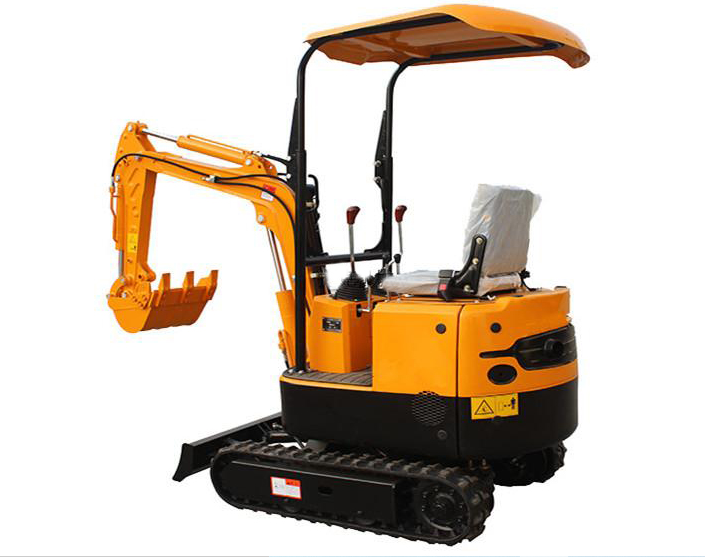

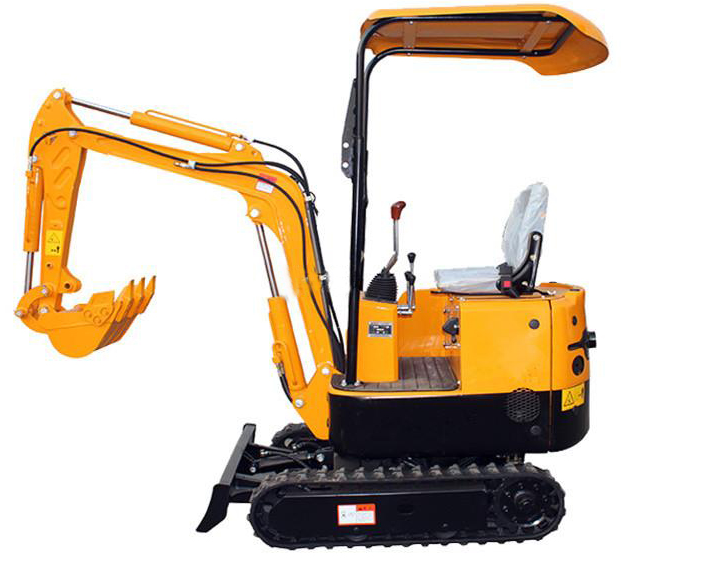

1T mini excavator photo
