Summary
- Weight:8600kg
- Overall Dimension:7575*2320*2350mm
- Table Size:1800x760x1150mm
- Max Lifting Height:18000mm
- Rated Loading Capacity:256 kg (Without limit)/ 350 kg (With limit)
- Model Number:2waZACK
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:8600.000kg
- Condition:New
- Moving Type:Other
- Wheelbase:2360mm
- Maximum carrying capacity:256 kg (Without limit)/ 350 kg (With limit)
- Traveling speed (Under stowed status):4.8 km/h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

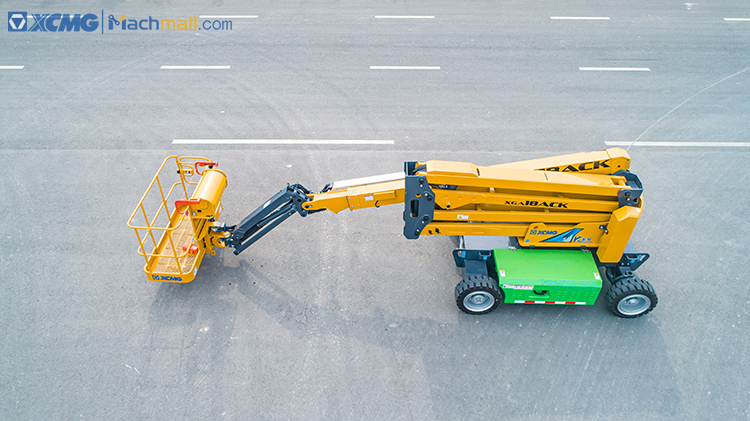

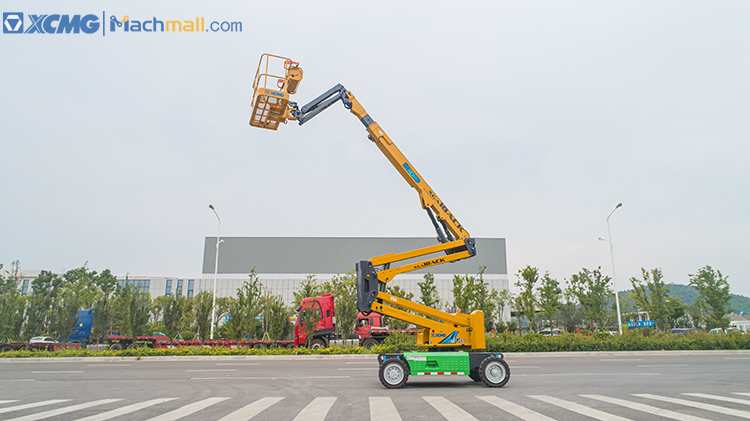

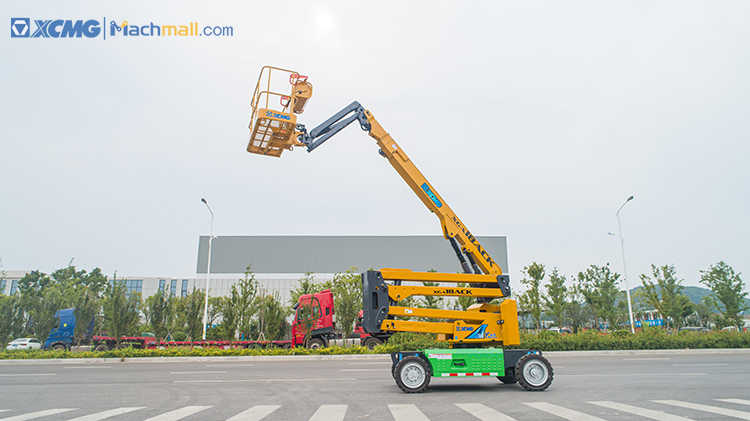

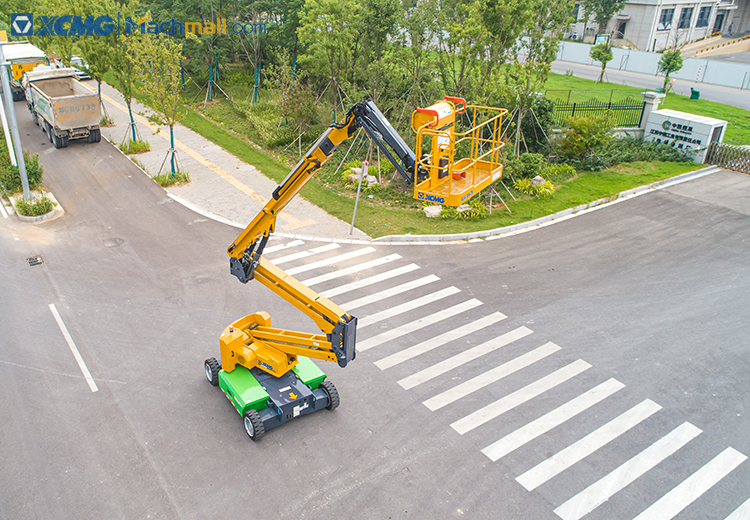

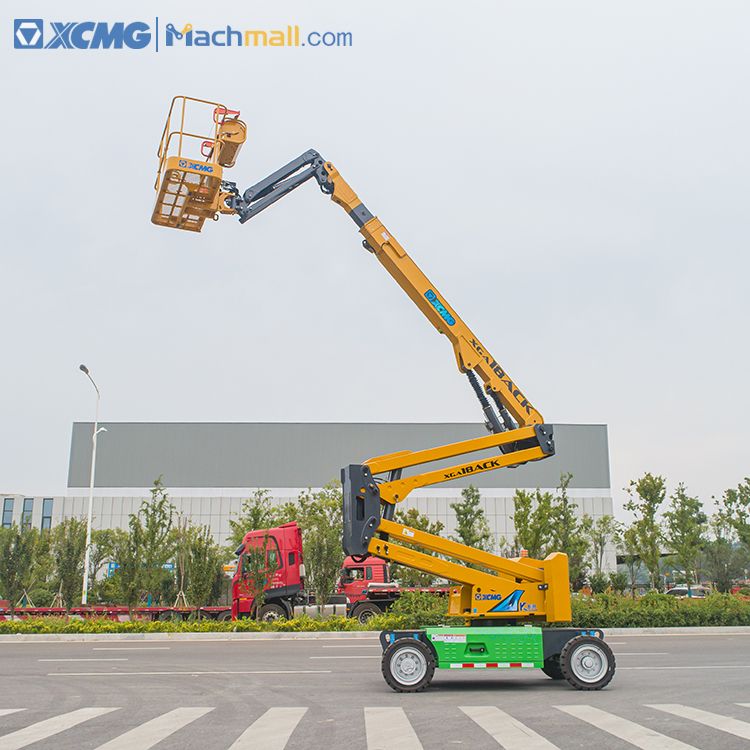

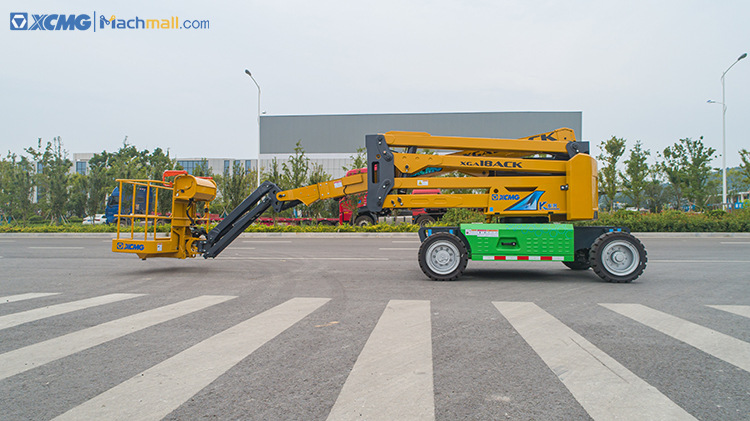

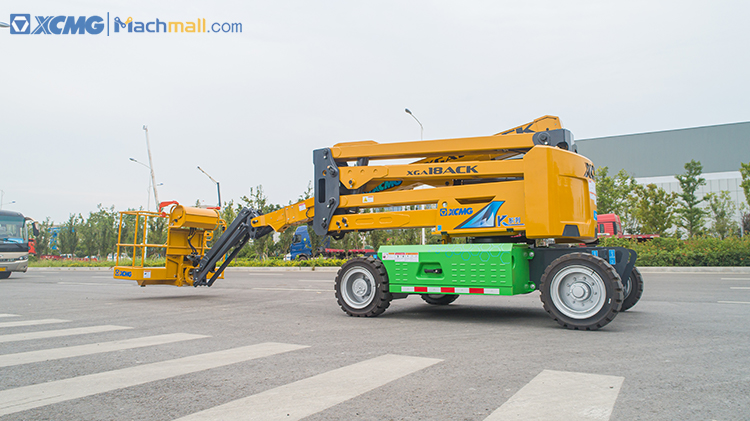

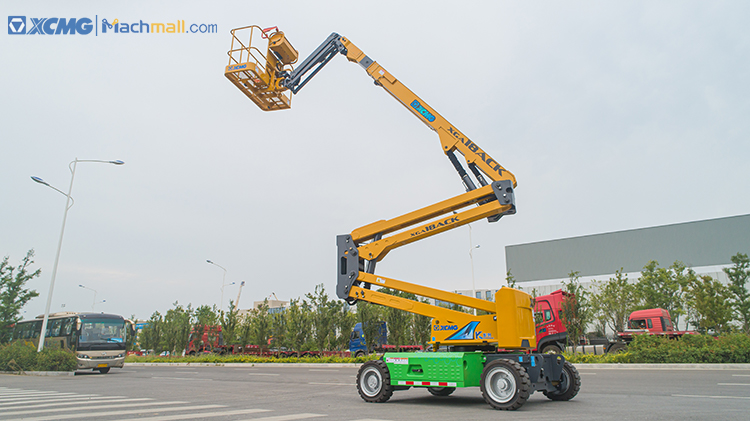

XCMG brand new large load XGA18ACK mobile 18m electrical articulating boom lift.
XCMG brand new large load XGA18ACK is a mobile articulated boom elevating work platform with compact layout, high obstacle-crossing efficiency, accurate design, powerful drive, and easy operations.
XCMG brand new large load XGA18ACK articulated boom lift features simple control, high safety and reliability, and high accuracy and efficiency and can extensively meet the users’ needs in diversified industries, including construction building, steel structure, petrochemical, stadium, and leasing industries.
Advantages and features:
1. The 256kg/350kg double high-load design meets the working needs under diversified working conditions.
2. The gravity lowering technology is applied for the boom to achieve higher stability and energy-saving.
3. The stepless speed regulation is applied to realize better operating comfort.
4. The non-power-supply design for the chassis improves the wading capability of the machine.
|
Item |
Parameter |
|
|
Overall dimensions |
Length (Storage size) |
7575mm |
|
Length (Transport size) |
7575mm |
|
|
Overall width |
2320mm |
|
|
Overall height |
2350mm |
|
|
Work platform dimensions |
Length Width Height |
1800x760x1150mm |
|
Wheelbase |
2360mm |
|
|
Maximum working height |
18000mm |
|
|
Maximum platform height |
16000mm |
|
|
Maximum working range |
10100mm |
|
|
Maximum carrying capacity |
256 kg (Without limit)/ 350 kg (With limit) |
|
|
Luffing range of 1st boom |
0～+65° |
|
|
Luffing range of 2nd boom |
-11～+75° |
|
|
Slewing angle of platform |
160° |
|
|
Jib vertical rotation - Downward |
65° |
|
|
Overall weight |
8600kg |
|
|
Traveling speed (Under stowed status) |
4.8 km/h |
|
|
Traveling speed (Lifting or expanding) |
0.6 km/h |
|
|
Minimum turn radius (Outer side) |
4.7m | |
|
Minimum turn radius (Inner side) |
/ |
|
