Summary
- Fork Width:175mm
- Fork Length:1370mm
- Rated Loading Capacity:16ton
- Power Source:diesel engine
- Type:Counterbalanced forklift
- Model Number:XCF1606K
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
Specifications
- Weight:19850.000kg
- Condition:New
- Moving Type:Wheel
- Load center distance:600mm
- Standard lifting height:3-5m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

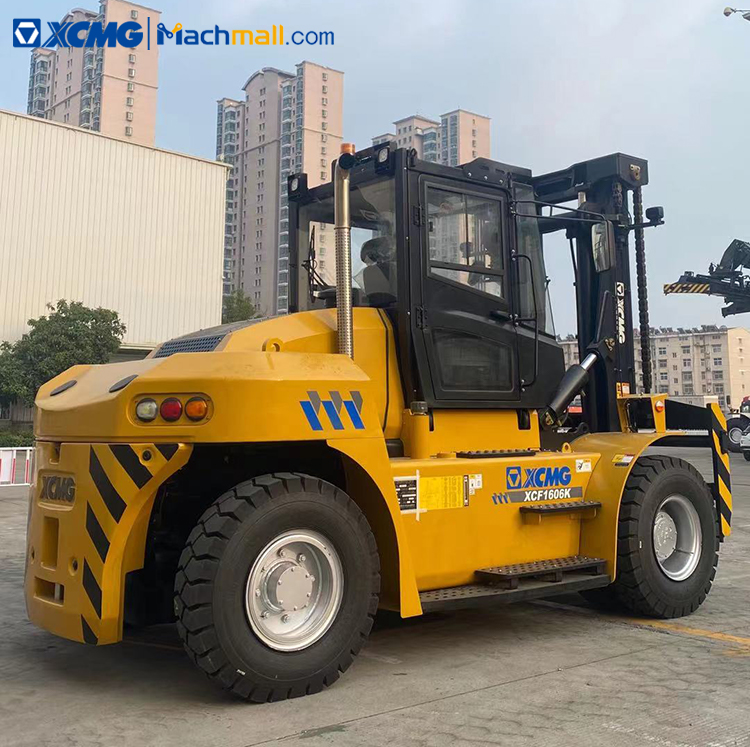

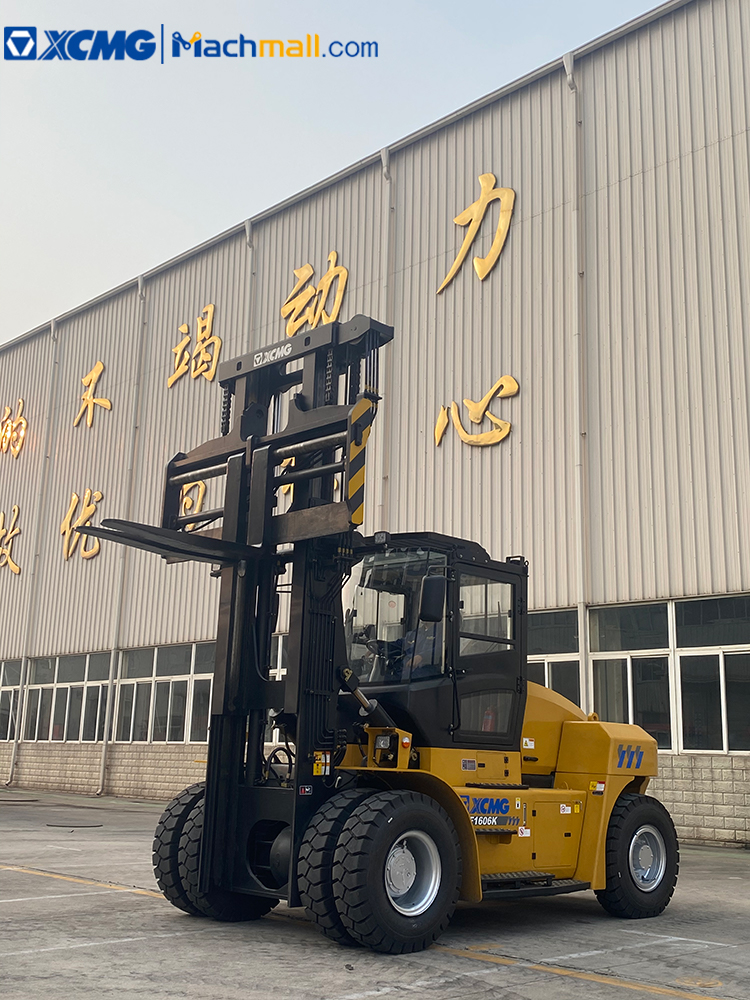

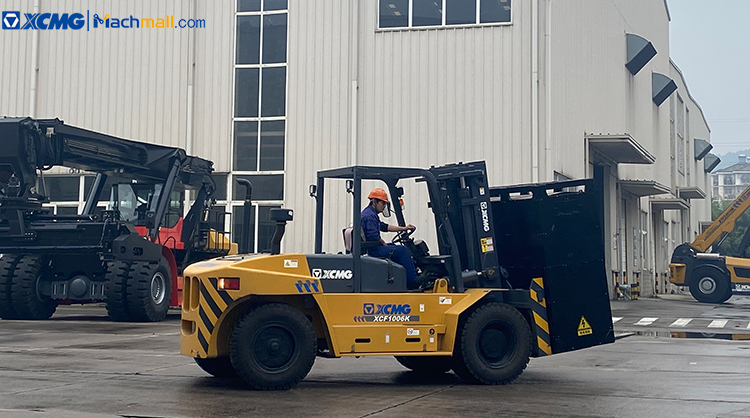

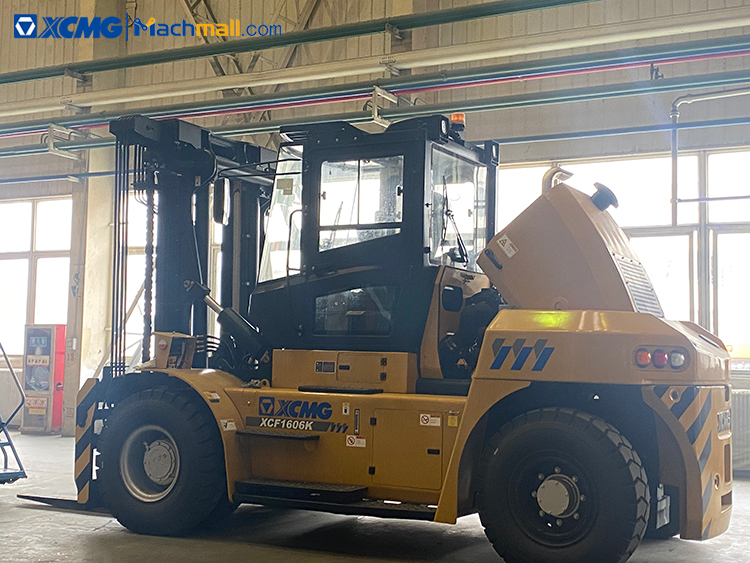

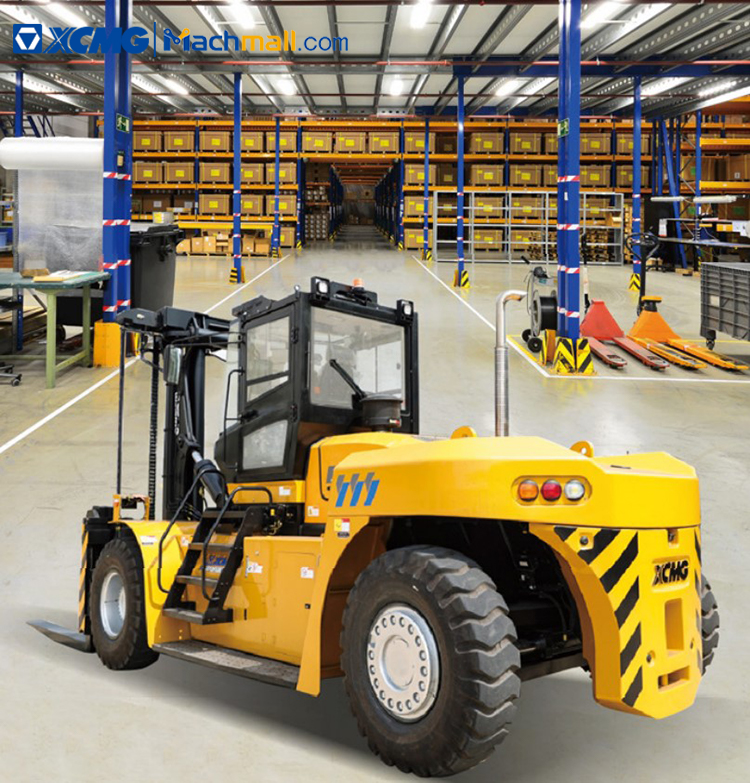

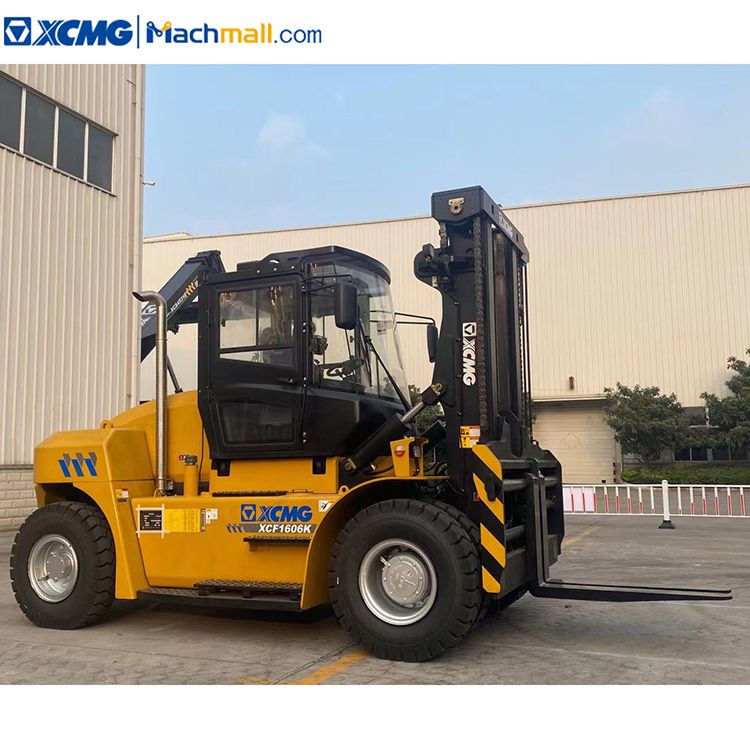

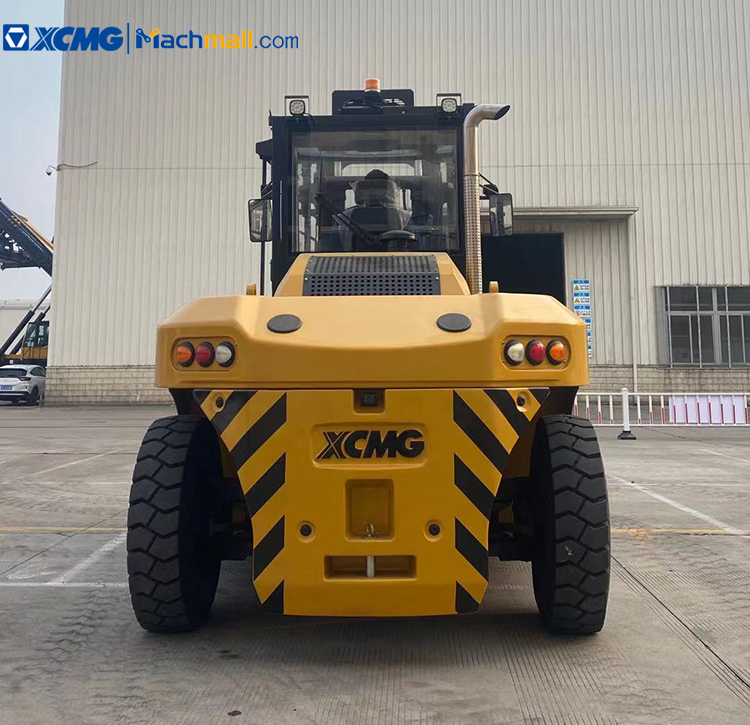

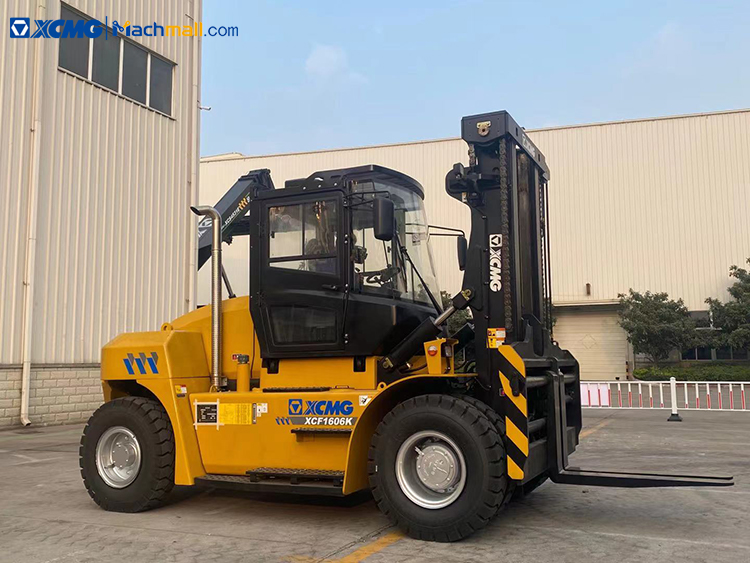

XCMG official new 15 ton forklift with 3-5m mast height for port warehouse.
XCMG official new 15ton forklift with 3-5m mast height for port warehouse are the flagship products of a new generation of forklift trucks created by XCMG in conjunction with the European R & D center, which combined with the world's advanced design concept, mature and reliable technology, the industry's mainstream supporting system, and years of technical accumulation.
The solid materials, exquisite craftsmanship, advanced technology, reasonable configuration, flexibility, convenient operation and high reliability make the products be intelligent, efficient, safe and reliable, comfortable for operating, energy saving and environmental protection.
As the digital 3D design platform is adopted, the key parts such as mast and frame use CAE finite element analysis, modal analysis, dynamic simulation analysis and other optimization design methods, taking accurate theoretical data as the design basis to ensure the performance of the whole vehicle, so the design scheme is mature and reliable.
|
Item |
Unit |
Parameter |
|
Rated load |
kg |
16000 |
|
Load center distance |
mm |
600 |
|
Standard lifting height |
mm |
3000 |
|
Vehicle weight |
kg |
19850 |
|
Max.lifting speed (unloaded/rated load) |
mm/s |
350/400 |
|
Max.lowering speed (unloaded/rated load) |
mm/s |
400/400 |
|
Max.travelling speed (unloaded/rated load) |
mm/s |
26/29 |
|
Grade-ability(rated load) |
% |
25 |
|
Maximum traction(rated load) |
KN |
145 |
|
Overall length |
mm |
6265 |
|
Overall width |
mm |
2560 |
|
Overall height |
mm |
3385 |
|
Wheelbase |
mm |
3250 |
|
Front overhang distance |
mm |
795 |
|
Rear overhang distance |
mm |
850 |
|
Min. ground clearance(mast) |
mm |
250 |
|
Cab height |
mm |
3355 |
|
Turning radius |
mm |
4450 |
|
Track (front W2/ rear W3) |
mm |
1888/2120 |
|
Mast height (retracted H1 / extended H3) |
mm |
3385/4885 |
|
Fork size (length × wide ×thick) |
mm |
1370×175×80 |
|
Adjustment range of fork |
mm |
500-2370 |
