Summary
- Model Number:XCT100
- Brand Name:XCMG
- Place of Origin:XUHZOU, CHINA
- Max. Lifting Height:92.6m
- Max. Lifting Load:100 ton
Specifications
- Weight:55000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

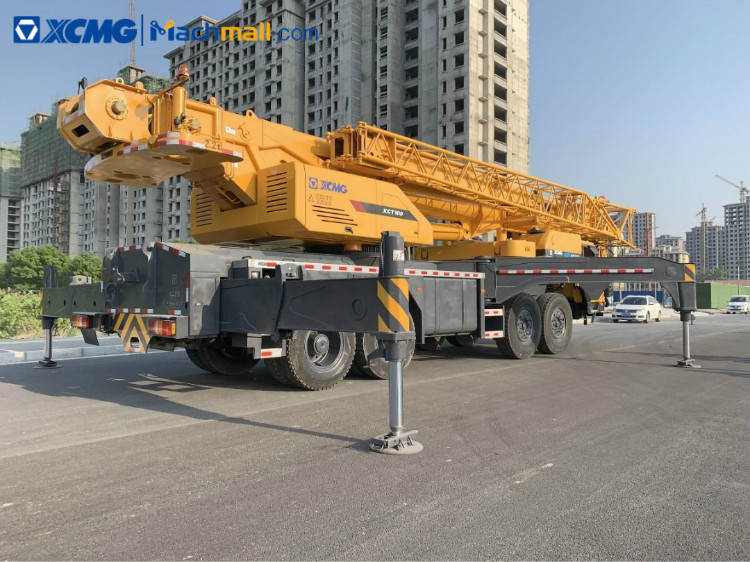

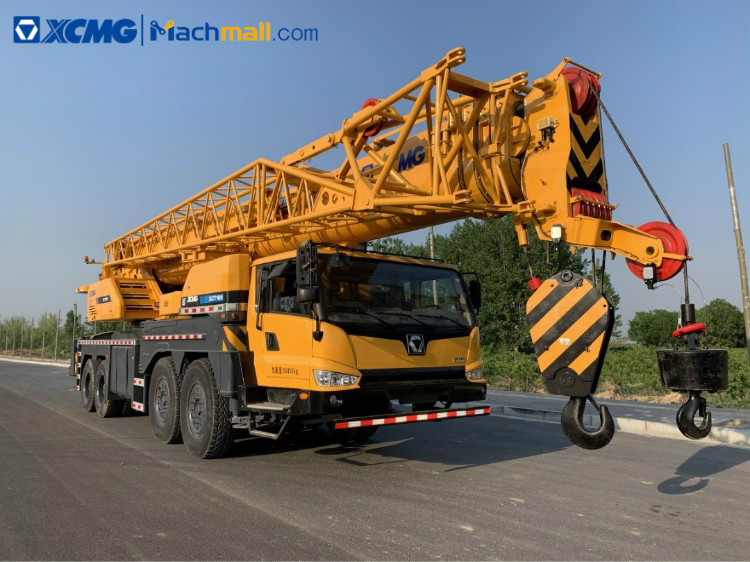

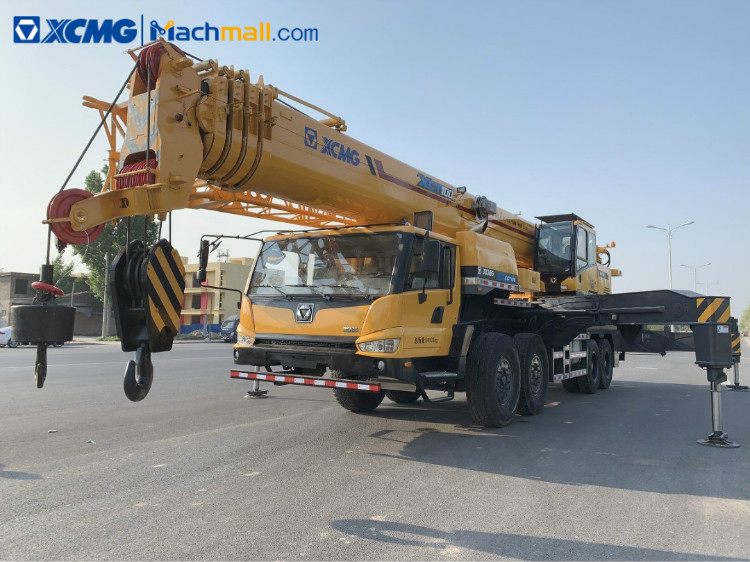

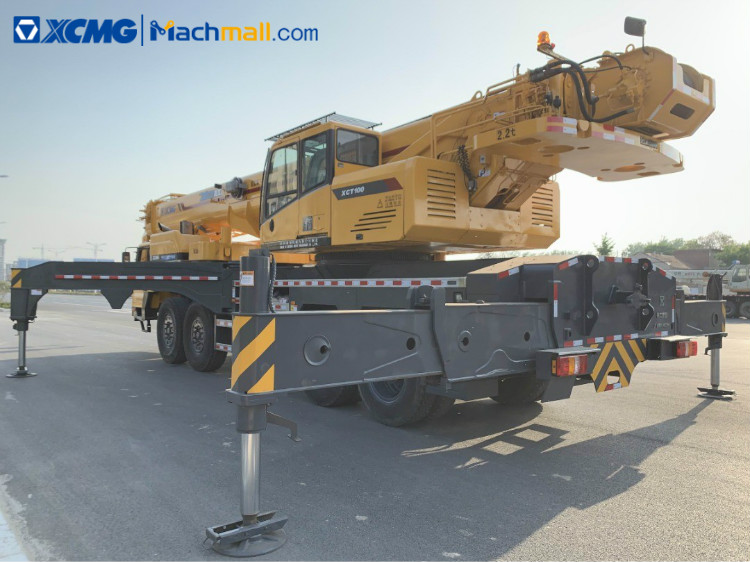

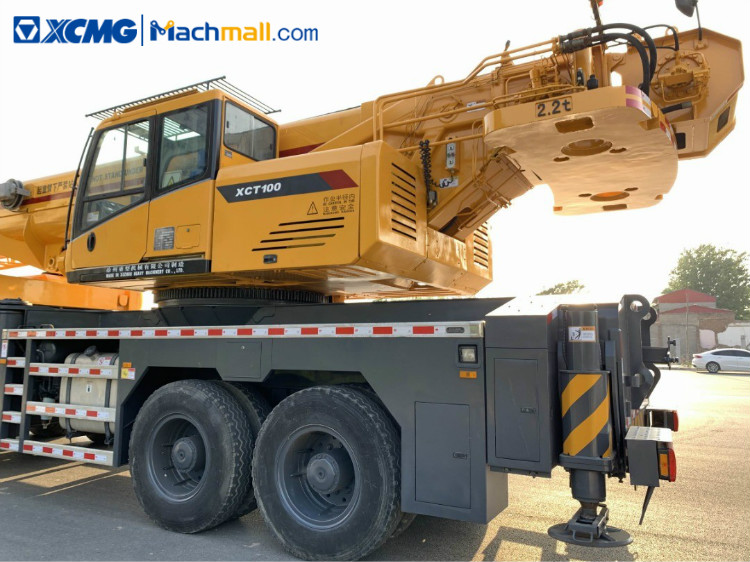

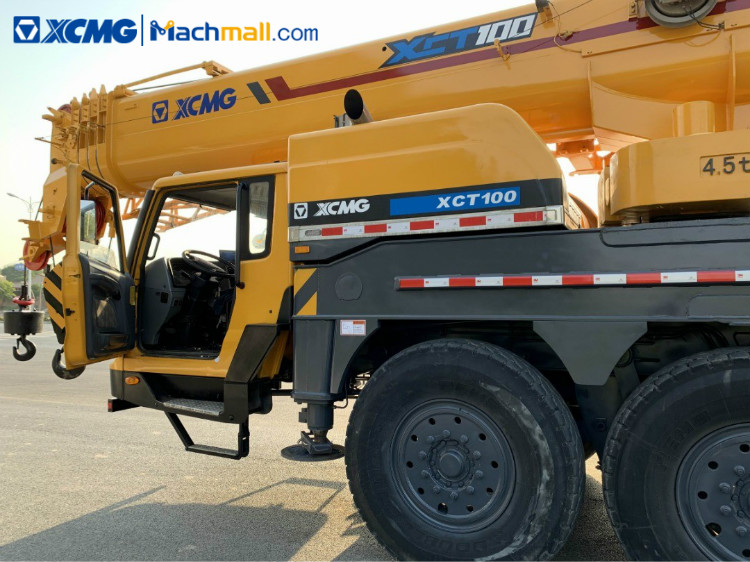

XCMG manufacturer XCT100 100 ton crane.

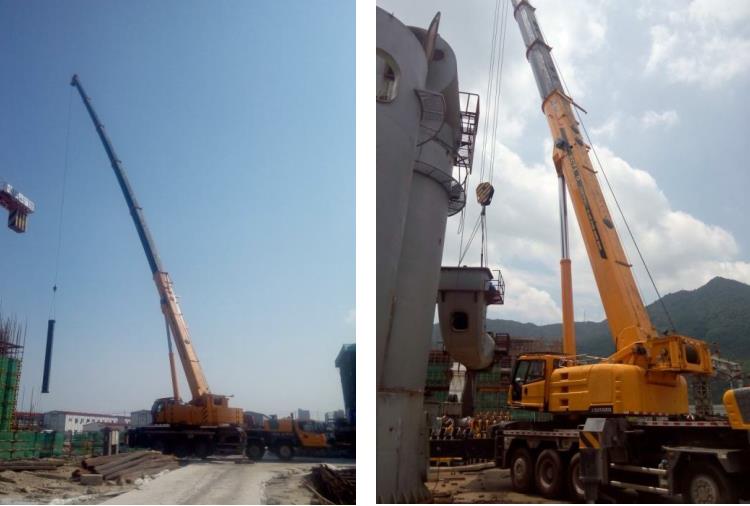

XCMG 100 ton crane XCT100 is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
XCMG 100 ton crane XCT100 performance characteristics:

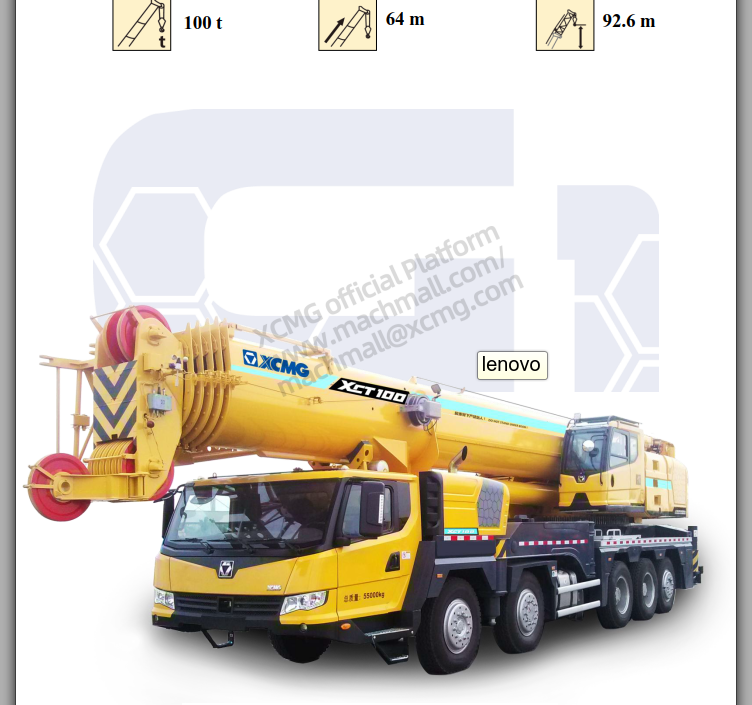

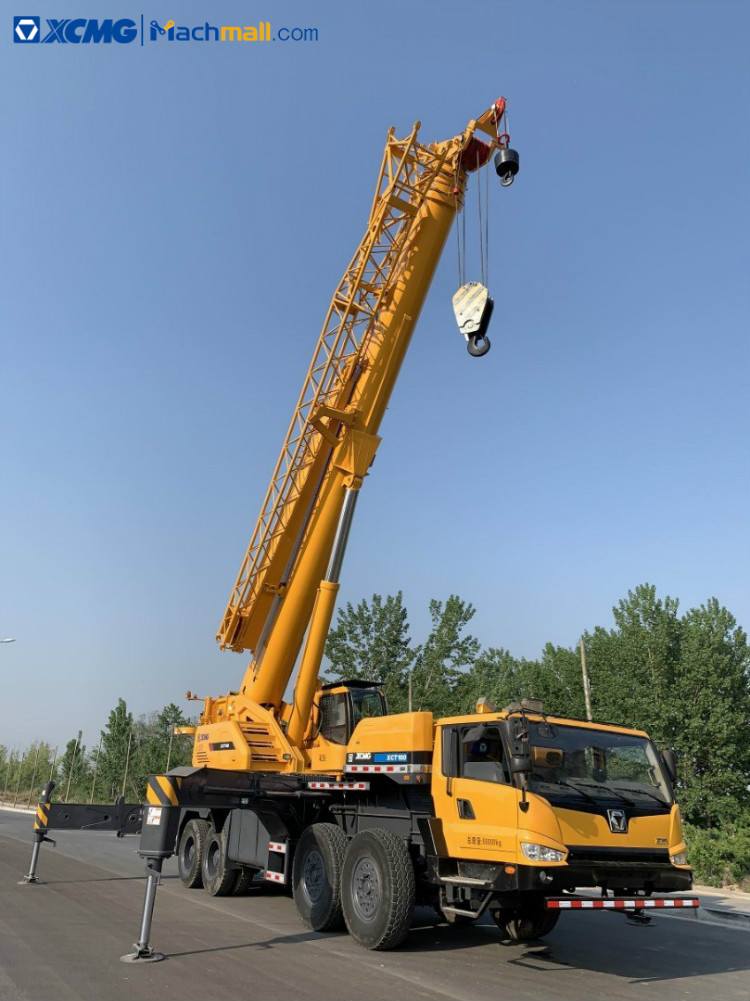

* 6-section boom of 64 m with U-type profile is adopted; the max. lifting load is 100 t; the max. lifting height is 92.6 m; the max. working radius is 62 m; The performance takes the lead comprehensively.
* Low speed large torque power transmission system, contributes to perfect combination of optimal power and optimal economical efficiency, leading to more than 12% reduction in fuel consumption and 10% improvement in grade ability.
* XCT100 is also the first four-wheel driven truck crane which can meet the need under various road conditions.Chassis rear hydraulic controlled follow-up steering technology, realizate highway and small turning two steering modes, ensure stable and reliable of vehicle at high speed, travelling at lower speed is flexible.
|
Description |
|
Unit |
Parameter value |
|
|
|
Overall length |
|
mm |
15600 |
|
|
|
Overall width |
|
mm |
3000 |
|
|
|
Overall Height |
|
mm |
3870 |
|
|
|
Wheel Base |
|
mm |
1920+3500+1420+1505 |
|
|
|
Track(front/rear) |
|
mm |
2449/2315 |
|
|
|
Front/Rear overhang |
|
mm |
2650/2765 |
|
|
|
Front/Rear extension |
|
mm |
1840/0 |
|
|
|
Total vehicle mass in travel configuration |
|
kg |
55000 |
|
|
|
Axle load |
1st and 2nd Axle |
kg |
10000 |
|
|
|
|
3rd and 4th Axle |
|
13000 |
|
|
|
|
5th Axle |
|
9000 |
|
|
|
Engine Model |
|
|
WP6G240E330 |
M906LA.E3A/2 |
WP12.430N |
|
Engine rated power |
|
kw/(r/min) |
176/2300 |
190/2200 |
316/1900 |
|
Engine rated torque |
|
N.m/(r/min) |
860/1200-1700 |
1000/1200-1600 |
2060/1000-1400 |
|
Max. travel speed |
|
km/h |
90 |
|
|
|
Min. turning diameter |
|
m |
23 |
|
|
|
Min. ground clearance |
|
mm |
326 |
|
|
|
Max. grade ability |
|
% |
45 |
|
|
|
Approach angle |
|
° |
18 |
|
|
|
Departure angle |
|
° |
13 |
|
|
|
Braking distance (at 30 km/h, full load ) |
|
m |
≤10 |
|
|
|
Oil consumption per 100km |
|
L |
70 |
|
|
|
Noise level at seated position |
|
dB(A) |
≤90 |
|
|
|
Exterior noise level |
|
dB(A) |
≤88 |
|
|
