Summary
- Fork Width:150mm
- Fork Length:1220mm
- Max Lifting Height:3000mm
- Rated Loading Capacity:10000kg
- Power Source:diesel
- Type:10 ton diesel forklift
- Model Number:XCB-DT100
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
Specifications
- Weight:12450.000kg
- Condition:New
- Moving Type:Wheel
- Fuel tank capacity:140L
- Load capacity:10000kg
- Load center:600mm
- Wheels(front / rear):4 ×2
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

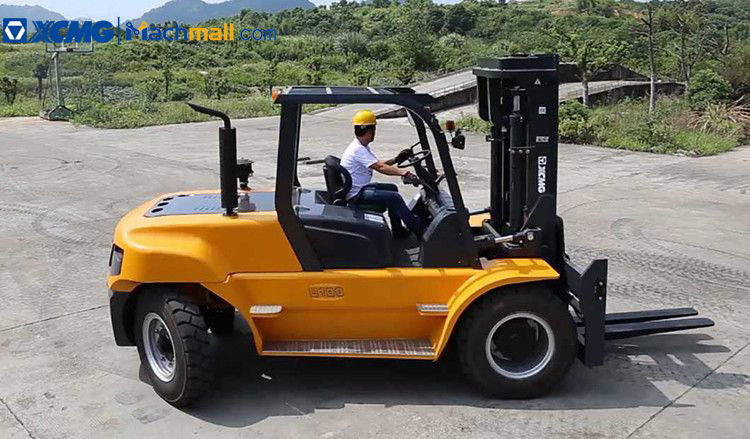

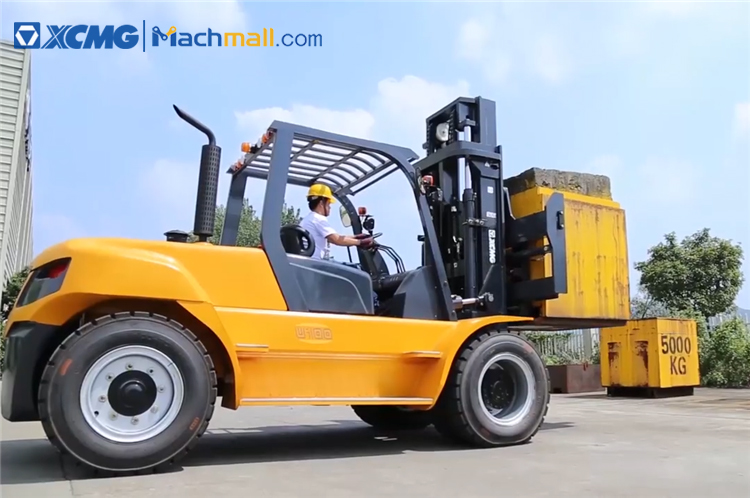

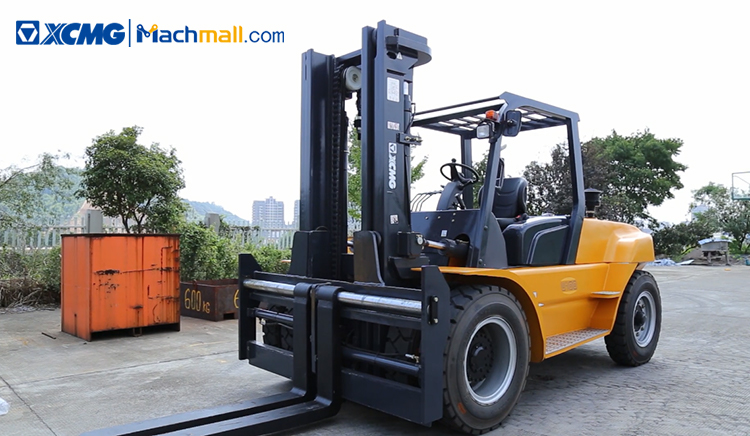

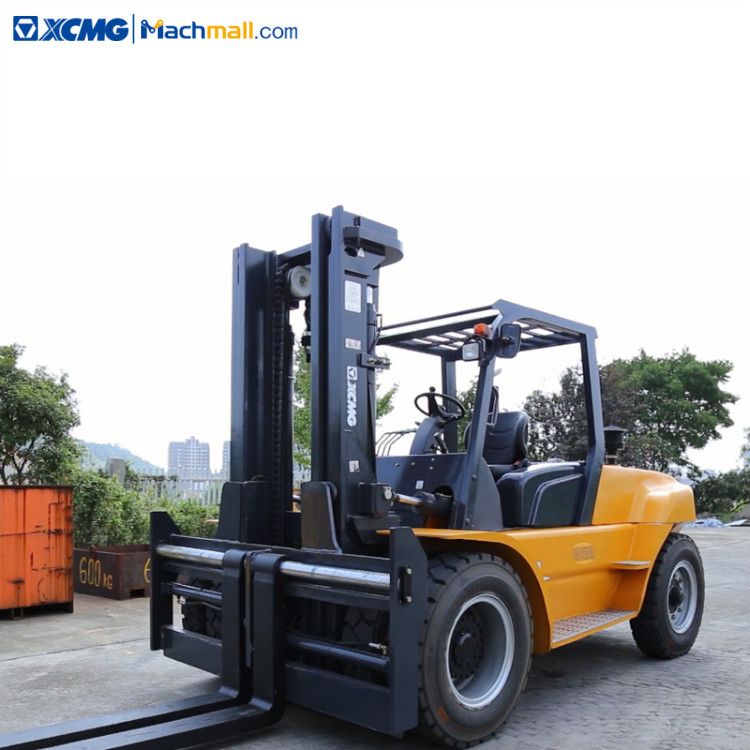

China XCMG 10 ton diesel forklift truck with 2.8m mast height.
China XCMG 10 ton diesel forklift truck with 2.8m mast heightprovides you with multiple choice as per your real need, we have different reliable engines for choice. All these engines have been tested that they can be trusted through all kinds of tough working condition and get recognition from millions of clients across the worldwide.
These engines are specifically designed for the forklift use,with low fuel consumption,less noise and vibration,all these features improve the whole performance of the forklift.
High efficiency is also delivered through the performance of the axles,the excellent brake system make sure the forklift operate with safety,the steering axle provide prompt and precise feedback to the driver when steering.
Highlights:
1.New style environmental engine.
Equipped with powerful and efficient engine,suitable for the latest Chinese II emission standard and Europe III emission standard(S6ST).
2.Hydraulic steering system.
Steering system with horizontal convenient veer operation and maintainability.
3.Wide view mast.
Preeminent front operation view with unique designed wide view mast (model VM), makes safer and more reliable operation.
|
Specification |
Manufacturer |
XCMG |
|||
|
Model |
XCB-DT100 |
||||
|
Load capacity |
10000kg |
||||
|
Load center |
600mm |
||||
|
Power unit |
diesel |
||||
|
Operator type |
driver / seat |
||||
|
Tire type |
front / rear |
pneumatic |
|||
|
Wheels |
front / rear |
4 ×2 |
|||
|
Dimensions |
Max.lifting height |
3000mm |
|||
|
Free lift |
205mm |
||||
|
Fork size |
L ×W ×T |
1220×150×60mm |
|||
|
Tilt angle |
forward / backward |
6/12deg |
|||
|
Overall length(without fork) |
4255mm |
||||
|
Total width |
2245mm |
||||
|
Mast height(fork lowering) |
2850mm |
||||
|
Overall height fork raised |
4330mm |
||||
|
Height of head guard |
2560mm |
||||
|
Turning raduis(outside) |
3900mm |
||||
|
Load distance |
710mm |
||||
|
Right angle stacking aisle (pallet size:1100×1100 add clearence) |
6250mm |
||||
|
Performance |
|
Travelling |
full load |
24km/h |
|
|
|
no load |
30km/h |
|||
|
Speed |
Lifting |
full load |
390mm/s |
||
|
|
no load |
410mm/s |
|||
|
|
Lowering |
full load |
470mm/s |
||
|
|
no load |
340mm/s |
|||
|
Max.drawbar pull |
Full / no load |
5850/3200kg |
|||
|
Gradeabillty at 1.6km/h |
Full load |
22% |
|||
|
Max.gradeabillty |
Full / no load |
24 / 20% |
|||
|
Weights |
Weight |
|
12450kg |
||
|
|
Full |
front |
20160kg |
||
|
Weight distribution |
rear |
2290kg |
|||
|
|
No load |
front |
5480kg |
||
|
|
rear |
6970kg |
|||
|
Chassis&wheels |
|
Number |
front / rear |
4/2 |
|
|
Tires |
Size |
front |
9.00×20-14PR |
||
|
|
rear |
9.00×20-14PR |
|||
|
Wheelbase |
|
2800mm |
|||
|
Tread |
Front |
1600mm |
|||
|
Rear |
1700mm |
||||
|
Ground clearence |
At lowest point(mast) |
245mm |
|||
|
Frame |
320mm |
||||
|
Brake |
Service brake |
power brake |
|||
|
Paking brake |
mechanical-hand lever |
||||
|
Drive Line |
Battery |
Voltage / capacity |
2 × 12V-80AH V/AH |
||
|
|
Model |
CHAOCHAI 6BG332 |
ISUZU 6BG1 |
||
|
|
Rated power |
85 / 2200KW/rpm |
82.4/2000KW/rpm |
||
|
Engine |
Rated torque |
450/1650N ·m/rpm |
416.8/1500N ·m/rpm |
||
|
|
Number of cylinders |
6 |
6 |
||
|
|
Displacement |
5.785L |
6.494L |
||
|
Fuel tank capacity |
|
140L |
|||
|
Transmission |
Shift stage (front / rear-type) |
2 / 2 |
|||
|
Hydraulic system pressure |
|
200kg/cm2 |
|||
