XCMG 1.2m XM120F asphalt concrete mini milling machines for sale
Summary
- Dimension(L*W*H):5900*2140*3000mm
- Weight:21000kg
- Power(W):209kW
- Model Number:XM120F
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Milling width (mm):1200mm
- Milling depth (mm):320mm
- Certification:CE/ISO9001
Specifications
- Weight:21000.000kg
- Condition:New
- Moving Type:Other
- Gradeability:80%
- Travel speed:0-5km/h
- Hydraulic oil tank:120L
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

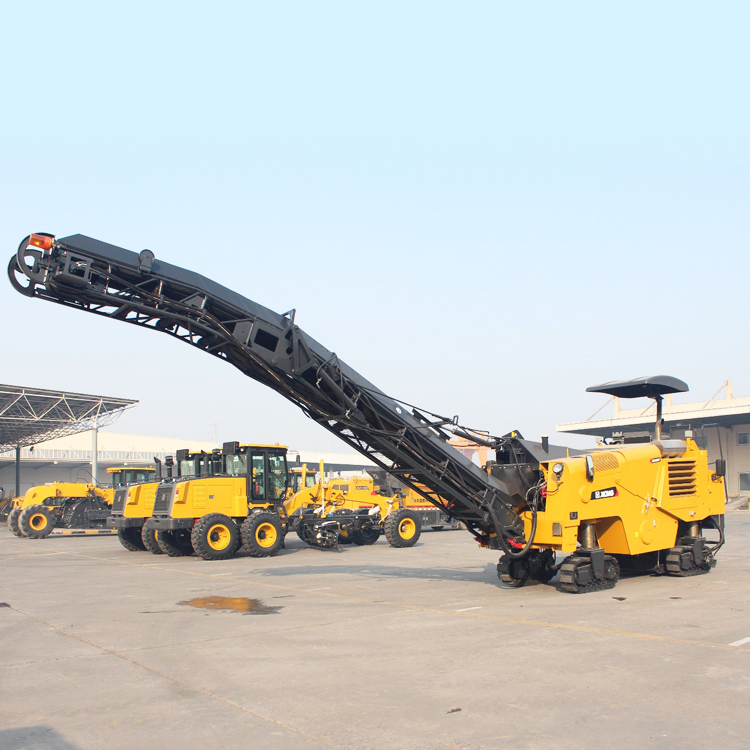

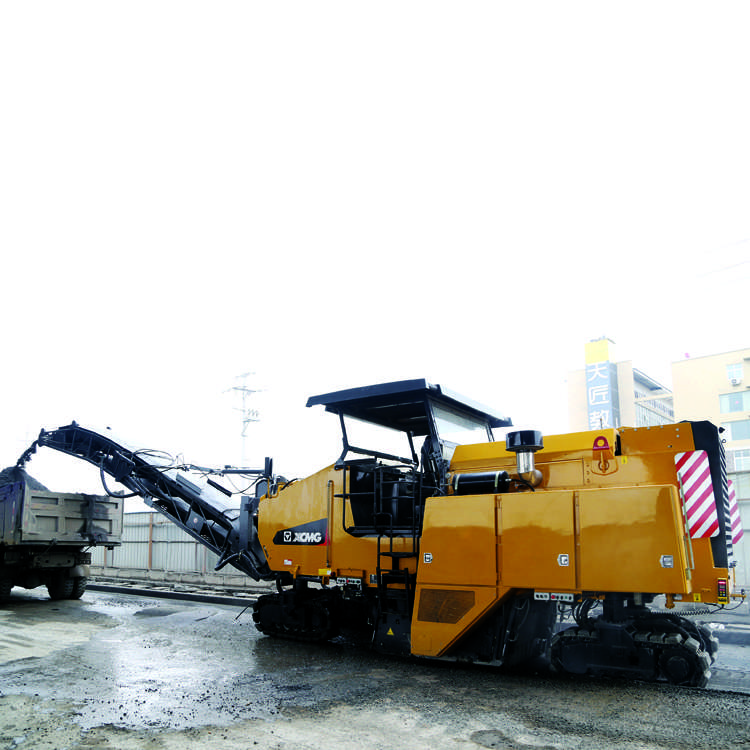

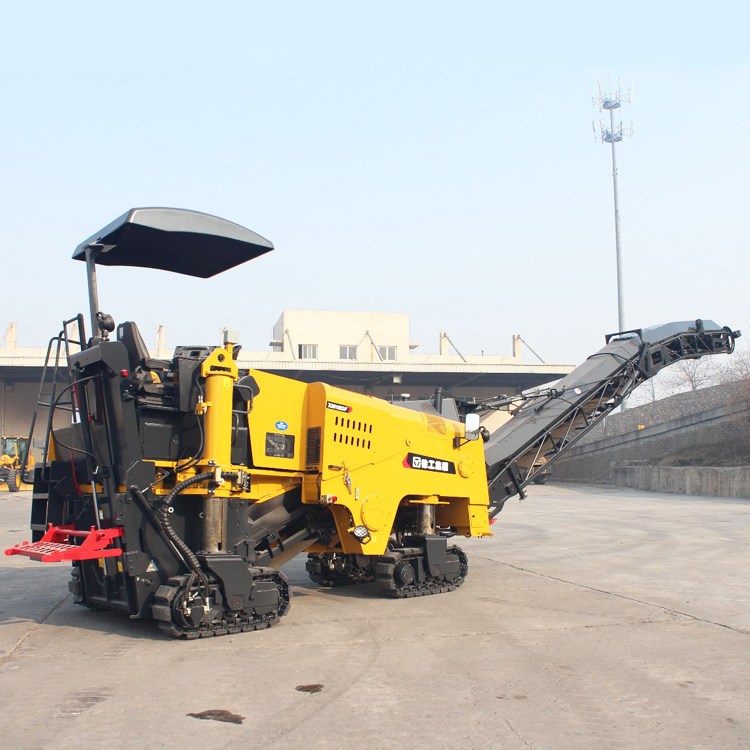

XCMG 1.2m XM120F asphalt concrete mini milling machines.

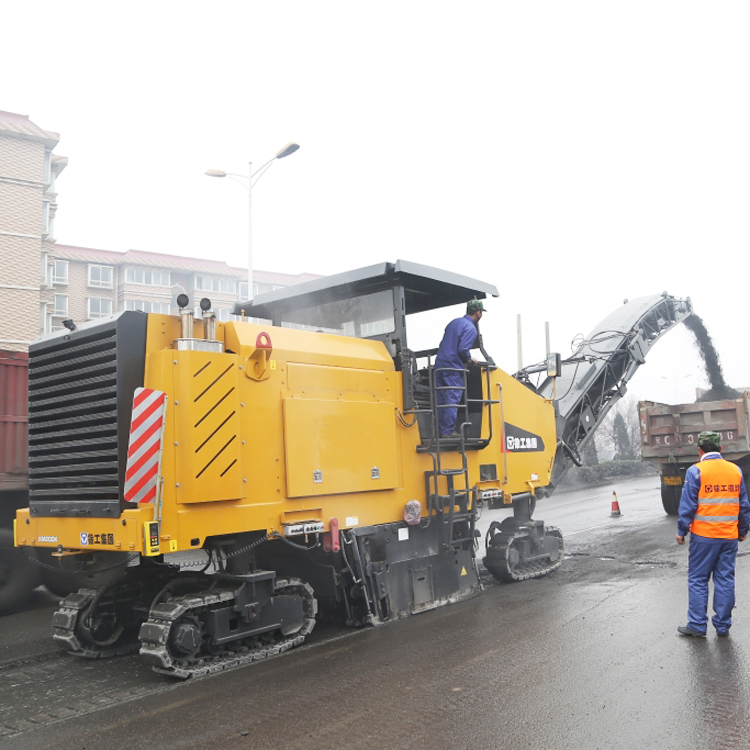

XCMG XM120F asphalt concrete milling machines is the asphalt concrete pavement construction machinery, mainly used for highway, town roads, airports, freight yard, parking lot and other asphalt concrete surface of the large area excavation renovation.
The equipment is high efficiency, simple construction technology, easy to control the depth of milling, easy to operate and flexible, good motor performance, milling the old material can be directly recycled, can be widely used asphalt pavement maintenance renovation construction.
Performance Characteristics:
1. Two-stage front-wheel conveyor system to ensure smooth, uninterrupted transport of a large number of milling materials.
2. Intelligent control system can achieve the machine online display.
3. Automatic power adjustment system, can achieve the milling power and drive power between the automatic distribution.
4. Advanced milling depth automatic control system, can accurately control the milling depth, easy to operate, the use of reliable.
5. Original imported electronic control engine, emissions in full compliance with US standards and European 3 standard, reliable, energy saving and environmental protection.
Model | Unit | XM120F | |
Engine | Engine model | QSC8.3 | |
Rated power /speed | Kw/rpm | 209/2100 | |
Performance parameters | Operating speed | m/min | 0-32 |
Travel speed | Km/h | 0-5 | |
Gradeability | % | 80 | |
Ground clearance | mm | ≤300 | |
Operating weight | Kg | 21500 | |
Operating | |||
parameters | Max.milling and mixing width | mm | 1200 |
Max.milling and mixing depth | mm | 320 | |
Number of tools | 117 | ||
Milling drum diameter | mm | 980 | |
complete dimension(L*W*H) | mm | 5900*2140*3000 | |
dimensions | Conveyor(L*W*H) | mm | 8200*1200*1500 |
Fuel tank | L | 660 | |
Hydraulic oil tank | L | 120 | |
Water tank | L | 1400 | |
Travel mode | Tire |
