Summary
- Rated Load:5ton
- Dimension(Long* Breadth * High):7910×3016×3515mm
- Type:wheel
- Place of Origin:XUZHOU, CHINA
- Model Number:LW500FN
- Brand Name:XCMG
Specifications
- Weight:16900.000kg
- Engine Brand:WEICHAI
- Rated Load:1-2 ton
- Bucket Capacity:
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

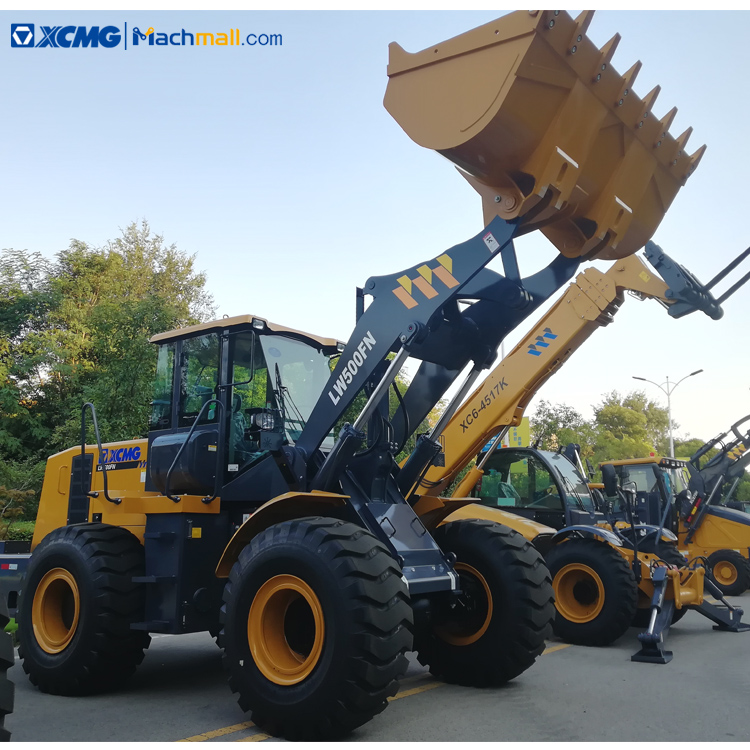

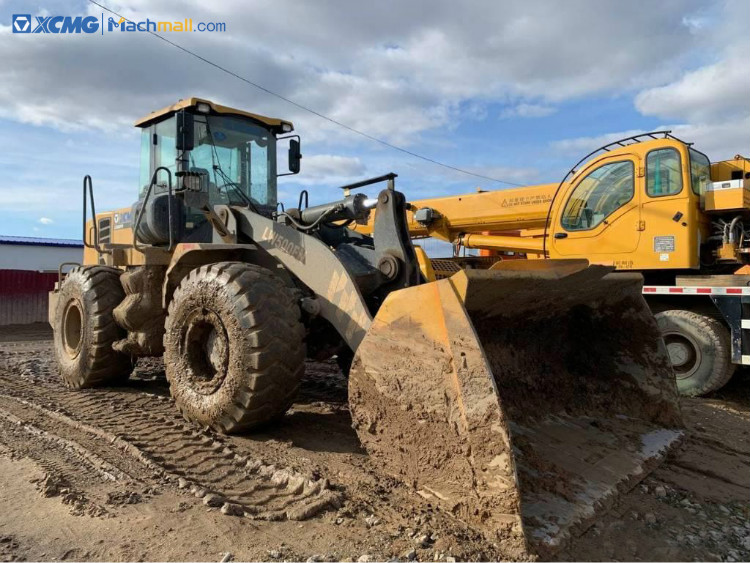

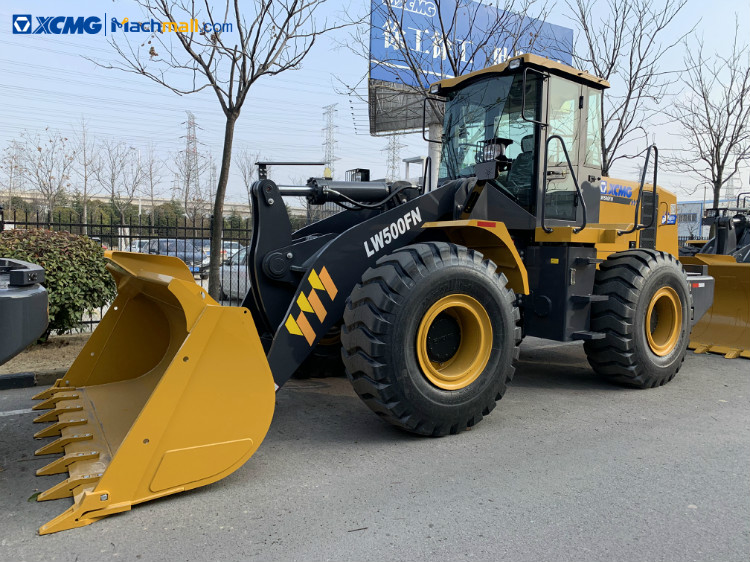

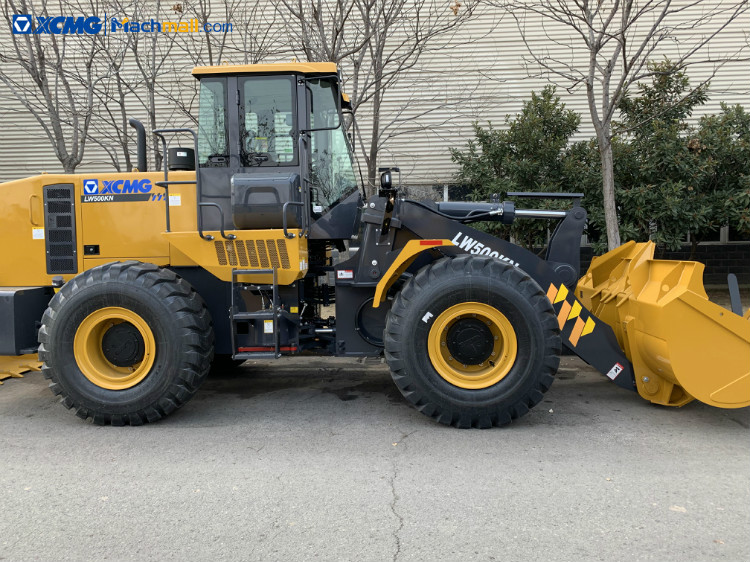

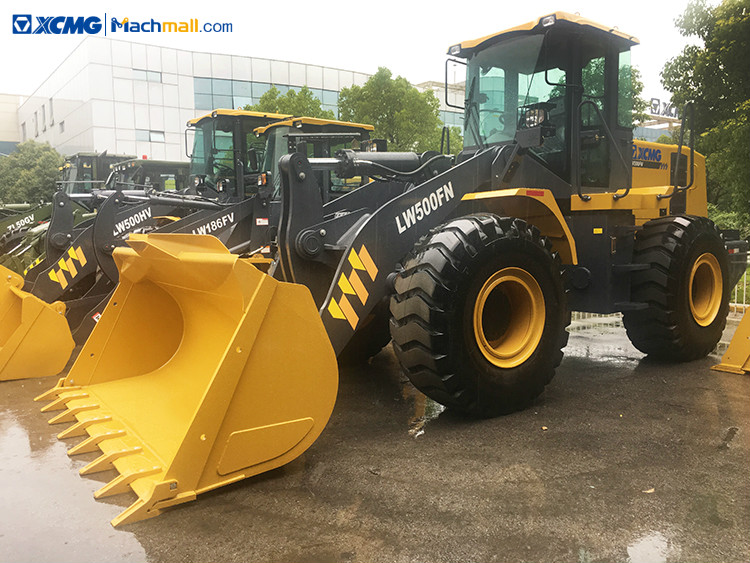

XCMG front wheel loader 5 ton LW500FN for construction.
XCMG front wheel loader 5 ton LW500FN new generation loader boasts outstanding advantages (such as efficiency) in the fields of engineering constructions, aggregate yards, and coal logistics.
XCMG Wheel loader LW500FN model characteristics:
1. The 160kN traction force and ≥3. 5m high dumping capacity handle the severe conditions with ease. ≥7,500kg lifting capacity and 170kN breakout force handle all kinds of materials with ease.
2. With short wheelbase and small turning radius, this product features high mobility and flexibility and outstanding field adaptability.
3. The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.
4. The hinged joints between front and rear frames adopt the structure of rolling bearings + knuckle bearings, featuring high carrying capacity and working stability.

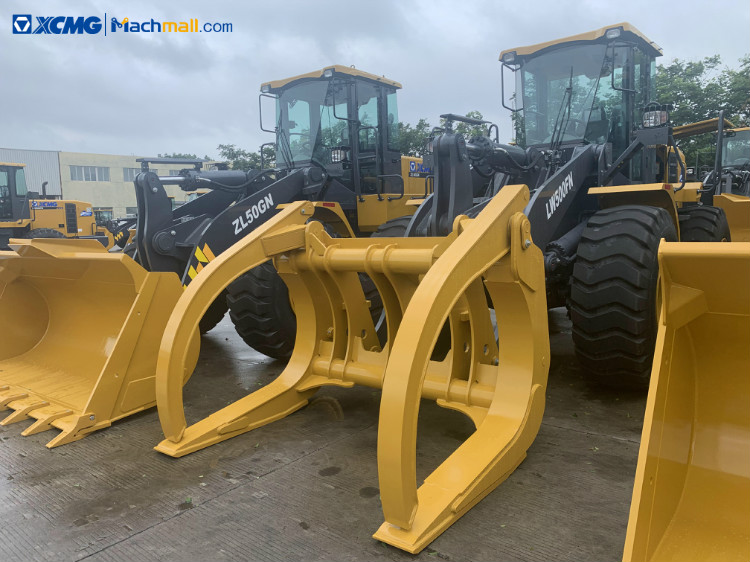

5. Variety attached tools meeting requirements of different working conditions:
Clipping plier I (paired teeth)/ Clipping plier II (staggered teeth)/ Toad's mouth clamp/ Port plier/ Grasping grass machine/Pallet fork/ Snowplow.
6. The ergonomically design cab adopts integral skeleton structure, delicate interior trim parts, and sound insulation and noise reduction measure, featuring broad visual field, super-large space, and high operation comfort.
|

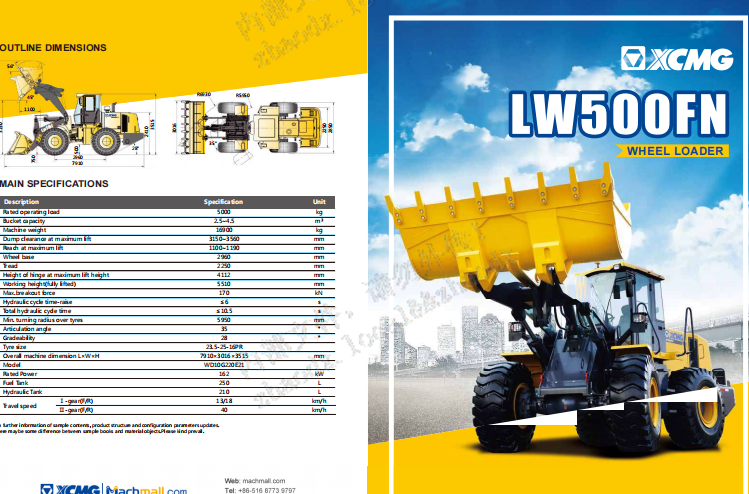

Description |
Unit |
|
Parameter value |
|
Rated operating load |
kg |
|
5000 |
|
Bucket capacity |
m³ |
|
2.5～4.5 |
|
Machine weight |
kg |
|
16900 |
|
Dump clearance at maximum lift |
mm |
|
3150～3560 |
|
Reach at maximum lift |
mm |
|
1100～1190 |
|
Wheel base |
mm |
|
2960 |
|
Tread |
mm |
|
2250 |
|
Height of hinge at maximum lift height |
mm |
|
4112 |
|
Working height(fully lifted) |
mm |
|
5510 |
|
Max.breakout force |
kN |
|
170 |
|
Hydraulic cycle time-raise |
s |
|
≤6 |
|
Total hydraulic cycle time |
s |
|
≤10.5 |
|
Min. turning radius over tyres |
mm |
|
5950 |
|
Articulation angle |
° |
|
35 |
|
Gradeability |
° |
|
28 |
|
Tyre size |
|
|
23.5-25-16PR |
|
Overall machine dimension L×W×H |
mm |
|
7910×3016×3515 |
|
Model |
|
|
WD10G220E21 |
|
Rated Power |
kW |
|
162 |
|
Fuel Tank |
L |
|
250 |
|
Hydraulic Tank |
L |
|
210 |
|
Travel Speed |
Ⅰ-gear(F/R) |
km/h |
13/18 |
|
|
Ⅱ-gear(F/R) |
km/h |
40 |
