Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):7546*3600*17724mm
- Weight:45000kg
- Power(W):150KW
- Model Number:XR130E
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu,China
- Power Type:Diesel
- Type:Rotary Drilling Rig
Specifications
- Weight:45000.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

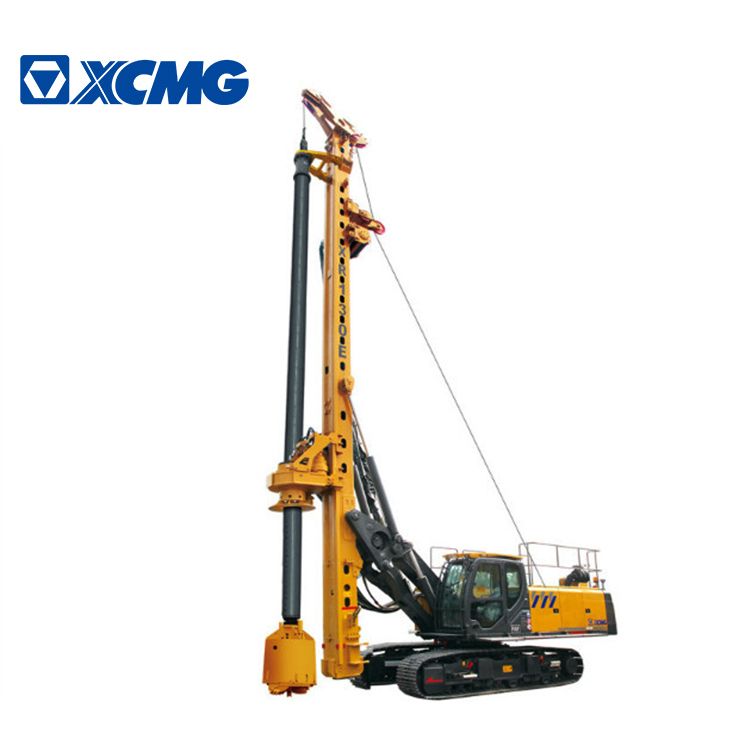

XCMG 150KW Rotary Drilling Rig XR130E Machine.
XCMG rotary drilling rig XR130E stands for our company's achievement in many years' development and researches on piling machine, adopting the advanced technology, both at home and abroad.
With our company's powerful machinery manufacturing capacity, XCMG rotary drilling rig XR130E is specially designed to drill the pile hole with the big diameter and into hard—layers, fitting for layer conditions in most areas.
Performance Characteristics:
1.XCMG rotary drilling rig XR130E adopts dedicated TDP series hydraulic retractable chassis and large—diameter slewing bearing and has high stability and convenience of transport It has long wheel base which makes it very adaptable to the terrain.
2. Transportation of the machine includes a drilling bar. Transportation width is only 2.5m and transportation height is only 3.5 m. Light transport weight makes easier to load and unload.
3. Rotary drive, main winch and auxiliary winch have high output speed, which develops the efficiency of work.
4. XCMG rotary drilling rig XR130E adopts guangxi cummins turbocharged engine with electro—control which provides strong power and meets the requirements of EU3 emission standard, can select imported engine of cummins.
5. XCMG rotary drilling rig XR130E adopts imported Kawasaki hydraulic system with high reliability and a lot of technology of XCMG.
6. XCMG rotary drilling rig XR130E adopts the technology of CAN electronic control and simplify the hydraulic plumbing system which improves the reliability of the machine.
7. A variety of specifications configuration of drilling bars are available which meets the needs of different working conditions.
8. Cylinder crowded, winch crowded, drive of casing pipe, CFA, spin—off type function are optional.
|
Description |
|
Unit |
Parameter value |
|
Max. drilling diameter |
|
mm |
1500 |
|
Max. drilling depth |
|
m |
56 |
|
Allowable luffing scope (from center of drill rod to slewing center) |
|
mm |
3250～3650 |
|
Drilling rig dimension in working condition (L × W × H) |
|
mm |
7550×4200×19040 |
|
Drilling rig dimension in transport condition (L × W × H) |
|
mm |
13150×2960×3140 |
|
Weight of overall unit (standard configuration, excluding drilling tool) |
|
t |
49 |
|
Engine |
Model |
|
CUMMINS QSB7 |
|
|
|
|
|
|
|
Rated power/speed |
kW |
150/（2050r/min） |
|
Max. working pressure of hydraulic system |
|
MPa |
35 |
|
Rotary drive |
Max. torque |
kN •m |
150 |
|
|
Rotational speed |
r/min |
7～33 |
|
Crowd cylinder |
Max. Pushing force |
kN |
120 |
|
|
Max. Pulling force |
kN |
160 |
|
|
Max.stroke |
mm |
3500 |
|
Main winch |
Max.pulling force |
kN |
160 |
|
|
Max. single-rope speed |
m/min |
72 |
|
|
Diameter of the steel wire rope |
mm |
26 |
|
Auxiliary winch |
Max.pulling force |
kN |
50 |
|
|
Max. single-rope speed |
m/min |
60 |
|
|
Diameter of the steel wire rope |
mm |
16 |
|
Rotary table slewing angle |
|
° |
360 |
|
Traveling |
Max. traveling speed of the overall unit |
km/h |
2.1 |
|
|
Max. climbable gradient of the overall unit |
% |
40 |
|
Crawler |
Width of crawler plate |
mm |
700 |
|
|
External width of crawler (min.-max.) |
mm |
2960～4200 |
|
|
Center distance between two longitudinal wheels of crawler |
mm |
4310 |
|
|
Average ground pressure |
kPa |
83 |
