XCMG Official XTC80/60M Diaphragm Wall Grab Underground Trench Cutter Machine for Sale
Summary
- Model Number:XTC80/60M
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Groove depth（mm）: 80m
- Max. lifting power:567/1800kW/r/min
Specifications
- Weight:1000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

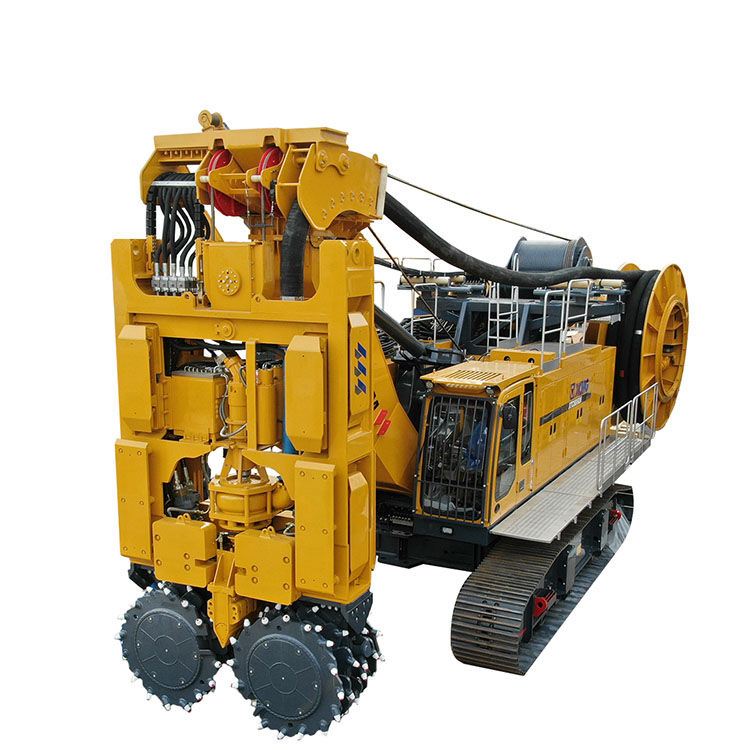

XCMG Official Diaphragm Wall Grab Underground Trench Cutter Machine XTC80/60M.
XTC80/60M Trench Cutter is designed for low construction space. It can be used in underground deep foundation engineering seepage wall, retaining wall, load-bearing wall construction for such as subway station, foundation pits buildings, high-rise building basement, underground commercial, reservoir dam, port, mine, environmental engineering, etc.
1.The Using of crawler chassis hydrolic extension, which is XCMG' s advanced technologies, makes the trench cutter has strong ability to walk, high stability.
2.With the fast lfting and automatic feeding function, enhance the construction efficiency effectively.
3.Advanced technology of milling tooth arrangement, with the patented technology of oscillating tooth blind area milling mechanism, that ensured the equipment has high efficiency of construction.
4.To guarantee the higher efficiency and reliability, Using a variety of advanced control methods, Hydraulic system allocation of imported hydraulic components.
5.Based on the advanced intelligent control system, by monitoring, real-time status display, the operator can fully understand the operation and construction of the equipment, implement human-computer interaction effectively.
6. Special host type，which makes system matching more perfect and higher construction efficiency.
|
Type |
Units |
Data |
|
|
Trench width |
mm |
800-1500 |
|
|
Max. wall depth |
m |
80 |
|
|
Trench length |
mm |
2800 |
|
|
Trench accuracy |
% |
3 |
|
|
Max. torque |
kN.m |
2x80 |
|
|
Rotary speed |
r/min |
0~25 |
|
|
Max. hoisting force |
kN |
640 |
|
|
Max. hoisting speed |
m/min |
60 |
|
|
Rope diameter |
mm |
φ26 |
|
|
System pressure |
MPa |
32 |
|
|
Work radius |
mm |
4500~ 5200 |
|
|
Engine |
Model |
QSK23 |
|
|
Rate Power |
kW/r/min |
567/1800 |
|
|
Undercarriage |
Track width outside |
mm |
3700-5100 |
|
Track shoe width |
mm |
900 |
|
|
Max. taveling speed |
km/h |
1 |
|
|
Max. grade ability |
% |
35 |
|
|
Min. clearance |
mm |
450 |
|
|
Machine Size |
Working condition |
mm |
11665*6575*17500 |
|
Walking state |
mm |
14175*3700*3560 |
|
|
Total weight |
t |
138 |
|
