Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):8350×4200×20480mm
- Weight:58000kg
- Power(W):194kW
- Model Number:XR180DII
- Brand Name:XCMG
- Place of Origin:XuZhou,China
- Power Type:Diesel
- Type:Rotary Drilling Rig
Specifications
- Weight:58000.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

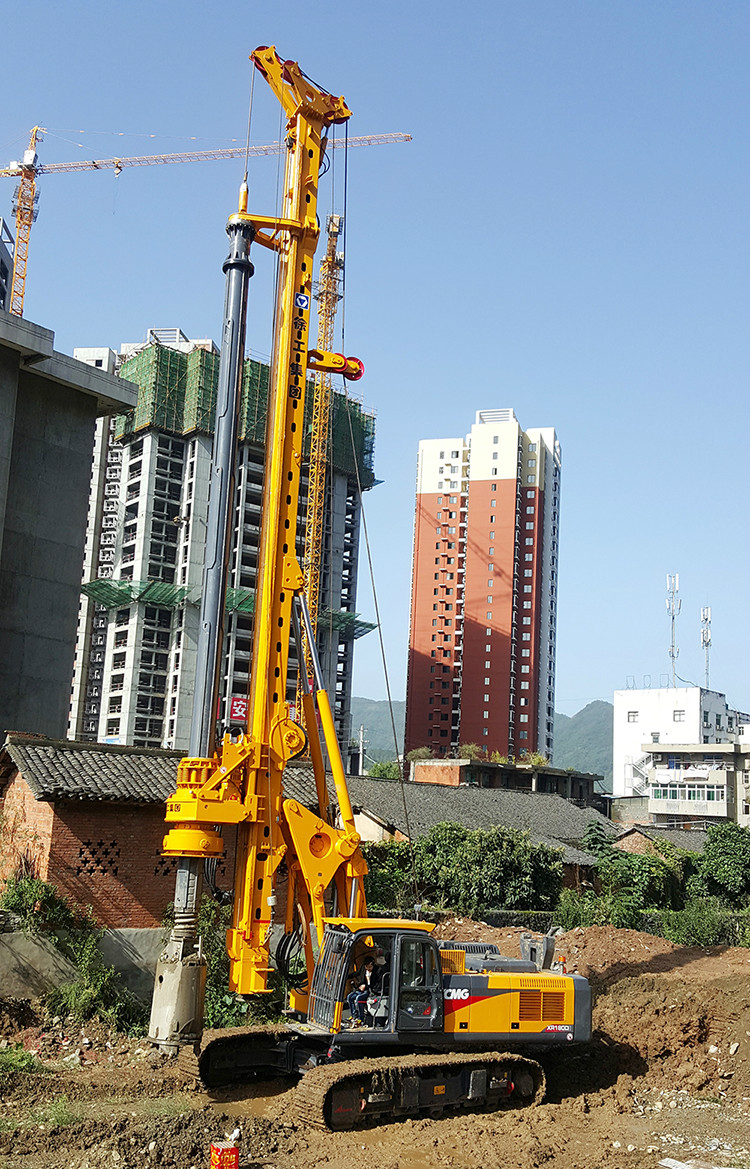

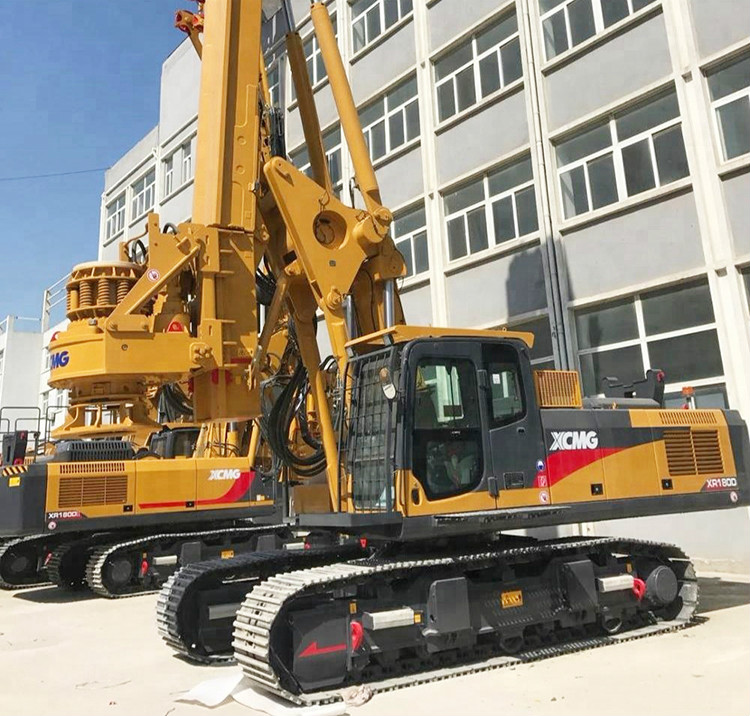

XCMG XR180DII 180kn 46m hydraulic pile rig Rotary Drilling Rig
XCMG 180kn 46m hydraulic pile rig Rotary Drilling Rig XR180DII widely used in boring operation of bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks and high-rise buildings.
1. Hydraulic telescopic (TDP series) track chassis and large diameter of slewing bearing which is special for rotary drilling rig is used, and meets super strong stability and convenience of transportation.
2. The original imported electronic-controlled turbocharged engine is used with strong power, and the emission meets North America Tier 4 Final, Europe stageⅣ emission standard.
3. German hydraulic system is used, and for which the positive flow control, load sensing control and power limit control is used to make the hydraulic system more energy efficient.
4. Single row of rope and master winch is used to solve effectively the wear issue of steel wire rope and increase effectively the service life of steel wire rope; and the master winch is provided with drilling depth detector, and the single row of rope makes the depth detection more accurate.
5. Anti-noise cab with FOPS function, adjustable seat, air conditioner, interior and exterior lights, windshield wiper with water spray function. Control console with various instruments and handles, color LCD with powerful function.
|

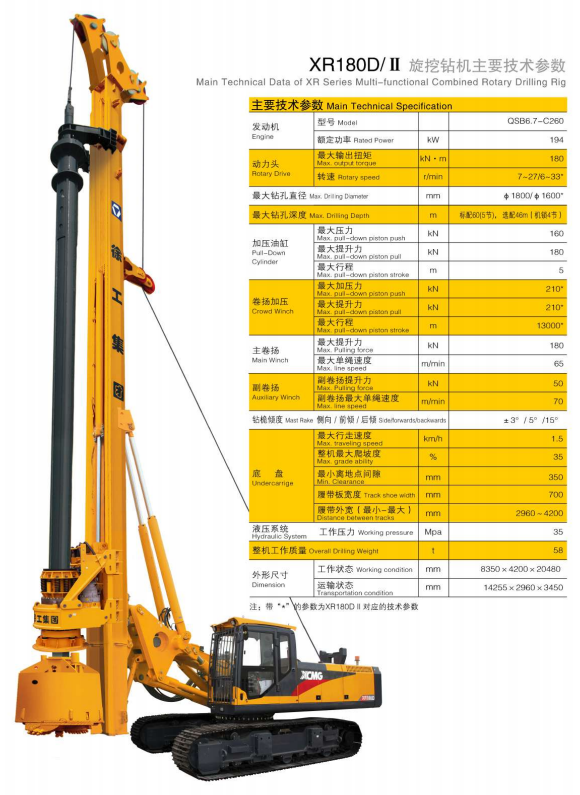

Description |
Unit |
Parameter value |
|
|
Max. drilling diameter |
mm |
1800 |
|
|
Max. drilling depth |
m |
60m -standard configuration |
|
|
(5-section friction Kelly bar)46 |
|||
|
46m -optional configuration |
|||
|
(4-section-locking Kelly bar) |
|||
|
Allowable luffing scope (from center of drill rod to slewing center) |
mm |
3560~3900 |
|
|
Drilling rig dimension in working condition (L*W*H) |
mm |
8350*4200*20480 |
|
|
Drilling rig dimension in transport condition (L*W*H) |
mm |
14255*3000*3455 |
|
|
Weight of overall unit (standard configuration, excluding drilling tool) |
t |
58 |
|
|
Engine |
Model |
QSB6.7 |
|
|
Rated power/speed |
kW |
194/(2200r/min) |
|
|
Max. working pressure of hydraulic system |
MPa |
35 |
|
|
Rotary drive |
Max. torque |
kN.m |
180 |
|
Rotational speed |
r/min |
7~27 |
|
|
Crowd cylinder |
Max. Pushing force |
kN |
160 |
|
Max. Pulling force |
kN |
180 |
|
|
Max. stroke |
mm |
5000 |
|
|
Main winch |
Max. pulling force |
kN |
180 |
|
Max. single-rope speed |
m/min |
65 |
|
|
Diameter of the steel wire rope |
mm |
180 |
|
|
Auxiliary winch |
Max. pulling force |
kN |
50 |
|
Max. single-rope speed |
m/min |
70 |
|
|
Diameter of the steel wire rope |
mm |
16 |
|
|
Rotary table slewing angle |
° |
360 |
|
|
Traveling |
Max. traveling speed of the overall unit |
km/h |
1.5 |
|
Max. climbable gradient of the overall unit |
% |
35 |
|
|
Crawler |
Width of crawler plate |
mm |
700 |
|
External width of crawler (min.-max.) |
mm |
2960~4200 |
|
|
Center distance between two longitudinal wheels of crawler |
mm |
4270 |
|
|
Average ground pressure |
kPa |
94 |
|
