XCMG trenching machine diaphragm wall hydraulic grab XG600D for sale
Summary
- Model Number:XG600D
- Brand Name:XCMG
- Place of Origin:China
- Groove depth(mm):105m
- Groove thickness(mm):600~1500mm
- Max. lifting power:298/2100kW/rpm
Specifications
- Weight:1000.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

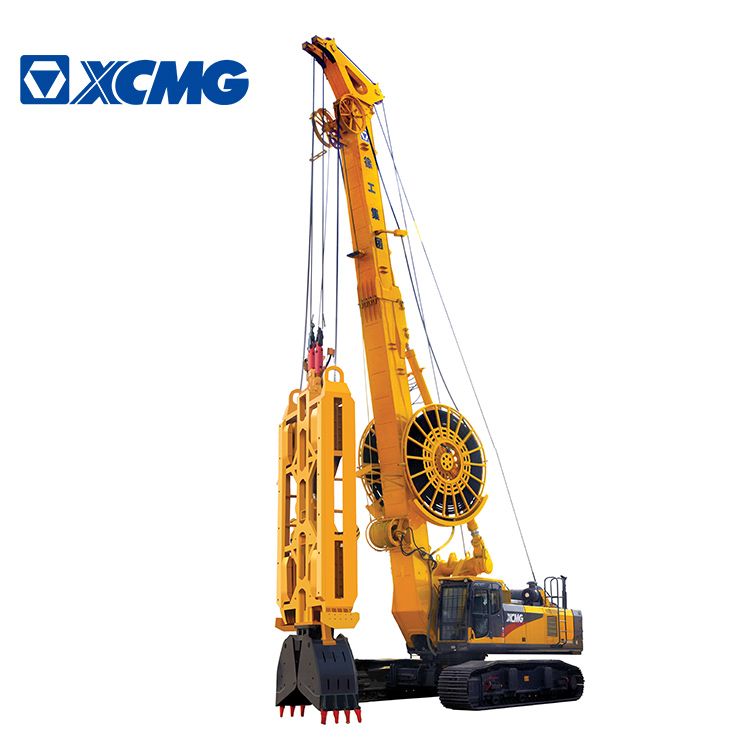

XCMG underground diaphragm wall grab machine XG600D.
1.The specific extra-wide chassis manufactured with XCMG's mature technologies , having large swiveling bearing, provides super stability.
2.Double winch and single row rope construction extend the life-span of the steel rope, reduce the construction cost .The control system equipped with an encoder ensures the accurate synchronization of double winches reduces the frequency of synchronized adjustment and increases the construction efficiency.
3.Equipped with advanced inclinometer, which can provide the grab adjustment and fall down protection function, it can record and memory the locus grab, and draw the wall curve. This can effectively guarantee the wall precision.
4.With the load-sensing control, the hydraulic system can effectively increase the utilization rate of system resources and also the construction efficiency.
5.With quick plug connectors used in the circuit of control system, the fault rate is reduced and accordingly the time consumed for fault detection is shortened.
Type |
Units |
Data |
|
Wall depth |
m |
105 |
|
Wall thickness |
mm |
600~1500 |
|
Max. Pull-down piston pull |
kN |
2X300 |
|
Max. pul/push speed |
m/min |
40 |
|
Grab opening time |
sec |
5 |
|
Grab closing time |
sec |
5.4 |
|
Hydraulic system pressure |
MPa |
33 |
|
Work radius |
mm |
4600~5800 |
|
Engine |
Model |
QSM11 |
|
Rated Power |
kW/rpm |
298/2100 |
|
Undercarrige |
Max. taveling speed |
km/h |
1.5 |
Max. grade ability |
% |
35 |
|
Min. Clearance |
mm |
450 |
|
Track shoe width |
mm |
800 |
|
Distance between tracks |
mm |
3500~4900 |
|
Dimension |
Working condition |
mm |
11650*4900*18910 |
Transportation condition |
mm |
16120*3500*3800 |
|
Overall diling weight |
t |
120 |
