Summary
- Dimension(Long * Breadth * High):4993×3479×3150 mm
- Machine Weight:16500 kg
- Model Number:TY160-3
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu
- Certification:ISO9001
Specifications
- Weight:16500.000kg
- Condition:New
- Moving Type:Crawler
- Gearbox:Planetary gear, multi-disc clutch, hydraulic combined forced lubrication
- Torque converter:Three-element, single-stage single-phase
- Min. turning radius:4191 mm
- Blade quality:1930 kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

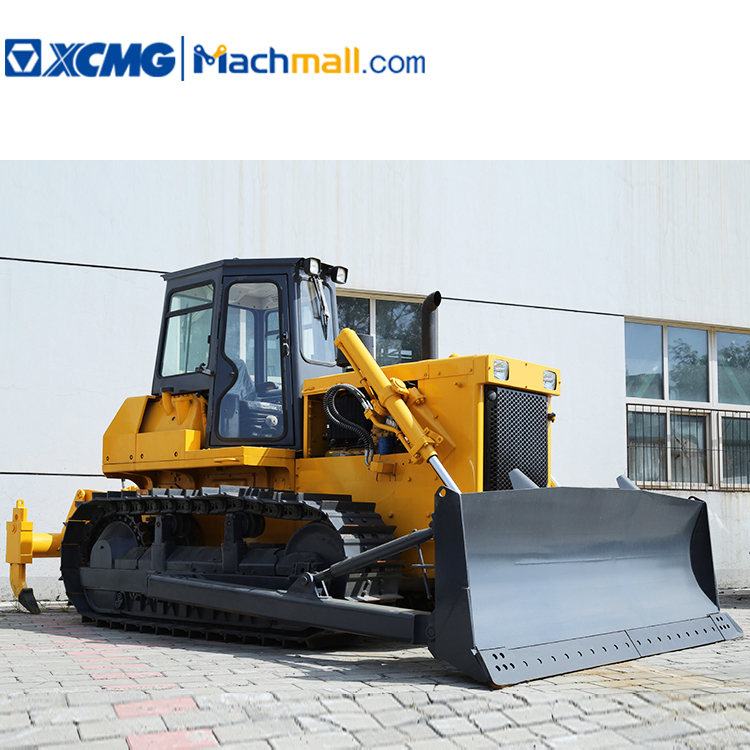

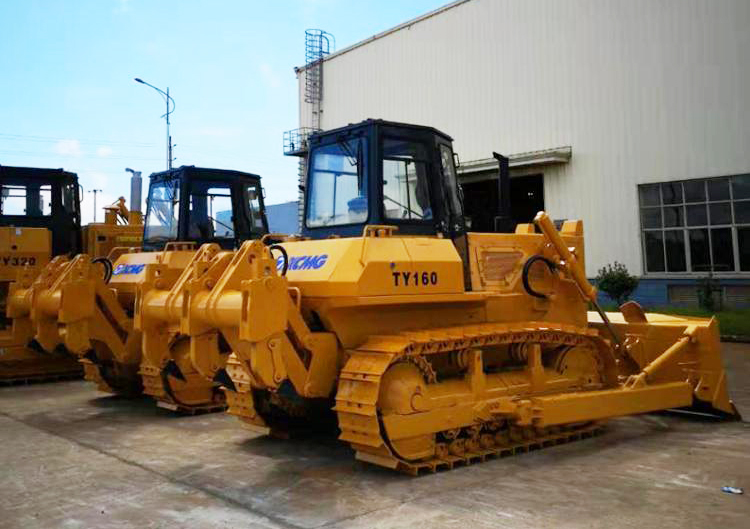

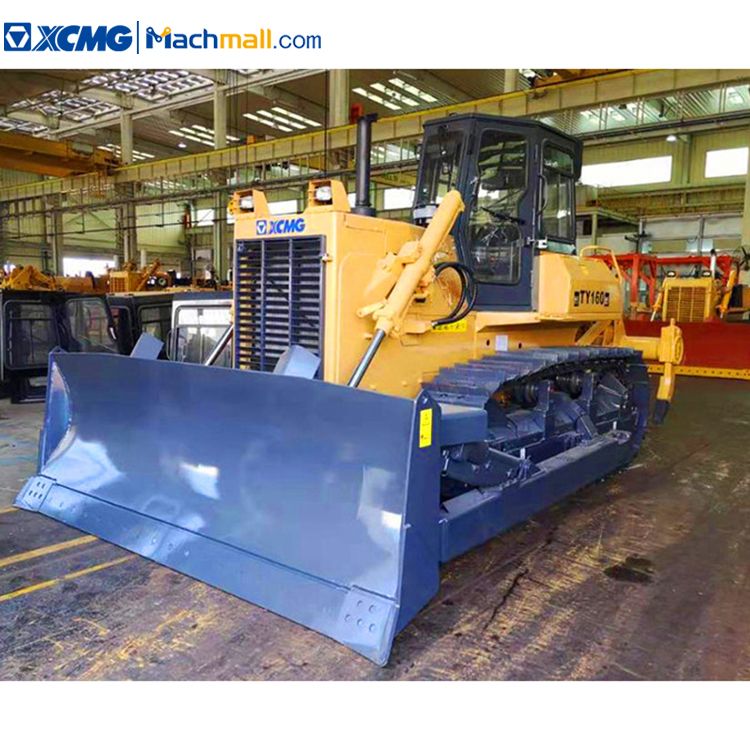

XCMG new crawler bulldozer TY160-3 160HP with optional shovel.
XCMG new crawler bulldozer TY160-3 160HP with optional shovel which has excellent power, reliability and a long service life. Through the introduction of Japanese D65A-8 bulldozer technology, at the same time absorb the advantages of D60A-8, The TY160-3 crawler type bulldozer has been developed by the domestic design.
Features:
1. High engine power reserve, strong torque output, low fuel consumption, reliable controls.
2. Hydraulically powered, automatic speed change, shift the gears without stop the vehicle.
3. 3 elements, single stage and single phase torque convertor features high efficiency and capacity.
4. The updated hexahedral cab features outstanding visibility and good tightness.
5. New blade is more durable and capacious.
6. Alarming & monitoring system is reliable.
7. Reliable manual- operated spool valve and external mounted valve for easy maintenance.
|
Model |
TY160-3 |
|||
|
Blade type |
Straight tipping shovel |
U-shaped shovel |
Angle Shovel |
|
|
The quality of the whole machine(kg) |
16500 |
16700 |
16800 |
|
|
Blade quality(kg) |
1930 |
2250 |
2150 |
|
|
Dimensions(mm) |
4993×3479×3150 |
5481×3479×3150 |
5194×3789×3150 |
|
|
(Length×width×height) |
||||
|
Min. turning radius |
4191 |
4577 |
4445 |
|
|
Climbing performance |
Vertical30º、Horizontal25 º |
Vertical30º、Horizontal25 º |
Vertical30º、Horizontal25 º |
|
|
Ground pressure（kPa） |
65.6 |
66 |
66.4 |
|
|
Ground clearance(mm) |
400 |
|||
|
Flywheel power(kW) |
121 |
|||
|
Largest traction（kN） |
138.3 |
139.1 |
140 |
|
