Summary
- Loder Weight:1000kg
- Dimension(L*W*H):3000*1500*2200mm
- Max Lifting Height:100m
- Hoisting Speed:0-28m/min
- Rated Loading Capacity(kg):1000kg
- Model Number:SC100/100
- Brand Name:XZJJ
- Place of Origin:Xuzhou Jiangsu

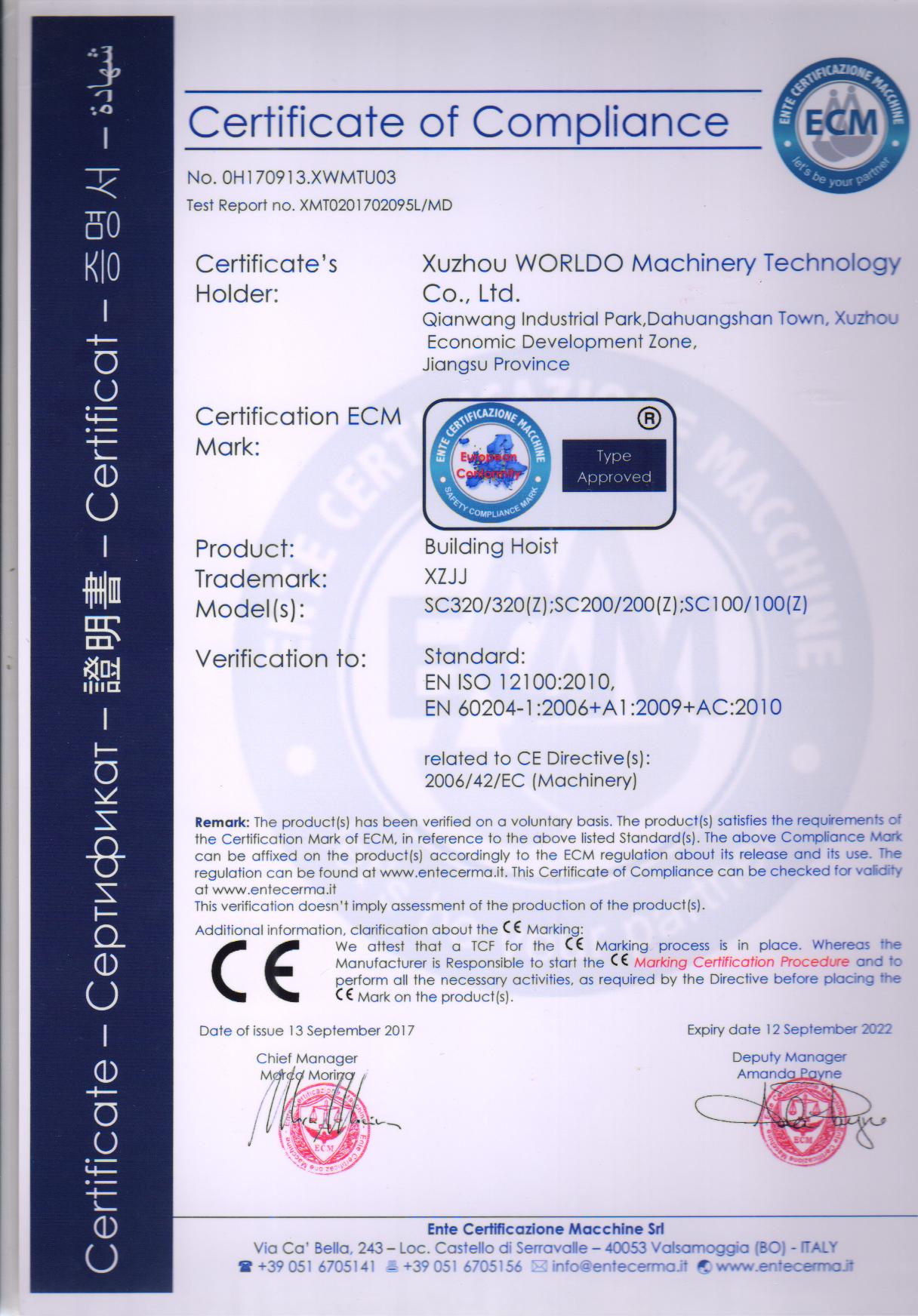

- Certification:CE/ISO
Specifications
- Weight:10000.000kg
- Condition:New
- Moving Type:Other
- fully intelligent control:without a cauffeur
- frequency converting controrl:0-28m/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Xuzhou WORLDO Machinery Technology Co.Ltd.was a branch Company of XCMG Group,the former is the branch of construction machinery form Xuzhou Construction Machinery Co .,Ltd.It is specialized in the R&D,manufacturing,installation and maintenance of building hoist sand various construction machinery applicable tools.
Since 1995,it started production of SC(D)200/200 building hoist ,after twenty years of concentrated training ,currently the building hoists include load capacity is from 1 ton to 3.2Tons,speed is from low to middle high ,driving form is from the traditional worm gear drive to gear drive control system is from ordinary AC contractor control to transducer control etc.The brand “XZJJ” win a widely reputation at home and abroad.
Xuzhou WORLDO Machinery Technology Co., Ltd.has a high-quality R&D team ,established a partnerships with Dalian University of Technology and its R&D Center,for the building hoist product series ,optimized design,combining internet technology the building hoist products to get continued promote.We have acquired a dozen patents.We also won the certification of national high-tech enterprises, Jiangsu Province private technology enterprises ,high-tech products identification.
The company constantly strengthen and perfect quality management system according to Standard ISO 9001.It keeps scientific management,careful operation ,a variety of manufacturing ,testing equipment ,the special tooling ,full facilities .With an annual manufacturing capacity of 1000units of building hoists and construction machinery attachments,our annual output value of more than three hundred million RMB,can meet the various needs of customers.
The company keeps innovation and diversity of development,based on the main business.We have designed crane clamp grab,clamshell grab,orange peel grab,port crane and crane clamshell grab attachments ,which are received a high praise .As the parking problem gradually revealed,three-dimensional garage as our company strategic goods have been effective technical reserves,which make WORLDO diversified development being more impressive.

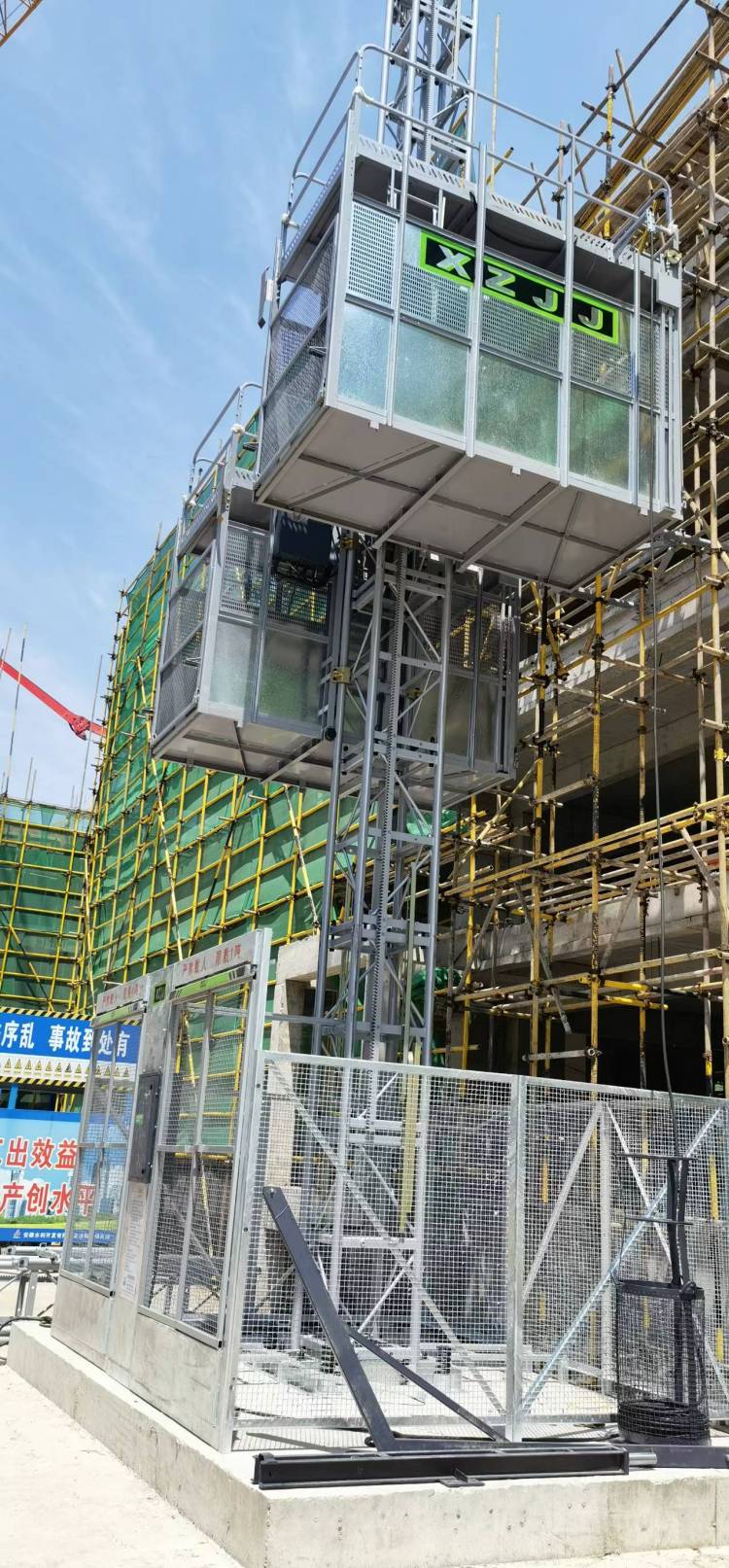

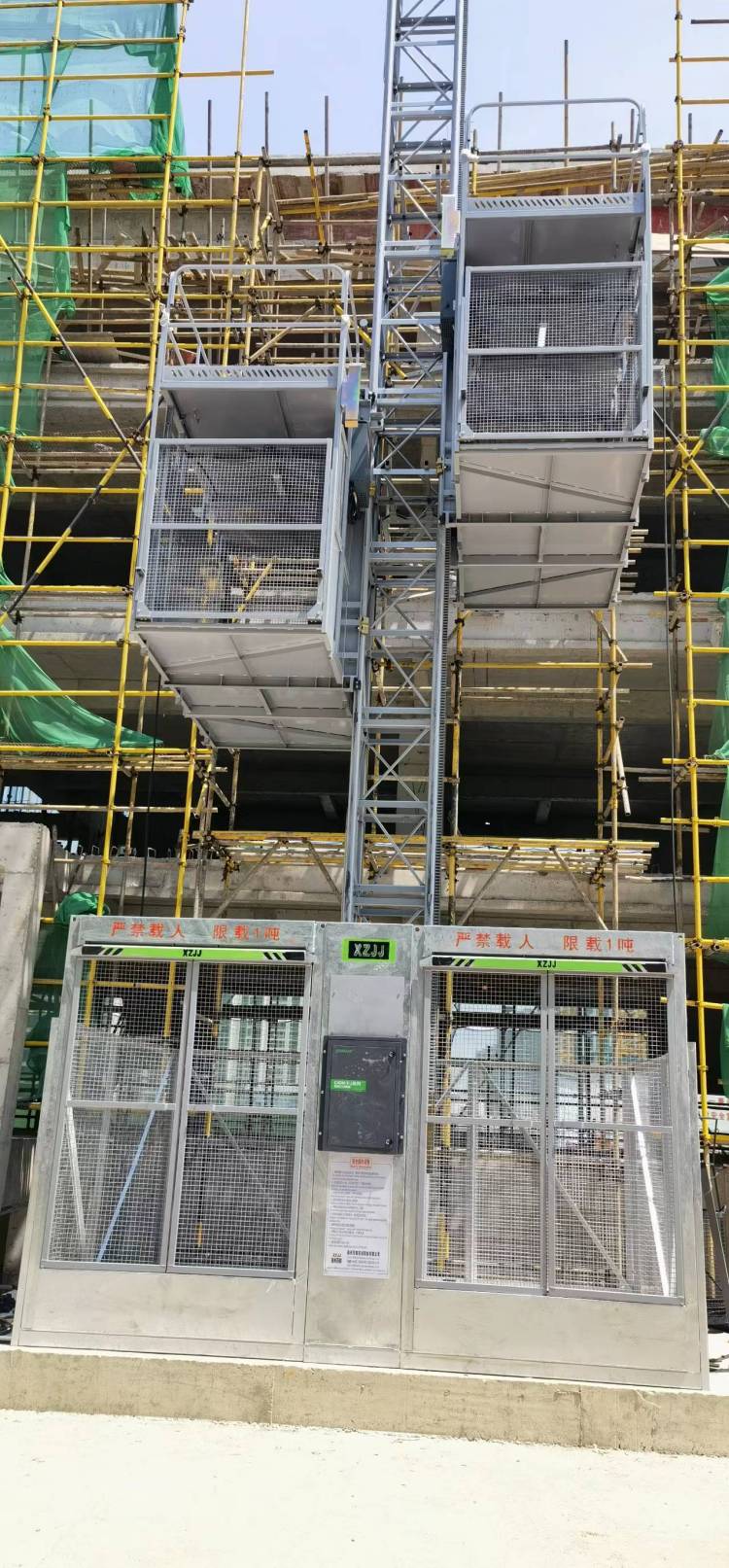

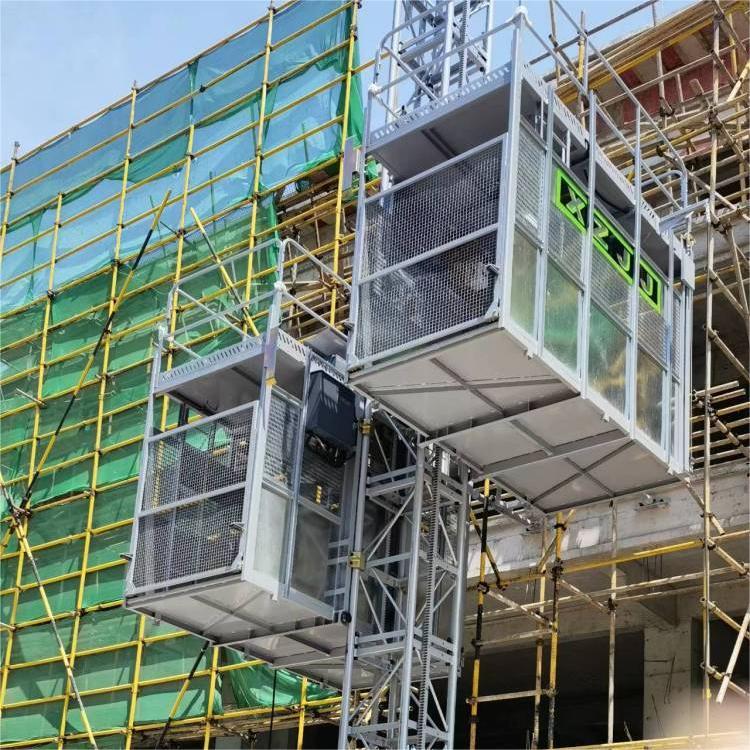

SC100/100(M)type freight construction hoist ,base on the technology of both freight and person dual-purpose SC series construction elevator .combining the characteristics of low rise buildings,absorb the current domestic and foreign advanced technology design and development of a new generation of freight elevator construction freight lifts,reasonable structure,safe,easy disassembly and maintenance ,attractive appearance ,long service life.

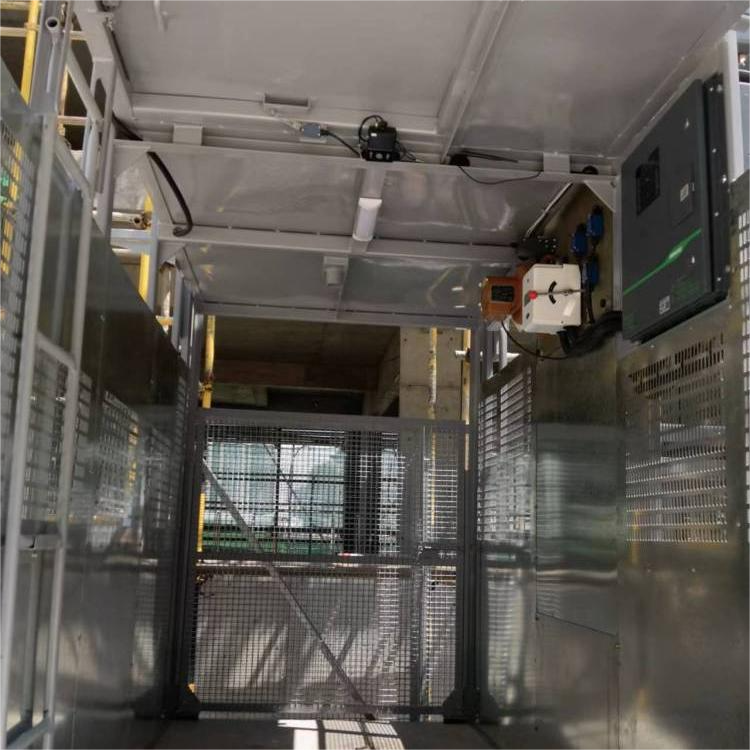

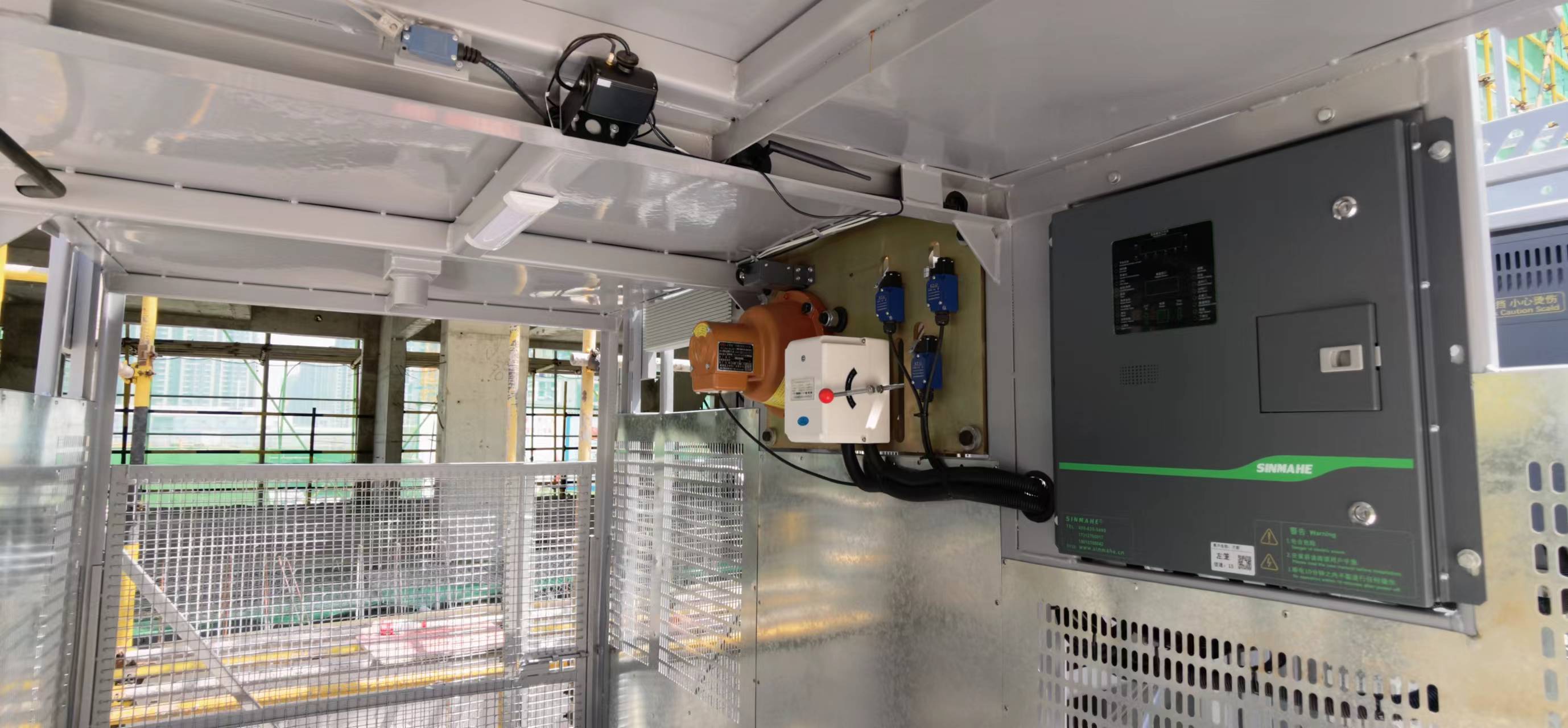

This products use single-motor rack and pinion ,the transmission machanism placed inside the cage ,the anti-fall safety device ,overload protection ,limit switches,etc.set in the drive plate ,cage installation of cameras,equipped with a monitor display screen special operation Taiwan set up in the cage ,remote operation via cable .Its main components rail brackets and rack attached to the wall with the SC series construction hoist common people and goods.
The product is suitable for the building construction which lower than the height of 40 meters to vertical transport of freight.
Technical data | Unit | SC100/100BP | Parameter |
Rated load | kg | 2000*2 | |
Maximum lifting heigjt | m | 100 | |
Lifting speed | m/min | 0-28 | |
Jid attachment rated load | kg | 250 | |
Rated output | kw | 2*13 | |
Rated current | A | 2*2*23.2 | |
Security anti-dropping model | / | SAJ3.0-1.2 | |
Voltage of power supply | v/hz | 380/50 | |
Mast section | mm | 650*650*1508 | |
The hoist space | mm | 3000*1300*2200 |
