Summary
- Loder Weight:2000kg*2
- Dimension(L*W*H):3200*1500*2500
- Max Lifting Height:250m
- Hoisting Speed:0-40m/min
- Rated Loading Capacity(kg):2000kg*2
- Model Number:SC200/200
- Brand Name:XZJJ
- Place of Origin:Xuzhou Jiangsu China
- Certification:ISO9001,CE
Specifications
- Weight:14000.000kg
- Condition:New
- Moving Type:Other
- transport plane:two-ton
- outdoor lift:two cages

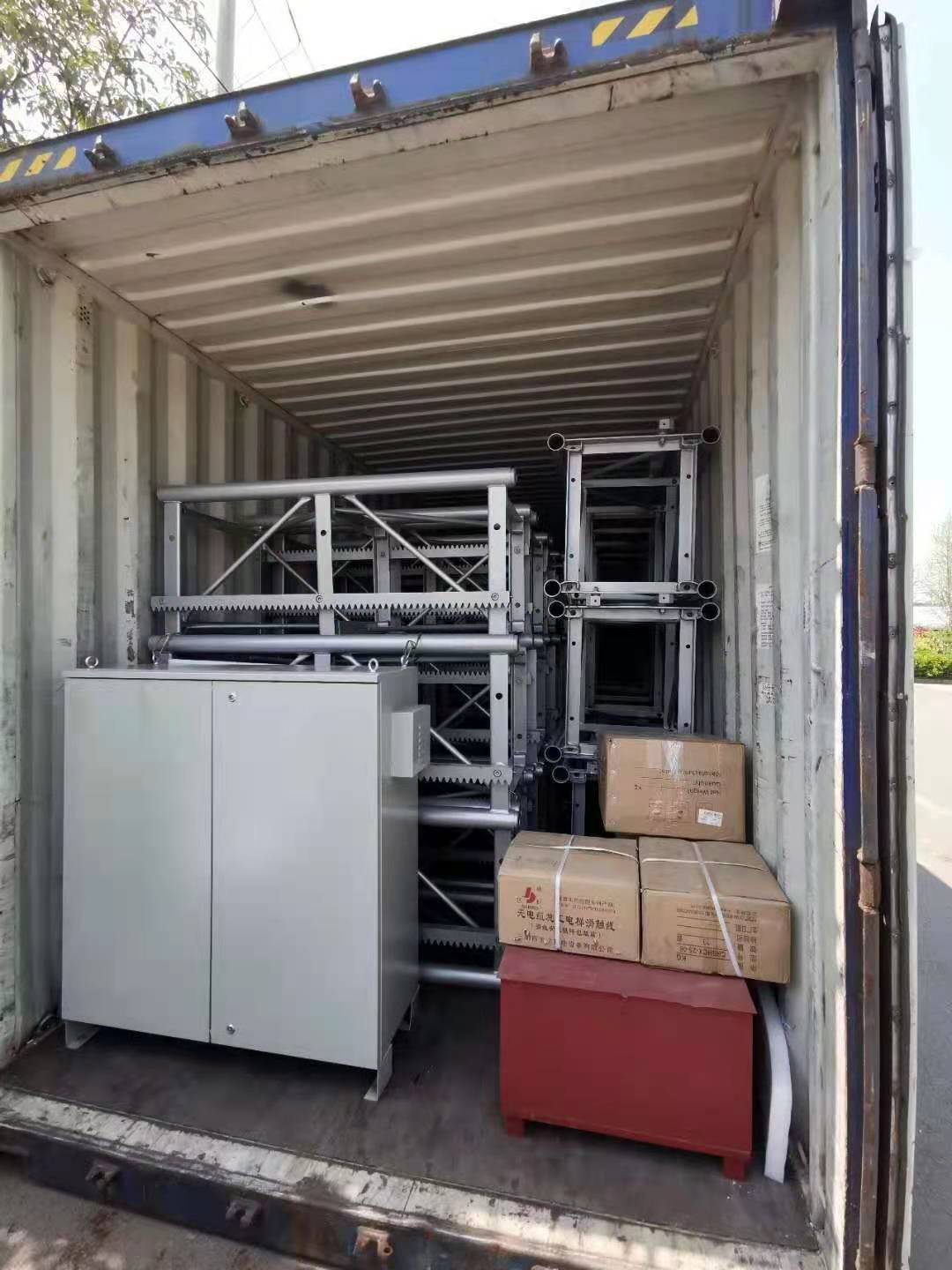

Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

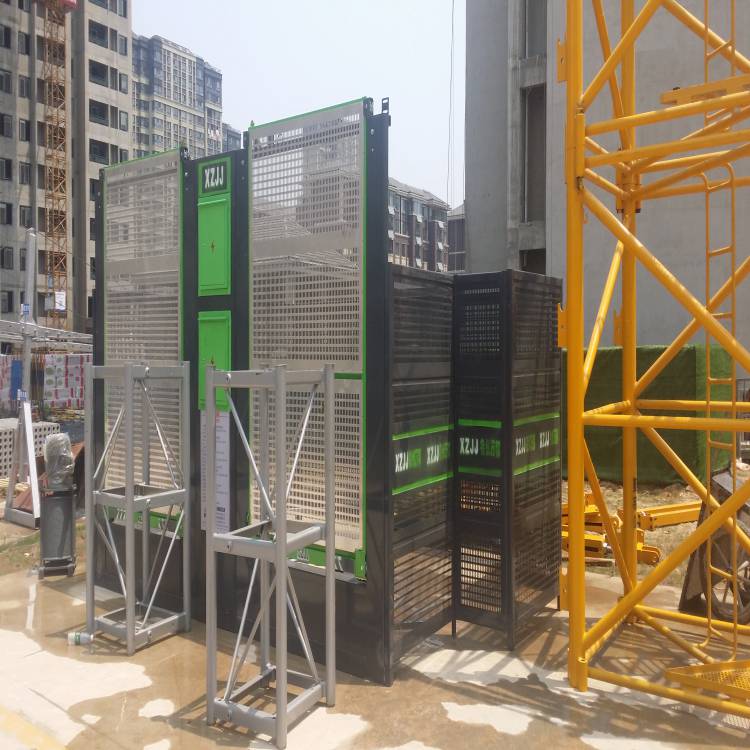

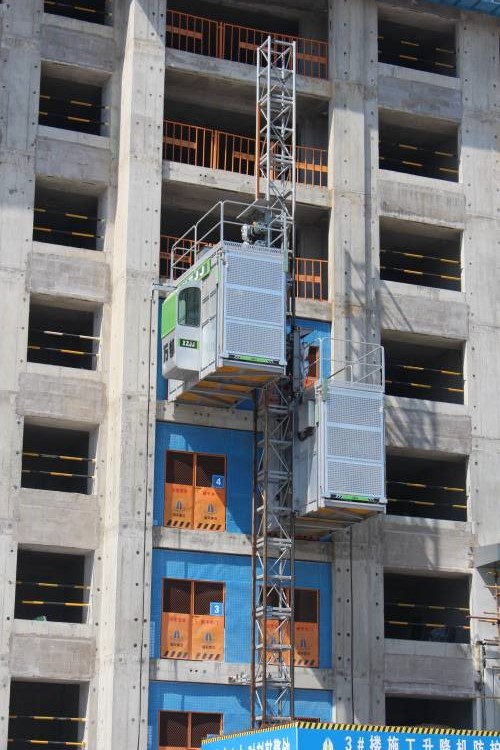

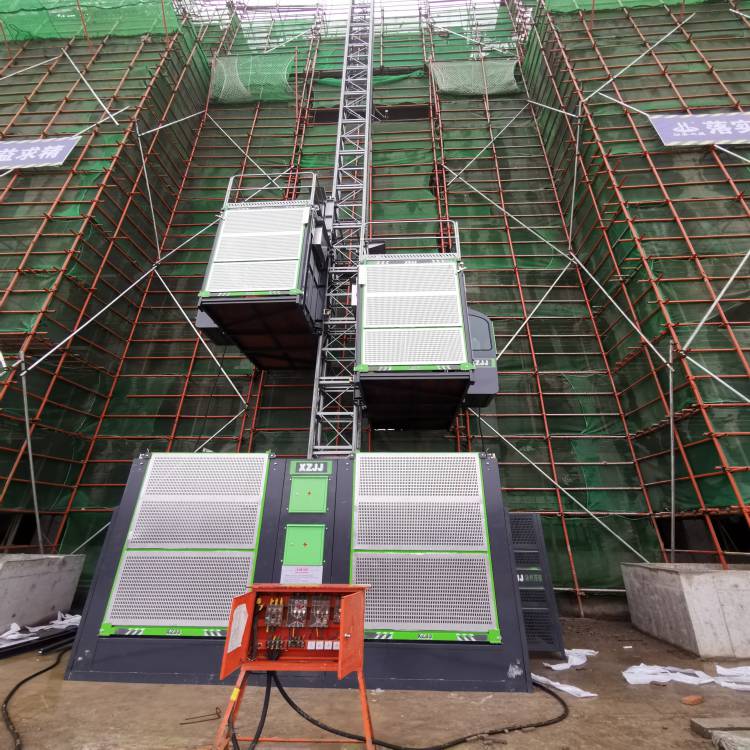

The SC200/200 construction hoist the new-generation product designed with advanced technology from domestic and abroad introduced to our company.Compared with traditional construction hoist,the new generation SC200/200 is more comfortable,safe,reliable and conpact structure,strong and double cages ,attractive appearance anf delicate parts.

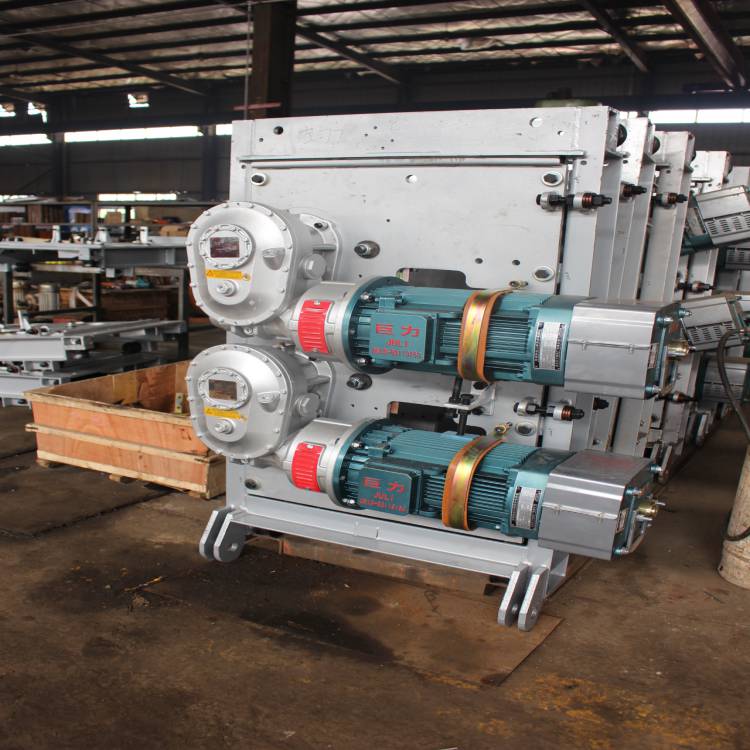

There are many types of drive machanisms include three-motors,two motors and energy saving new type etc.The transmission plate is fitted at top of cage to avoid any header accident and provide a comfortable cage for passengers,floor calling system,over load limiter,volt displayer are integrated on control panel for conveenient operation.Many patent technologies such as anti-derail technology are used on each guide wheels to ensure safe runing.
|
|
|
Value |
||||
|
Technical data |
Unit |
SC200/200 |
SC200/200BP |
SC200/200Z |
SC200/200G |
|
|
Rated load |
kg |
2*2000 |
||||
|
Maximum lifting heigjt |
m |
250 |
450 |
|||
|
Lifting speed |
M/min |
33 |
0-40 |
0-63 |
0-96 |
|
|
Jid attachment rated load |
kg |
250 |
||||
|
Rated output |
kw |
2*3*11 |
2*3*18.5 |
2*3*18.5 |
2*2*18.5 |
|
|
Rated current |
A |
2*3*23.2 |
2*3*37.8 |
2*3*39 |
||
|
Inverter power |
kw |
/ |
37 |
75 |
|
|
|
Security anti-dropping model |
/ |
SAJ4.0-1.2 |
SAJ4.0-1.2 |
SAJ5..0-1.4 |
SAJ5.0-2.0 |
|
|
Voltag of power suooly |
V/Hz |
380/50 |
380/50 |
380/50 |
380/50 |
|
|
Power capacity |
KVA |
120 |
120 |
120 |
120 |
|
|

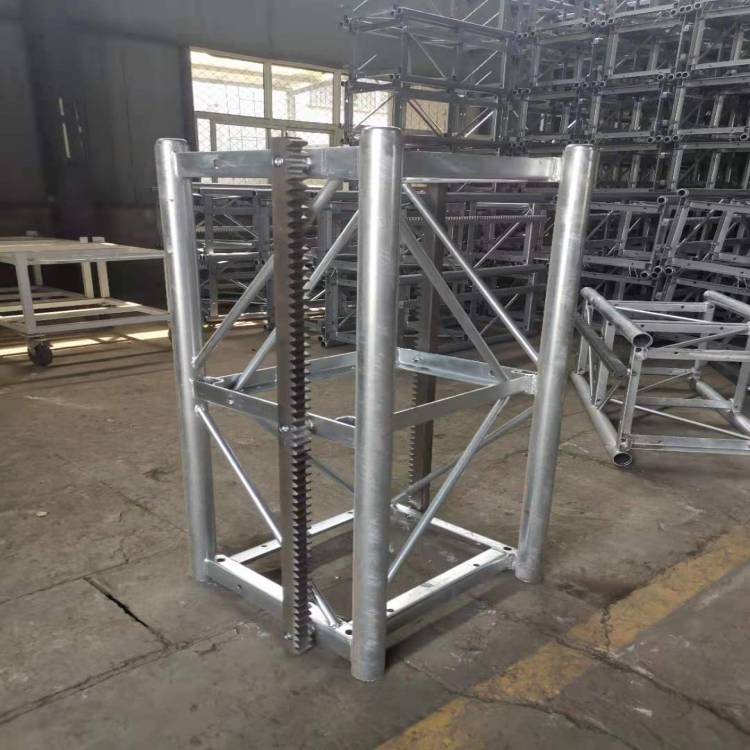

Mast section |
mm |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
|
|
The hoist space |
mm |
3000*1300*2200 3000*1500*2200 3200*1500*2500 |
3000*1300*2200 3000*1500*2200 3200*1500*2500 |
3000*1300*2200 3000*1500*2200 3200*1500*2500 |
3000*1300*2200 3000*1500*2200 3200*1500*2500 |
|
