XCMG 8 Ton 9000L Sprinkler-Sweeping Truck XZJ5160TXSD5 Sanitary Engineering Road Sweeper Truck price
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):8612x2490x2980mm
- Weight:15800kg
- Model Number:XZJ5160TXSD5
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Water tank capacity:9000L
- Working speed:3~20km/h
Specifications
- Weight:15800.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

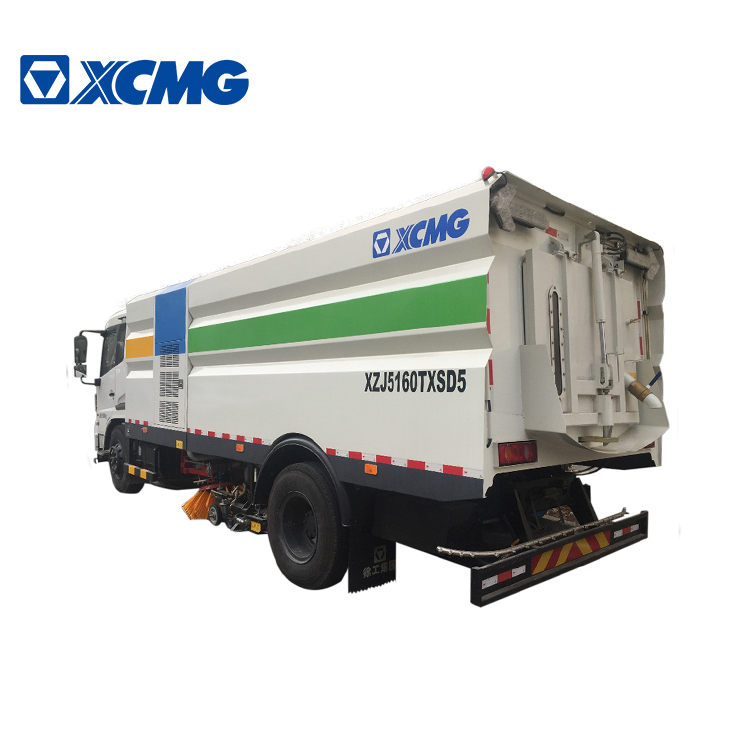

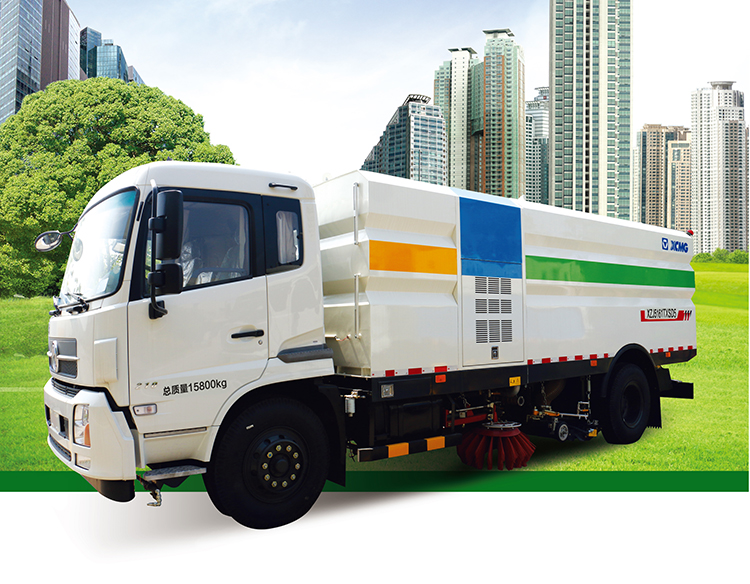

XCMG 8 Ton 9000L Sprinkler-Sweeping Truck XZJ5160TXSD5
Sanitary Engineering Road Sweeper Truck.

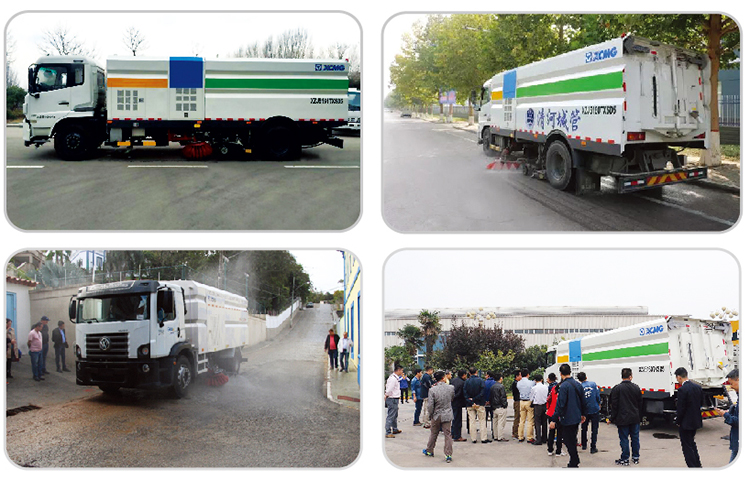

The sprinkler-sweeper truck is our self-developed and
multi-functional sanitation product, with road cleaning, low pressure rinsing,
water spraying functions as one. It combines traditional sweepers and cleaning
vehicles function in principle, while the use of spray devices can make dust
fall. It is widely used in urban roads, highways, squares, airports, terminals,
tunnels, bridges and other occasions, cleaning, sweeping, spraying dust and
other cleaning operations.
1. 9-26No.6.3C high-pressure centrifugal fan is used,
with high efficiency and high blast capacity (maximum blast capacity:
12,000m³/h).
2. The mode of vertical brushing (with the unified type
as the cleaning sweeper truck in the Plant) is adopted for the sweeping plate.
Compared with the sweeping plate branded Zoomlion and FLM, this plate has more
functions. It is capable of both road sweeping and curb cleaning. At the same
time, it also continues the structure of the sweeping plate in the Plant, and
makes great improvement to the universality.
3. This truck is provided with diversified functions
including pavement cleaning, pavement sweeping, curb cleaning, curb vertical
face brushing, spraying and aspirating. Multiple operating modes can be
realized, such as "full washing & sweeping", "left washing
& sweeping", "right washing & sweeping", "full
sweeping", "left sweeping", "right sweeping" and
"pure absorption". When it is necessary for spraying and aspirating,
the spraying device can be started for spraying and aspirating.
4. An auxiliary engine is used to exclusively drive the
fan and the hydraulic system, making sure continuous work in the driving
process and the continuity in the sweeping process.
5. The structure of "two sweepers in the middle +
long suction nozzle in the middle + V-shaped spray lance" is adopted,
which improves the sweeping efficiency and makes it convenient for adjustment
and maintenance of the cleaning device and the suction nozzle. It is of good
trafficability while being transferred to another site.
6. The sweeping plate is provided with the function of
automatic avoidance for protection and automatic resetting in case of an
obstacle. While encountering an obstacle, it will retract and reset
automatically after crossing the obstacle.
|
Description |
Specification |
|
Automotive chassis Model,categoryand manufacturer of
chassis |
DFL1160BX1V (Standard China V) |
|
Automotive chassis Model and manufacturer of
engine |
4HK1-TC51, 4KH1-TCG51 |
|
Automotive chassis Rated power of engine |
141kW/2600r/min |
|
Automotive chassis Front wheel |
7.00-16 14PR |
|
Auxiliary engine Model and manufacturer |
EQ6BT5.9 or QSB5.9-C160-30 (Standard China III) |
|
Auxiliary engine Power |
118kw/2500r/min;120kw/2200r/min |
|
Auxiliary engine Clutch |
Single plate, dry type and diaphragm spring |
|
Fan Type |
Special high-pressure centrifugal fan |
|
Fan Mode of transmission |
Narrow V belt drive |
|
Hydraulic system Type |
Open type, EHC and centralized control |
|
Hydraulic system Overflow pressure |
14 MPa |
|
Hydraulic system Hydraulic oil capacity |
60 L |
|
Electrical system Control mode |
PLC control + manual control, voice alarm, electromechanical
liquid interlocking, etc. |
|
Electrical system Chassis system voltage |
24 V |
|
Electrical system Working device system voltage |
12 V |
|
Electrical system Model of storage battery |
Chassis: 12V-70A.H (2 pieces connected in parallel) |
|
High-pressure cleaning system Type |
Plunger type |
|
High-pressure cleaning system Model |
Italian Pratissoli KEB36R |
|
High-pressure cleaning system Rated pressure |
10 MPa |
|
High-pressure cleaning system working pressure |
9 MPa |
|
High-pressure cleaning system Rated flow |
80 L/min |
|
High-pressure cleaning system Rated speed |
1150 L/min |
|
High-pressure cleaning system Type of water
valve |
High-pressure stainless-steel ball valve, 10 MPa |
|
High-pressure cleaning system Control mode |
Oil cylinder drive, electrical control |
|
High-pressure cleaning system Type of nozzle of
water spray rod |
High-pressure washing type |
|
Sweeping system Speed of sweeping plate |
Φ850mm |
