XCMG 5 ton 6200L Road Sprinkler Sweeping Truck XZJ5100TXSQ5 Sanitation Machinery price
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):7130*2200*2720mm
- Weight:10055kg
- Model Number:XZJ5100TXSQ5
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Water tank capacity:6200L
- Sweep width:≥3.2m
- Working speed:3~20 km/h
Specifications
- Weight:10055.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

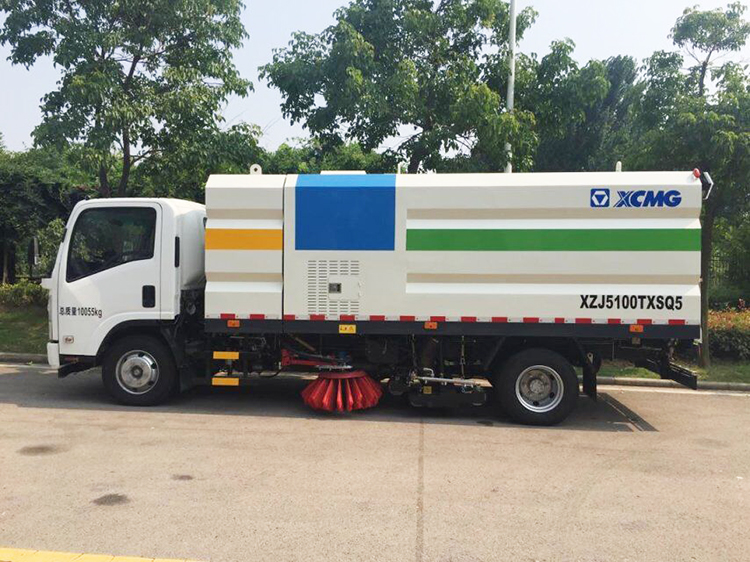

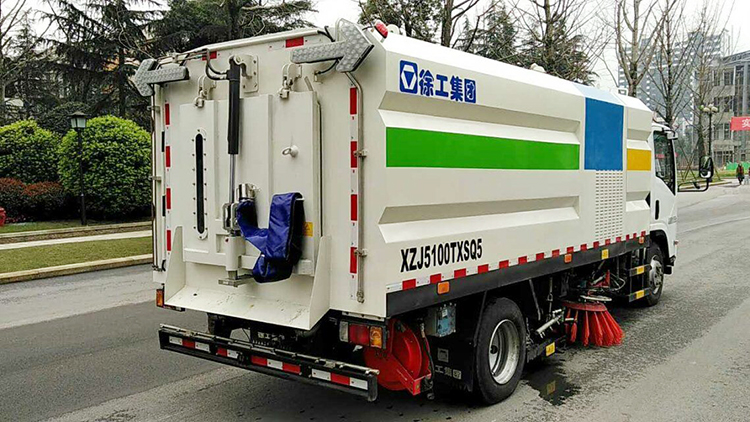

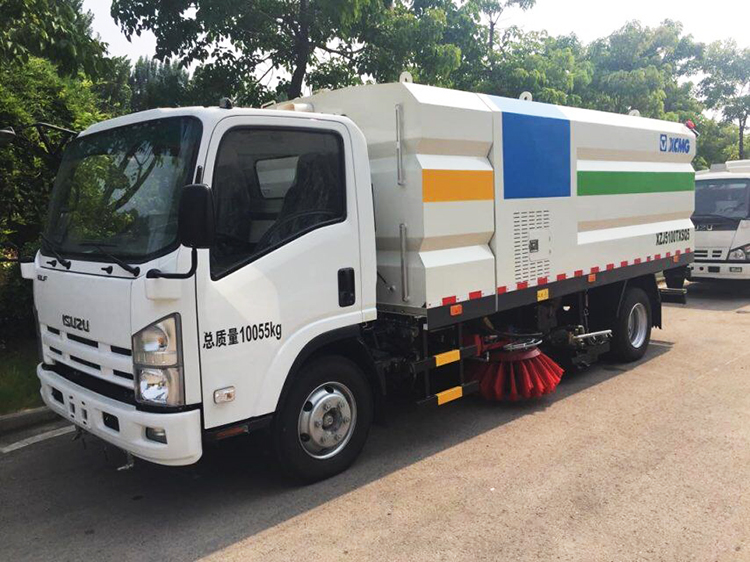

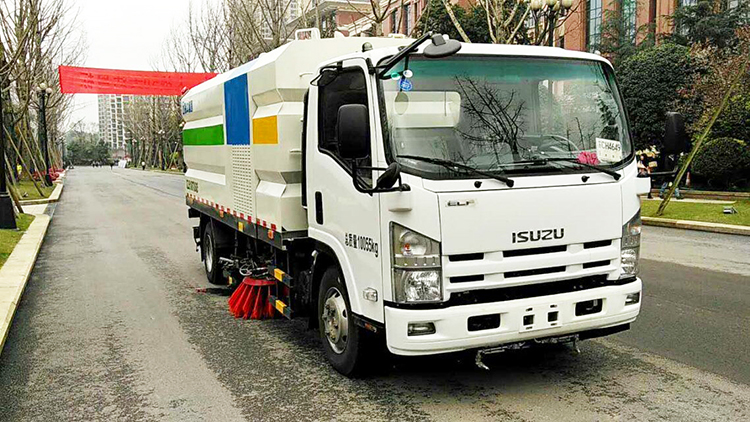

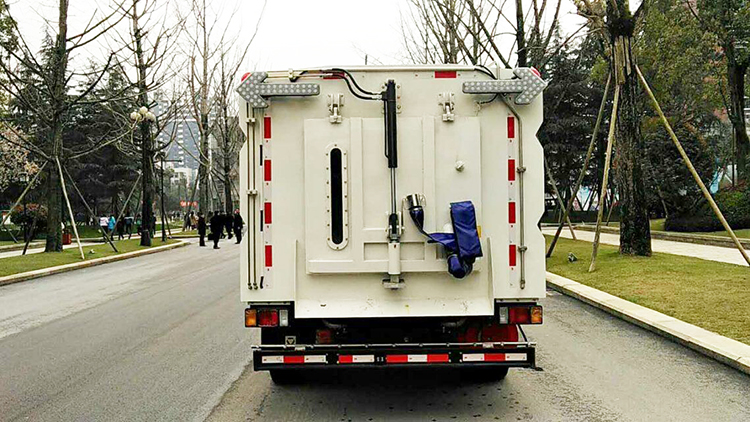

5 ton 6200L Road Sprinkler-Sweeping Truck XZJ5100TXSQ5
Sanitation Machinery.
1.
Beautiful and practical Carriage Design
*
Under the premise of meeting the requirements of the use and strength, it
overall employs SUS304 single-layer stainless steel production with the
advantage of simplicity and practicality and with good technology. Besides,
trash integrates water tank so as to increase the volume of water and bring
mass production and processing.
*
Trash can be set up within the anti-overflow alarm device and high-pressure
spray cleaning device. When it operates, the anti-overflow alarm device can
prevent the sewage from the straw, which can avoid resulting in secondary
pollution. Furthermore, after dumping garbage, the high-pressure spray cleaning
device can automatically clean the tank, greatly reducing the operators’ labor
intensity.
2.
Cleaning Mechanism with Self-adaptive Control
*
Ground pressure of side washing system employs spring as adjustment mode which
could adjust the ground pressure at any time according to the road conditions during
work to reduce the washing wear. In order to reduce the washing wear, ground
pressure of side washing system employs spring as adjustment mode which could
adjust the ground pressure at any time according to the road conditions during
work.
*
In order to solve the problems on sweeper brushes’ obstacles-free, one end of
the supporting oil cylinder employs connected shackle to keep oil cylinder
floating. When the sweeper brushes encounters obstacles, it has the function of
automatic collision avoidance.
3.
Highly Efficient Duct System
Duct
system is the basis of pneumatic transmission of sweeper-washer vehicle and it
includes suction nozzles, carriage channels and fans. The total three key parts
decide the suction force, air loss, systematic power and etc. And they are the
core parts in the design of sweeper-washer vehicle.
|
Items |
XZJ5100TXSQ5 |
|
|
Chassis parameters |
Model |
QL1100A8LAY(Statev) |
|
Engine model |
4HK1-TC51 |
|
|
Engine Power |
141kW/2600r/min |
|
|
Wheelbase |
4175mm |
|
|
Assistant engine |
Model |
JE493ZG5 |
|
Power |
64kW/3000r/min |
|
|
Vehicle parameters |
Max. total weight |
10055kg |
|
Dimensions(L x W x H) |
7130×2200×2720mm |
|
|
Curb weight |
7300 Kg |
|
|
Garbage parameters |
Water tank volume |
6.2m³ |
|
Effective Garbage volume |
≥3.5 m³ |
|
|
Max. Lifting angle |
≥45 |
|
|
Suction nozzle |
Suction diameter |
180mm |
|
Work ground clearance |
5~10mm |
|
|
Working Performance |
washing width |
≥3.2m |
|
Washing speed |
3~20 km/h |
|
|
Max. sweeping capacity |
64000/h |
|
|
Max. inhalation size |
120 mm |
|
|
Sweeping diameter |
Φ900mm |
|
|
Driving performance |
Max. climbing angle |
30% |
|
Min. turning diameter |
≤16m |
|
|
Maximum speed |
110 km/h |
|
|
Dimensions |
Front wheel |
1680mm |
|
Rear wheel |
1650mm |
|
|
Approach angle |
17 |
|
|
Departure angle |
14 |
|
|
Min. ground clearance |
150mm |
|
|
Hydraulic system |
Type |
Open electrical control |
|
Main components |
Gear pump, oil motor, hydraulic cylinder, solenoid
valve |
|
|
System pressure |
14MPa |
|
|
Hydraulic tank capacity |
60L |
|
|
Oil temperature |
60 degrees Celsius |
|
|
Electric System |
Type |
DC24V,PLC programming control system |
|
Voltage |
Chassis: 24v |
|
|
Working device: 12v |
||
|
Battery |
Chassis: 12v-70A.H (2 in parallel) Work device:
12v-80A.H (1 only) |
|
|
High pressure water system |
Type |
Plunger pump |
|
model |
Italy KEB36R |
|
|
greatest pressure |
10MPa |
|
|
Rotating speed |
1150r/min |
|
|
Water valve type |
Hydraulic high-pressure ball valve |
|
|
Water valve pressure |
6MPa |
|
|
Nozzle type |
High pressure washing type |
|
|
Water filter |
Filter type |
|
