Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):8968×4400×22180
- Weight:78000kg
- Power(W):242kW
- Voltage:220V/380V
- Model Number:XR220D
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Electric
- Type:Rotary Drilling Rig
Specifications
- Weight:78000.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

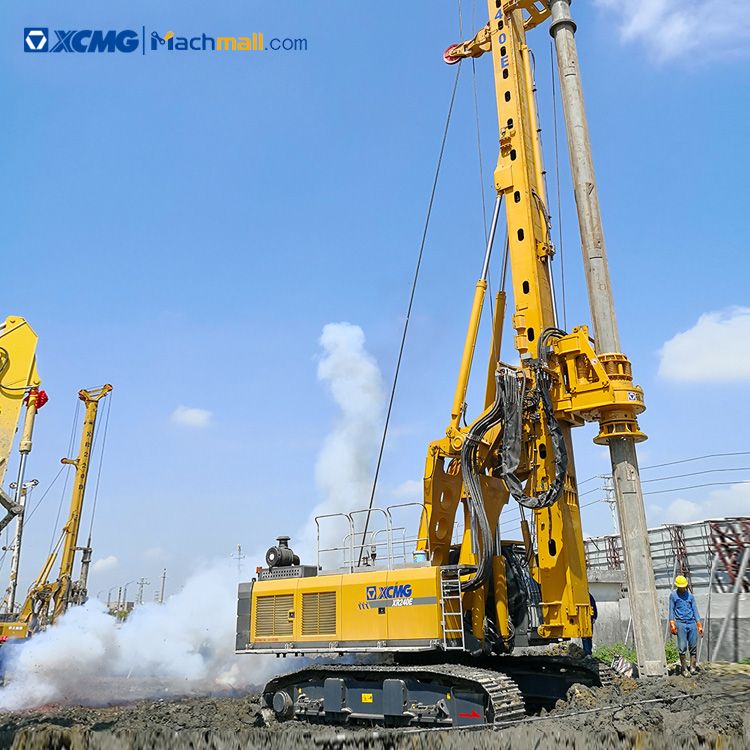

XCMG Brand New XR220D Crawler Rotary Drilling Rig.

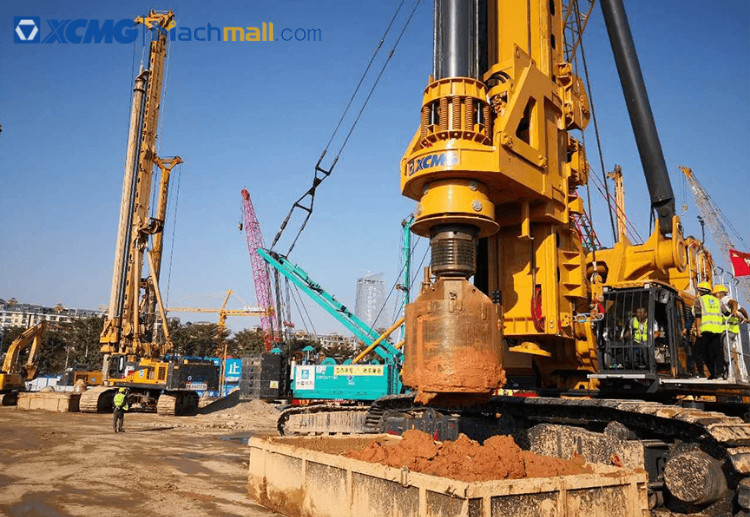

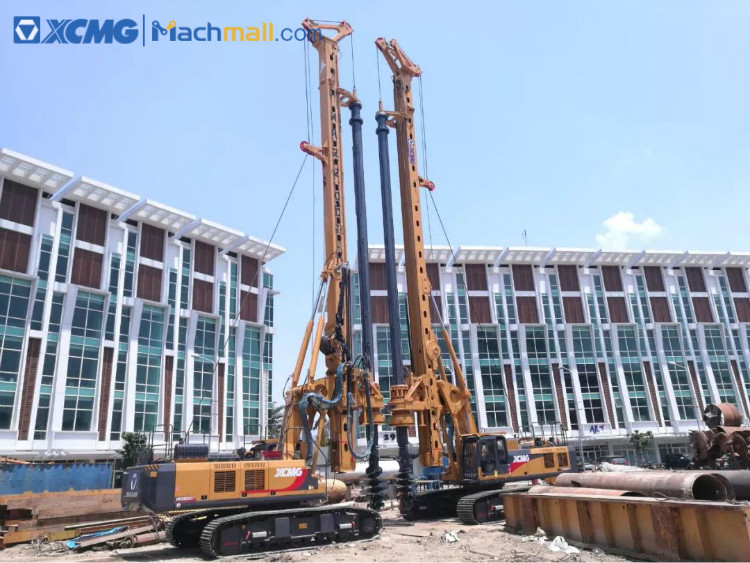

XCMG XR220D Rotary Drilling Rig widely used in boring operation of bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks and high-rise buildings.
Technical Characteristics:
1.The machine adapt single row rope for main winch to figure out the wear of steel rope. and extend the life-span.
2.With infrared camera for observing main winch, Manipulator can observe the state of steel rope at day and night in cab.
3.Optional configuration according to customers' requirement Excellent expansibility.
4.dopting the imported supercharged CUMMINS engine with European III effluent standard. Meet environmental rotection and energy conservation.
5.With the hydraulic pressure system adopted threshold power control and positive flow control, the system acquired high efficiency and higher energy conservation.
6.The patented parallelogram articulated structure actualizes a wider work range. The highly strengthened box-type steel structure design makes the mast of highly-rigidity and anticontored, therefore the drill accuracy is heightened.
7.The complete machine has passed CE certification of TuV Rheinland group.
8.Standard centralized lubricating system, allowing easier maintenance.
|
Description |
|
Unit |
Parameter value |
|
Max. drilling diameter |
|
mm |
Æ2000 |
|
Max. drilling depth |
|
m |
67,standard configuration |
|
|
|
|
(5-section friction Kelly bar) |
|
|
|
|
52,optional configuration |
|
|
|
|
(4-section-locking Kelly bar) |
|
Allowable luffing scope (from center of drill rod to slewing center) |
|
mm |
3905~4800 |
|
Drilling rig dimension in working condition (L × W × H) |
|
mm |
8968×4400×22180 |
|

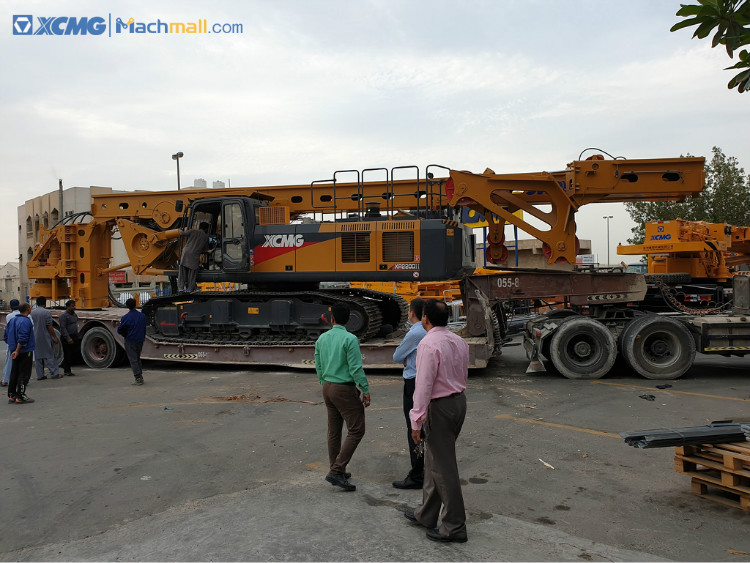

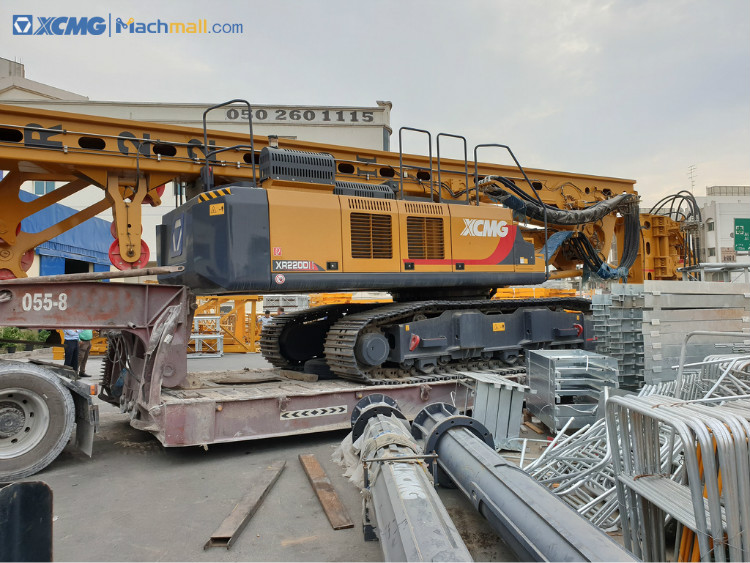

Drilling rig dimension in transport condition (L × W × H) |
|
mm |
16360×3250×3535 |
|
Weight of overall unit (standard configuration, excluding drilling tool) |
|
t |
76 |
|
Engine |
Model |
|
QSL-325 |
|
|
Rated power/speed |
kW |
242/(2200r/min) |
|
Max. working pressure of hydraulic system |
|
MPa |
35 |
|
Rotary drive |
Max. torque |
kN •m |
220 |
|
|
Rotational speed(Standard configuration) |
r/min |
7~25 |
|
Crowd cylinder |
Max. Pushing force |
kN |
200 |
|
|
Max. Pulling force |
kN |
200 |
|
|
Max. stroke |
mm |
5000 |
|
Main winch |
Max. pulling force |
kN |
230 |
|
|
Max. single-rope speed |
m/min |
70 |
|
|
Diameter of the steel wire rope |
mm |
30 |
|
Auxiliary winch |
Max. pulling force |
kN |
80 |
|
|
Max. single-rope speed |
m/min |
60 |
|
|
Diameter of the steel wire rope |
mm |
20 |
|
Drilling mast |
Left/right inclination of mast |
° |
44290 |
|
|
Front/back inclination of mast |
° |
44331 |
|
Rotary table slewing angle |
|
° |
360 |
|
Traveling |
Max. traveling speed of the overall unit |
km/h |
1.5 |
|
|
Max. climbable gradient of the overall unit |
% |
35 |
|
Crawler |
Width of crawler plate |
mm |
800 |
|
|
External width of crawler (min.-max.) |
mm |
3250~4400 |
|
|
Center distance between two longitudinal wheels of crawler |
mm |
4750 |
|
|
Average ground pressure |
kPa |
108 |
