XCMG 10m Hydraulic Platform XG1008HD Mobile Lifting Work Platform Equipment, MACHMALL

Engineering & Construction Machinery > Aerial Working Equipment > Scissor Lift

XCMG 10m Hydraulic Platform XG1008HD Mobile Lifting Work Platform Equipment

View All >

Model： XG1008HD

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG 10m Hydraulic Platform XG1008HD Mobile Lifting Work Platform Equipment

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XG1008HD

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Weight

Overall Dimension

Table Size

Max Lifting Height

Min Lifting Height

Rated Loading Capacity

Power

Lift Drive / Actuation

Lift Mechanism

Model Number

Brand Name

Place of Origin

Certification

Engineering & Construction Machinery

XG1008HD

2150kg

2477*810*2335mm

2270*810mm

10m

1.2m

230kg

3.3kW

Hydraulic

Scissor Lift

XG1008HD

XCMG

Xuzhou, Jiangsu, China

CE/ISO9001

+ Add a Product

Summary

Weight:2150kg
Overall Dimension:2477*810*2335mm
Table Size:2270*810mm
Max Lifting Height:10m
Min Lifting Height:1.2m
Rated Loading Capacity:230kg
Power: 3.3kW
Lift Drive / Actuation:Hydraulic
Lift Mechanism:Scissor Lift
Model Number:XG1008HD
Brand Name:XCMG
Place of Origin:Xuzhou, Jiangsu, China
Certification:CE/ISO9001

Specifications

Weight:2150.000kg
Condition:New
Moving Type:Other

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

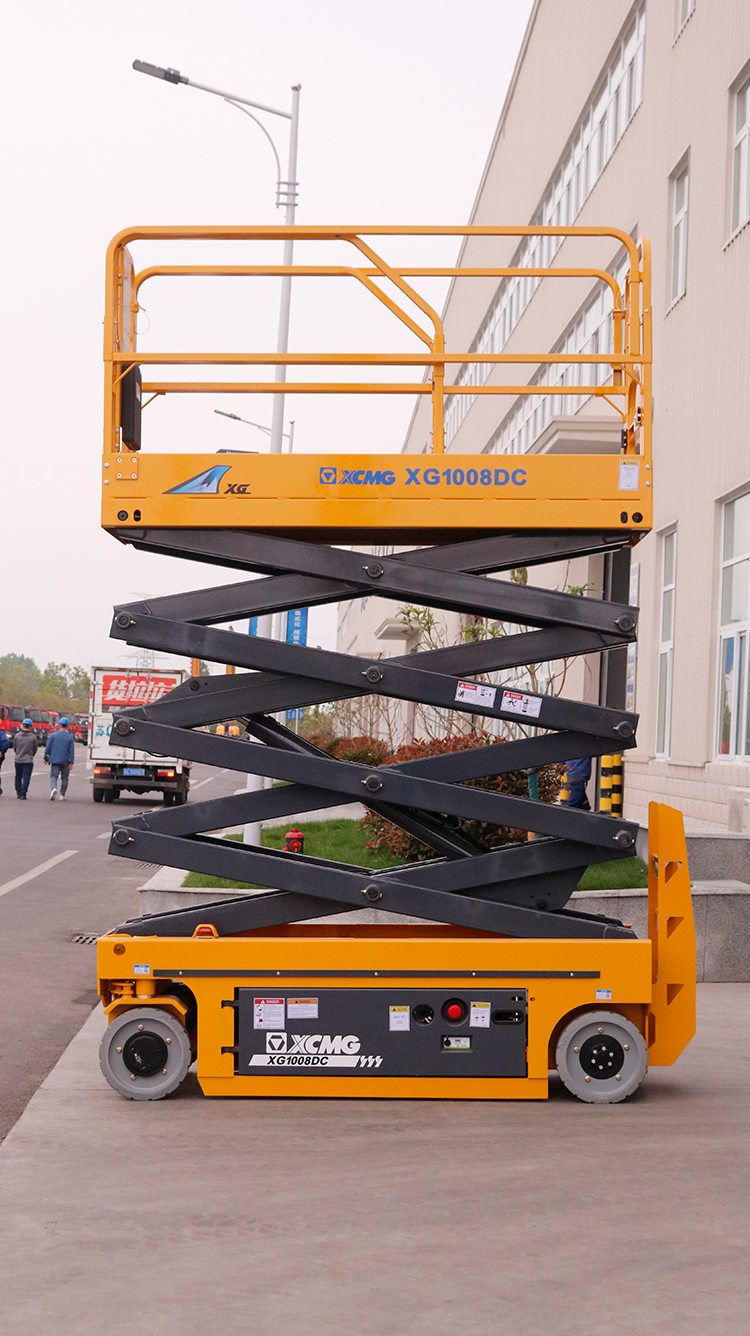

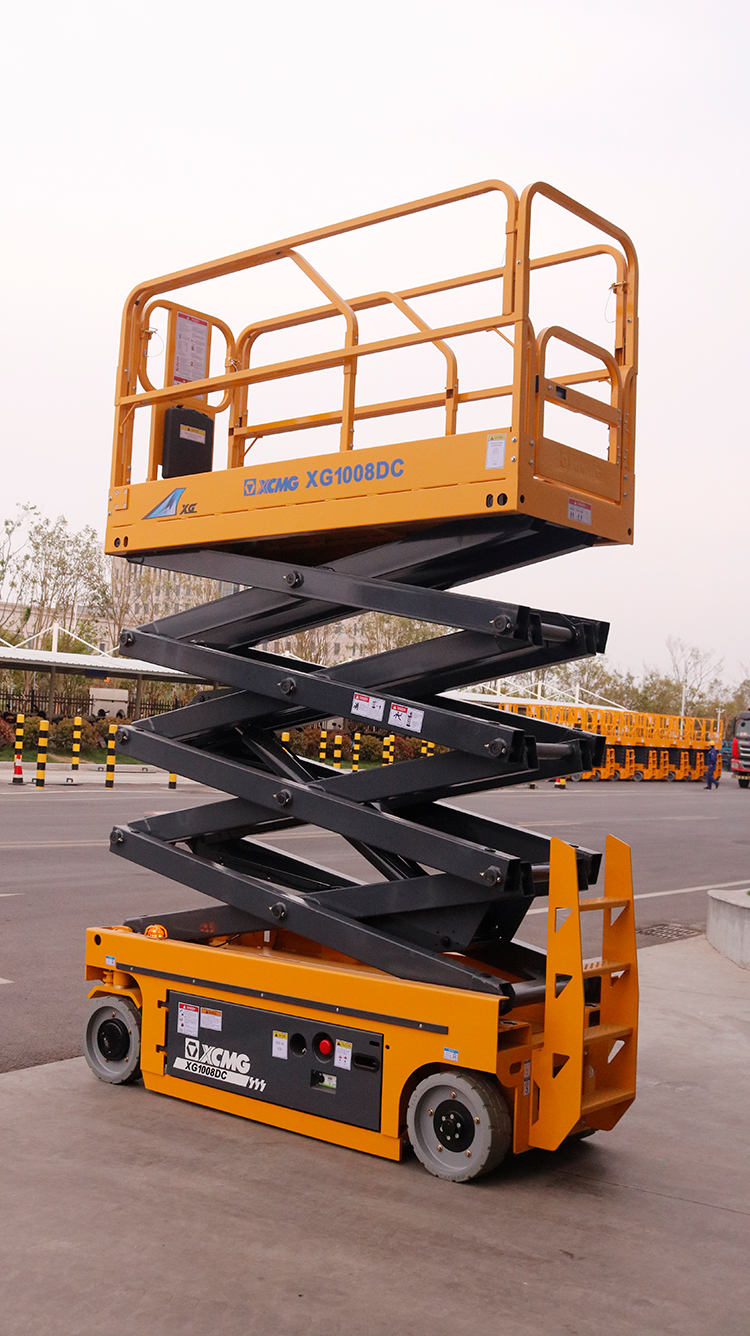

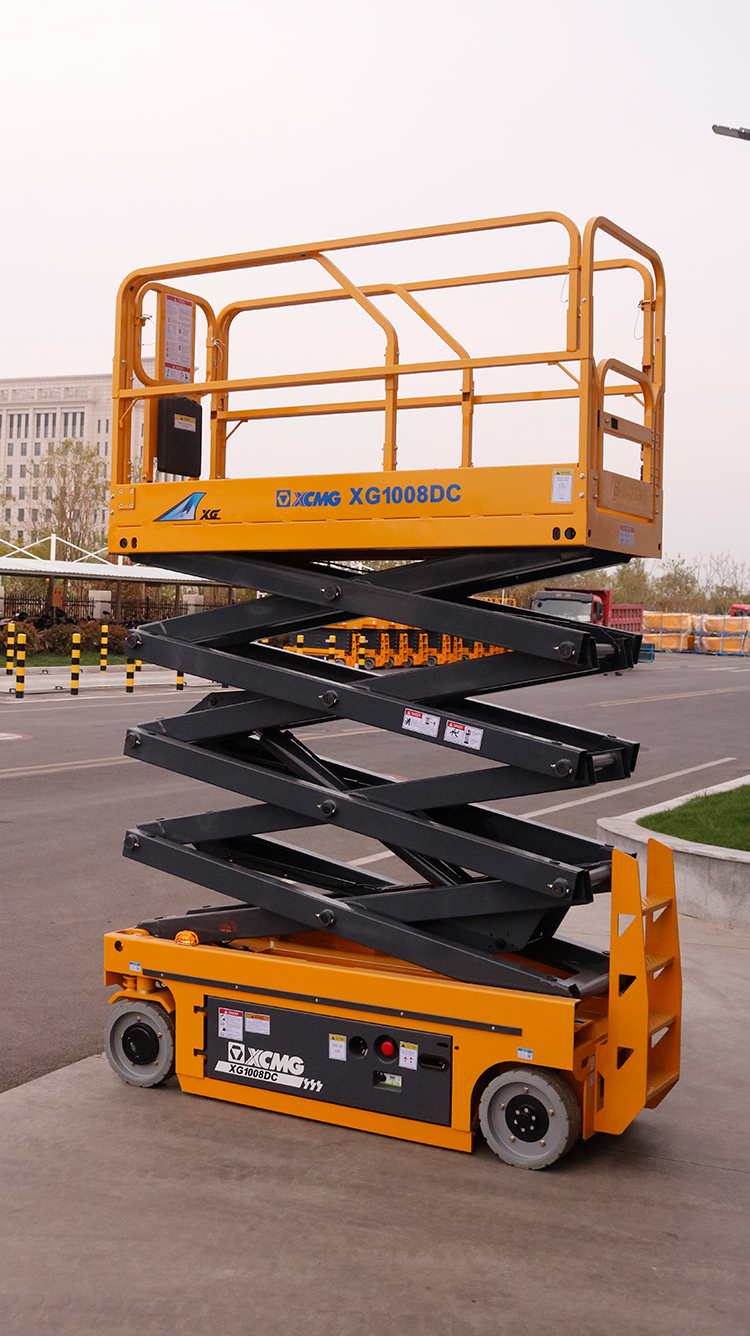

XCMG 10m Hydraulic Platform XG1008HD Mobile Lifting Work Platform Equipment

10m hydraulic platform XG1008HD XCMG aerial platform.

XCMG aerial platform XG1008HD developed by XCMG has the work height at 10m, the vehicle width at 0.83m, the rated load at 230kg, max. platform length at 3.2m and max. gradeability at 25%.

This XCMG aerial platform XG1008HD features compact structure, advanced performance, completed safety devices, especially suitable for construction. In addition, it is free of any pollution, with steady lifting / lowering, easy control and maintenance.

Therefore, this kind of XCMG aerial platform are widely applied to warehouses, factories, airports, and train stations, especially the narrow work sites.

Advantages and features:

1.XCMG aerial platform XG1008HD effective and energy-saving electric-drive system features zero emission and low noise, enabling this machine easily to work in enclosed environments.

2.Feature the humanized design and the rich options, meeting the customer needing for safety, reliability and intelligence.

3.Narrow- structure design enables the complete vehicle to easily pass through a single gateway.

4.Ffoldable fence could make the transportation easier.

5."Zero Turning Radius "is unique and enable machine to corner in narrow room.

6.XCMG aerial platform XG1008HD max. payload at 230kg, leading the industry. Maximum traveling speed 3.5km/h and 25% gradeability make the driving easier.

Item	Unit	Parameter
Dimension of machine Length (without ladder)	mm	2477 (2280)
Dimension of machine Width	mm	830
Dimension of machine Height (platform folded)	mm	2335 (2005)
Wheelbase	mm	1877
Wheel track	mm	689
Min. ground clearance	mm	100/20
Dimension of working platform Length	mm	2270
Dimension of working platform Width	mm	810
Dimension of working platform Height	mm	1246
Dimension of working platform Extension length of the auxiliary platform	mm	900
Centroid position of machine Horizontal distance to front shaft	mm	927
Centroid position of machine Height of centroid	mm	475
Total mass of machine	kg	2150
Max. height of platform	m	8
Min. height of platform	m	1.2
Max. working height	m	10
Min. turning radius (inner wheel/outer wheel)	m	0/2.3
Rated load	kg	230
Payload of extended platform	kg	115
Drive speed(lowered)	km/h	≥3.5
Drive speed(elevated)	km/h	≥0.8
Max. gradeability	%	25
Tilt warning angle (side/forward and backward)	°	1.5/3
Lifting/traveling motor Model	-	-
Lifting/traveling motor Rated power	kW	3.3
Lifting/traveling motor Manufacturer	-	-
Battery Model	-	T105/DT106
Battery Voltage	v	24
Battery Capacity	Ah	225
Battery Manufacturer	-	Trojan/Leoch
Tire models	-	Traceless and solid /381×127
