Scissor Lift

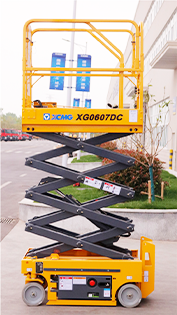

XG0607DC(Max height 6m)
Scissor Lift
- Working platform dimension: 1440*760*2020mm
- Dimension of working platform length: 1290mm
- Total mass: 920kg
- Platform capacity: 230kg
- battery specification: 2*12V/85Ah
- Max. working height: 5.6m
- Max. platform height: 3.6m
Application
This kind of platforms are widely applied to warehouses,
factories, airports, and train stations, especially the narrow
work sites.
Highlights
This vehicle features compact structure, advanced perfor-
mance, completed safety devices, specially suitable for
construction
It is free of any pollution, with steady lifting / lowering, easy control and maintenance.
It is free of any pollution, with steady lifting / lowering, easy control and maintenance.
XG0807DC(Max height 8m)
Scissor Lift
- Working platform dimension: 1900*830*2160mm
- Dimension of working platform length: 1670*740*1235mm
- Total mass: 1580kg
- Platform capacity: 230kg
- battery specification: 4*6V/225Ah
- Max. working height: 7.8m
- Max. platform height: 5.8m
Application
Narrow- structure design enables the complete vehicle
to easily pass through a single gateway; foldable fence
could make the transportation easier
Highlights
"Zero Turning Radius "is unique and enable machine to
corner in narrow room.
Max. payload at 230kg, leading the industry. Maximum traveling speed 4km/h and 25% gradeability make the driving easier.
Max. payload at 230kg, leading the industry. Maximum traveling speed 4km/h and 25% gradeability make the driving easier.
Articulating boom lift

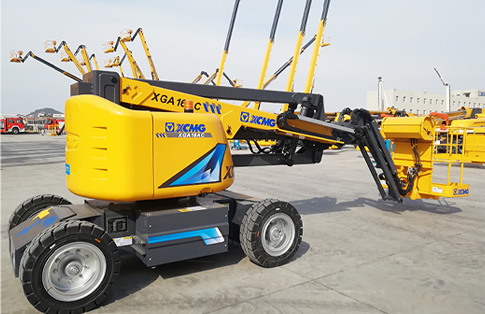

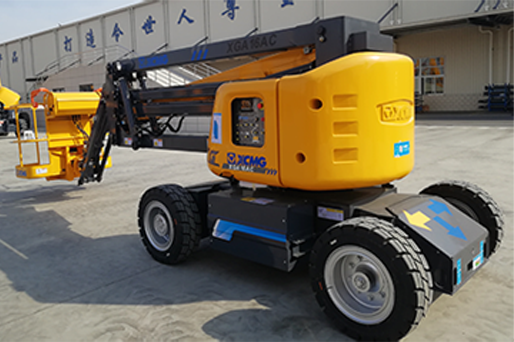

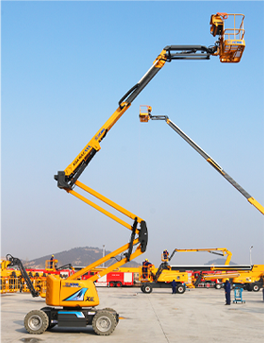

XGA16AC(Max height 16m)
Articulating boom lift
- overall dimensions: 6420mm
- Max, working height: 15.8m
- max. working range: 8m
- platform dimensions: 700*1400*1150mm
- total mass of machine: 16500kg
- tire specification: 250-15
Application
Environment friendly, zero emission, low noise, traceless
traveling, suitable for indoor construction.
Highlights
Intelligent and perfect control system features the
humanized layout, the maintenance-free design and
easy use and maintenance, providing the multiple
options and comprehensive safety.
