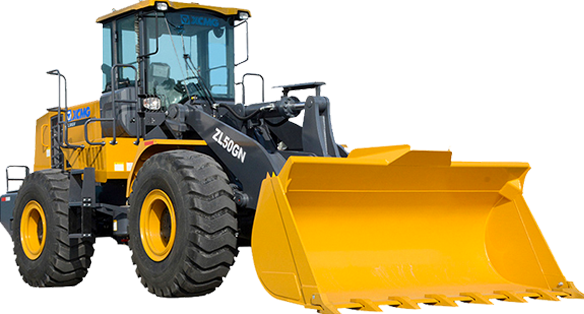

ZL50GN
PARAMETERS
Operating Weight: 17,500kg
Dimensions : 8,165mmx3,016mmx3,485mm
Rated Load: 5,000KG
Bucket Capacity: 2.5~4.5m³
Engine: Cummins, Weichai, Shangchai
Transmission Gearbox：XCMG，ZF（Germany）
APPLICATION
Used for port, mining, engineering, logistics, etc.
HIGHLIGHTS
The ultra-long wheelbase of 3,300mm delivers the leading
performance and stability.160kN breakout force handle all
kinds of materials with ease,≥3.5m high dumping capacity
handle the severe conditions with ease.
PARAMETERS
Operating Weight:10600kg
Dimensions:7,050mm×2,482mm×3,118mm
Rated Load:3,000kg
Bucket Capacity:1.5~2.5m³
Engine: WEICHAI
Transmission Gearbox：XCMG
APPLICATION
Light materials such as earth moving
HIGHLIGHTS
The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.
The bucket is made of high strength material to realize high wear and impact resistance.

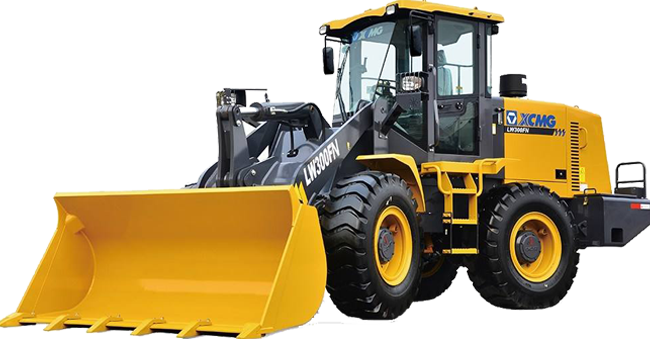

LW300FN

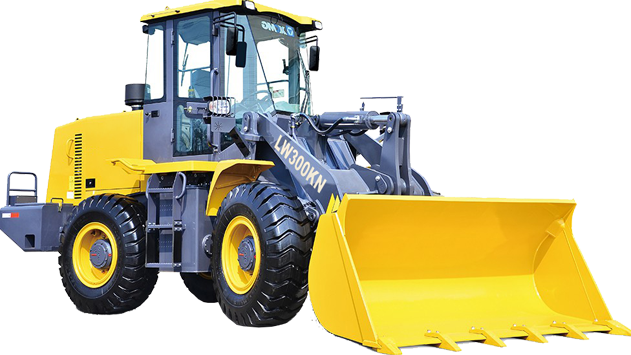

LW300KN
PARAMETERS
Operating Weight:10,900KG
Dimensions:7,245mm×2,482mm×3,320mm
Rated Load:3,000kg
Bucket Capacity:1.5~2.5m³
Engine: WEICHAI
Transmission Gearbox:XCMG
APPLICATION
Heavy materials such as rocks.
HIGHLIGHTS
LW300KN is a classic high-end loader from XCMG, which is famous for its superior performance and adaptability.
PARAMETERS
Operating Weight:20,000kg
Dimensions:8,505mm×3,220mm×3,515mm
Rated Load:6,000kg
Bucket Capacity:3.0～4.5m³
Engine:SHANGCHAI
Transmission Gearbox:XCMG
APPLICATION
Energy & Mining etc,Construction works
HIGHLIGHTS
The high-efficiency electronic control counter shaft transmission matches perfectly with the engine.
The three-stage air filter is designed especially for severe working environment of construction machinery industry.

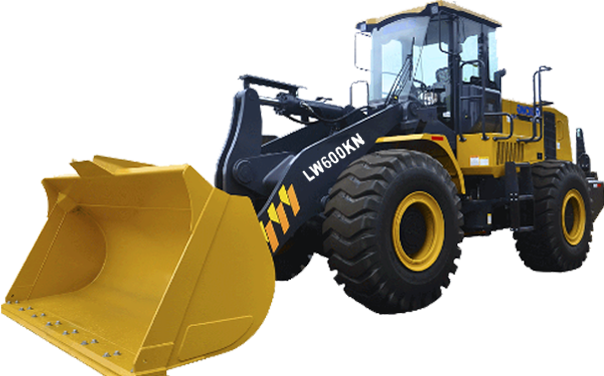

LW600KN

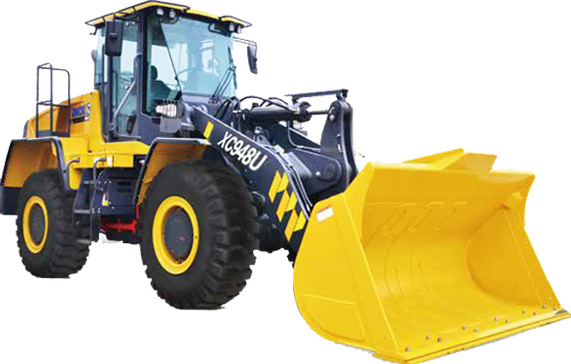

XC948U
PARAMETERS
Operating Weight:16,500kg
Dimensions:7,882mm×2,550×3,405mm
Rated Load:4,500kg
Bucket Capacity:2.4m³
Engine:Cummins
Transmission Gearbox：XCMG,ZF（Germany）
APPLICATION
Used for various construction projects, gravel gravel plants and municipal construction
HIGHLIGHTS
XC948U are developed by XCMG for North American market integrating advanced design idea.It is powerful,
rugged, energy efficient, safe and comfortable, and easy to maintain.
XCMG Brand Advantage
Local service :Implementation of"service throughout full life cycle" brings about trouble-free lifetime experience! Marketing
service network spread around the world covers extensive areas.
Manufacturer and first hand price.
Multi-acessories and multi-function.
Meet the needs of customization, leading global R&D and production capacity of loaders.
